|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Application:||Tablet Press||Apply To Shape:||Round,square,or Special-shaped|
|Working Pressure:||≤500T||Filling Depth:||≤400mm|
|Product Name:||Ceramic Press Machine||Product Mold:||Multi-cavity Mould|
|Standard:||BV||Type:||Hydraulic Tablet Press|
hydraulic press equipment,
multi punch tablet machine
Coconut Coir Peat Making Machine for Coco Peat Multiuse Coco Coir Pith Artificial Soil Coco Coir Pith
Application of Coco Peat
By Hydraulic Tablet Press Machine!!

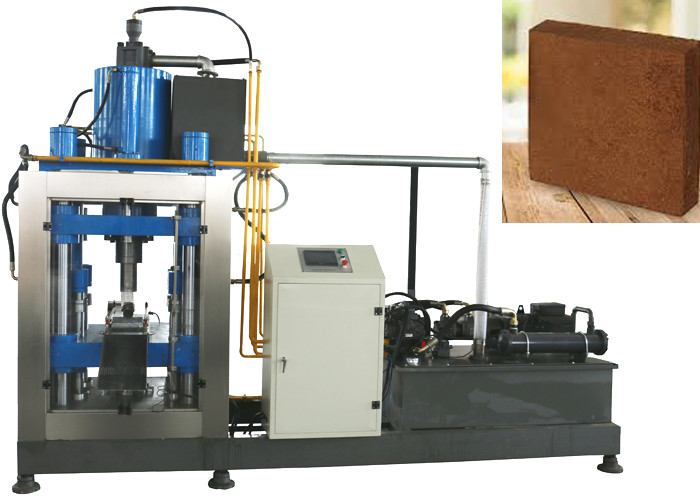

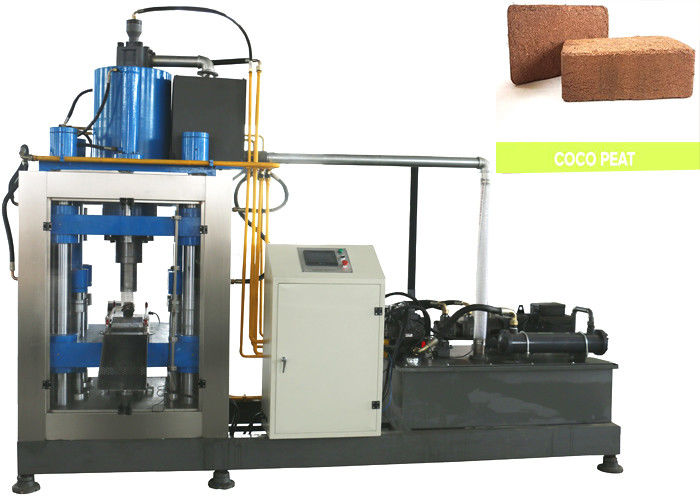

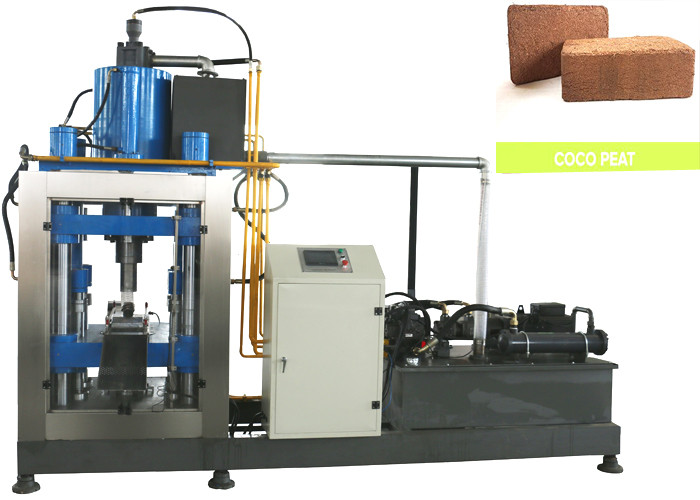

Our automatic hydraulic press machine are widely used for pressing any powder and granulate into block/tablet. It is a kind large hydraulic tablet press of four column structure, and it can achieve the press of Multi-cavity molds, pressure-holding function, which actively increase the production capacity.
They have been used in following field.
Automatic hydraulic tablet presses'hydraulic system are in SSAN brand from Taiwan, electronic control system uses PLC and HMI(Human Machine Interaction).
Technology and Advantage:
Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.
Uniform density of the compressed tablet can be ensured through special technology.
Different layer different color:
Can compress the tablet with different layers and different colors.
Multiple Production Capacity:
Production capacity can be raised many times under certain conditions.
If some abnormal condition occurs,it will stop immediately and minimize its negative effects.
Technical Parameters of Hydraulic Tablet Press Machine
|Production Capacity||2-4molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤500T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤600mm,down strokes≤400mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤400mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||30kw 45kw(Servo)|
|Weight&Size||Approximately: 12000kg 3200mm*1200mm*2800mm(L*W*H)|
More Details of Hydraulic Tablet Press Machine:
1. The tablet press machin conforms with GMP standard. And it is easy to get the light demolition, internal cleaning convenience purposes.
2. Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components.
3. All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately.
4. The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free, easy release the heat and the control panel can be design to demonstrate in different foreign languages.
1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase a suitable machine.
3. A warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
B. We will design, customize and make dies for you.
1. All the machines will be adjusted and tested before shipping. Installing, debugging and training to workers are all offered, after customers receiving our tablet press machine
