|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Material:||Stainless Steel||Operation:||Automatic Operation|
|Product Name:||Camphor Tablet Making Machine||Application:||Wax Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
kapoor tablet making machine,
fully automatic camphor making machine
Fast Speed Automatic Tablet Making Machine Dust Emission Avoid Cost Effective
|Production Capacity||5-7molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤60T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||7. 5kw 11kw(Servo)|
1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.
2. Do not use the wet materials in order to avoid destroying machine.
3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.
4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.
5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts.

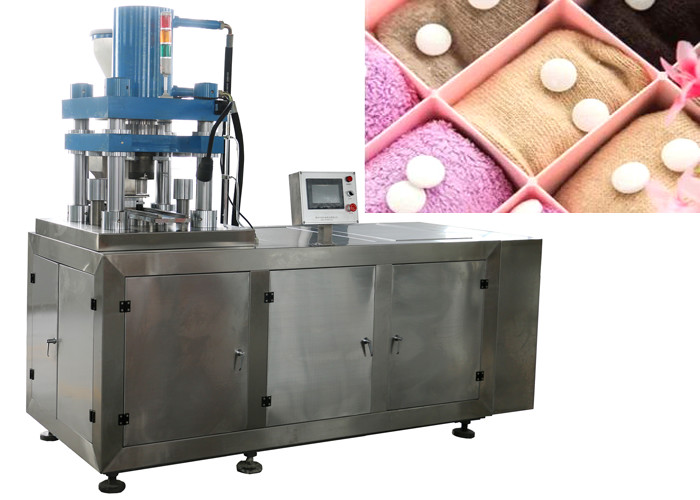

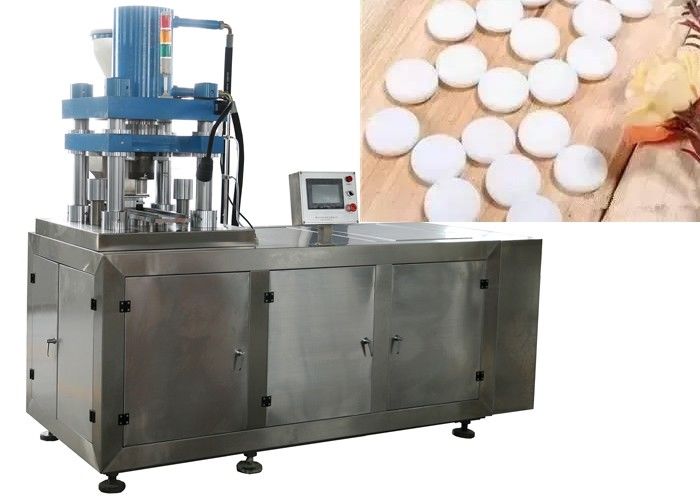

Hydraulic machine is our factory newly developed automatic tablet press machine,which can compress granular, powder-like material into a variety of general and special-shaped pieces. It is suitable for large-scale repression of products which require high-density, while a multi-chip module can be used for large-scale production industries, equipment, high precision, easy to learn mold replacement and installation. High degree of automation. All actions by the microcomputer PLC control, continuous automatic. Can be properly adjusted to suppress the time, pressure, product thickness. Our company has been engaged in the research,development and manufacture of non-standard tablet press machine. Our tablet press machine have broad scope of application. At the same time, offer molding manufacturing service. We have accumulated a lot of material tablet compressing experience. Besides offering tablet press machine and mould, we also can give some technical support on tablet press machine & mould for customers.
Tablet Press Machine Applications:
