Fully CNC Control Karpur Making Machine , Single Punch Tablet Making Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS-100T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Product Mold: Multi-cavity Mould Application: Tablet Press
Standard: BV Apply To Shape: Round,square,or Special-shaped
Working Pressure: ≤100T Filling Depth: ≤150mm
Product Name: Camphor Tablet Making Machine Type: Hydraulic Tablet Press
High Light:

fully automatic camphor making machine


camphor making machine

Product Description

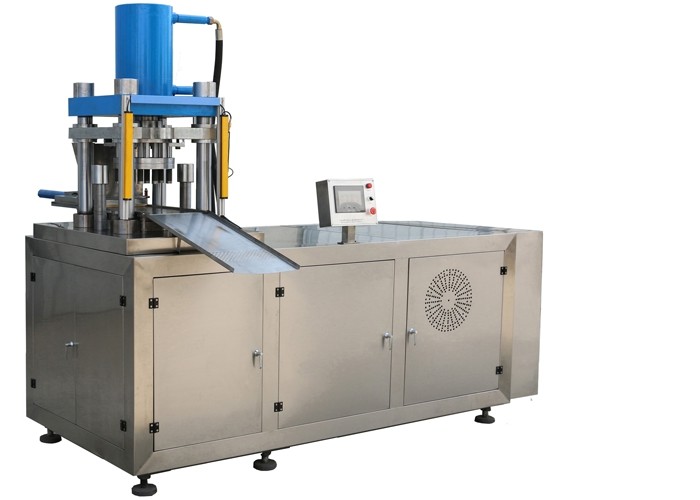

Fully CNC Control Karpur Making Machine , Single Punch Tablet Making Machine 0

Fully CNC Control Karpur Making Machine , Single Punch Tablet Making Machine


  • Eco Friendly: less smoke, no pollution, fuel made out of Bio Mass and Agro Waste

  • Economical: Saves Time And Money.

  • Energy Save : Up to 70 % Cost Saving compared to conventional fuels likes gas, Diesel,.

  • Suitable for : Hotels, Restaurants, Hostels, Hospitals, Jails, Function Halls, Caterers, Sweet Shops, and Fast Food Centers for cooking and steam Generatio

Tablet press machine is continuous automatic, it is the pharmaceutical, chemical, food processing, electronics and other industrial department granular materials into one of the necessary equipment, it is suitable for small batch production, laboratory, hospital departments such as pressing tablets, catalyst, sugar tablets, calcium tablets, coffee, powder metallurgy, electronic components and various agricultural fertilizer agent, etc.It can suppress all kinds of special-shaped, ring tablet, and can suppress double-sided engraved with trademarks, text and simple graphics tablets, because of the pressure, strength, particularly suited to suppress difficult molding powder tablets, such as ceramic powder, metal powder, etc
(1). Excellent performance, strong adaptability, convenient operation.
(2). Machine has big pressure, could press big tablet, for small capacity.
(3). Material filling and depth adjusted.
(4). Machine could be operated by electricity and hands.
(5). Machine could press different tablet size and tablet shape by changing mould.

Tablet Press Machine Applications:

  1. Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
  2. Electronics Batteries: Thermistor, integrated circuit components, carboniferous brush films...
  3. Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets...
  4. Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...

Technical Parameters:

Production Capacity4-6molds/min(the actual speed according to product process requirement)
Working Pressure≤100T(1. step-less adjustment 2. can be bidirectional compress)
Working StrokeUp stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product MouldCustomized according to the tablet features(Multi-cavity Mould)
Apply to ShapeRound, square, or special-shaped(suitable for a variety of shapes)
Motor Power11kw 15kw(Servo)
Weight&SizeApproximately:3200kg 2500mm*1100mm*2300mm(L*W*H)

Quality Assurance
· We support SAMPLE making and testing with your raw material.
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Easily Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.

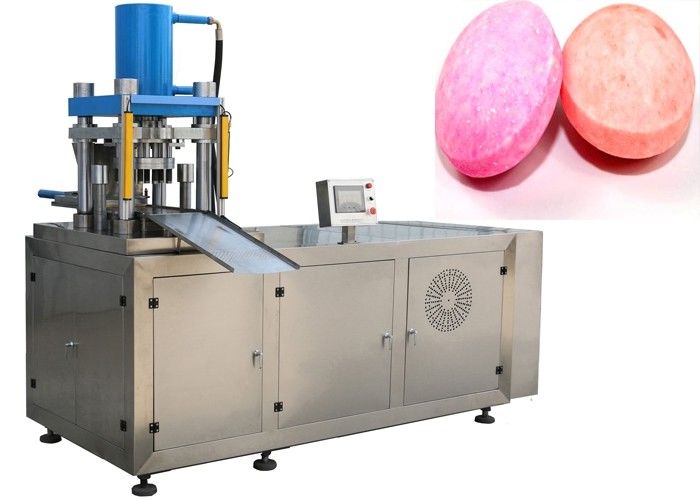

Fully CNC Control Karpur Making Machine , Single Punch Tablet Making Machine 1
