|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Working Pressure:||≤25T||Filling Depth:||150mm|

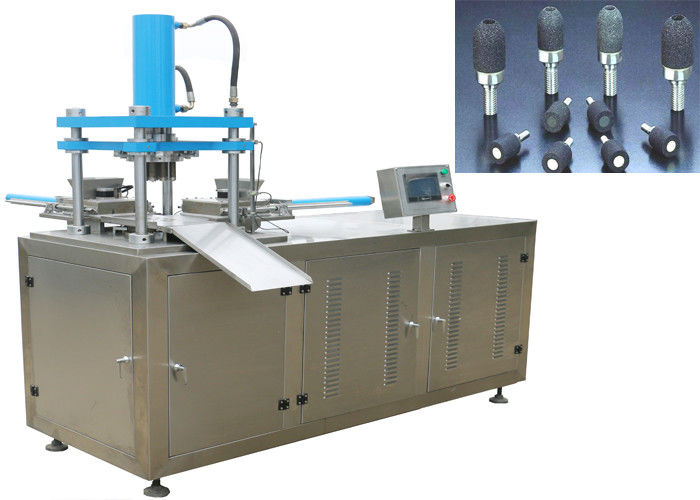

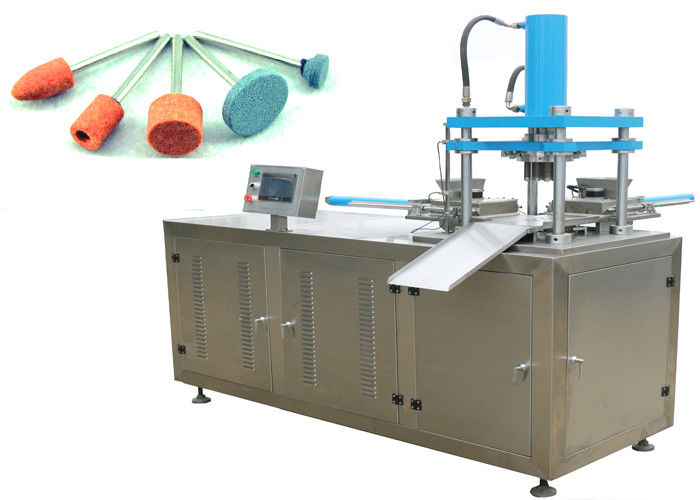

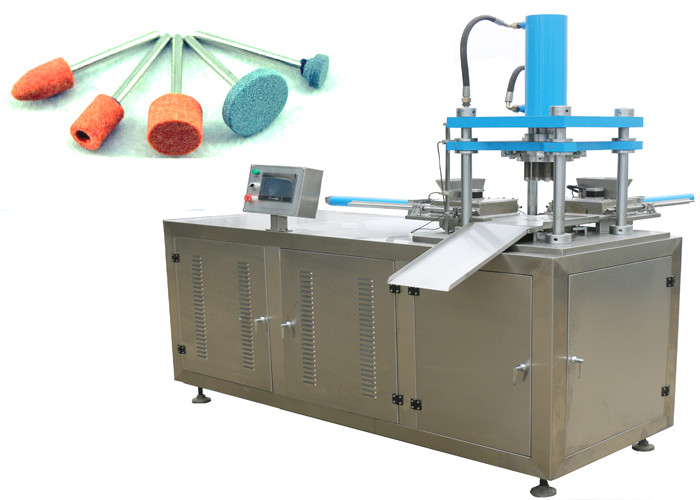

|Product Name:||Grinding Wheel Powder Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
cnc universal powder pressing machine,
powder compaction machine
Automatic Rotary Pill Tablet Press Machinery is designed for pressing round tablets from various kinds of granularmaterials. It is primary machine to fit batch production of tablets. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adiusted.
The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.
This ZP33 Automatic Rotary Pill Tablet Press Machinery has won the fine Qulity Product Prize awarded by China National Medical Management Bureau.
Small Automatic Rotary Tablet Press Machine is a single press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is used for small scale production.
1. The machine is compliance with the GMP requirement on the production of pharmaceuticals.
2. The compression parts is entirely separated from the driving mechanism.
3. The compression area is enclosed with transparent organic glass. To prevent contaminates. The compression area can be specially tre ated. All surface being smooth and easy to clean.
4. The mechanical buffer unit will prevent punches and apparatus from overload damage.
Brief Information About Our Tablet Press Machine:
This machine is designed for pressing tablets from various granular materials, which is used for pharmaceutical, chemical, food, hospital, science research institution is applicable to trial manufacturing in lab or produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape. It features a small desktop type press for motive and control sheeting. It can also be hand -operated easy to be operated and maintained ,small volume, light weight. one set of punch and de is mounted the depth of the filling material tablet press and thickness of the tablets can be adjusted high precision of filling, low-noise, low-consumption of material, and it works smoothly. The minimum consumption of lab material is just 200g.
1. The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the GMP requirement.
2. It has transparent windows, so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance are easier
3. The machine can press not only round tablets, but also different geometrical
shape tablets, double-layered and annular tablets; the tablets may have the impressed letters on both sides
4. All the controllers and devices are located in one side of the machine, so that it can be easier to operate
5. An overload unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs
6. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.
Tablet Press Machine Technology and Advantage:
* Demoulding Protection: Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.
* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.
* Different layer different color: Can compress the tablet with different layers and different colors.
* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.
* Safety Protection: If some abnormal condition occurs,it will stop immediately and minimize its negative effects.
|Production Capacity||4-6molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤25T(can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,Down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||5. 5kw 7. 5kw(Servo)|
We have a well-experienced team to manufacture tablet press machine and equipment and a professional design institute. With rich experiences in tablet block machinery and equipment field and numbers of professional engineers, we have designed and developed tablet block machinery in different tonnage.
Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
