|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Certification:||CE ISO9001||Product Name:||Automatic Tablet Press Machine|
|Application:||Tablet Press For Ceramic||Product Mold:||Multi-cavity Mould|
|Apply To Shape:||Round,square,or Special-shaped||Standard:||BV|
|Product Name:||Automatic Pill Making Machinery||Quality Control:||Test Before Delivery|
tablet compression machine,
automatic pill press machine

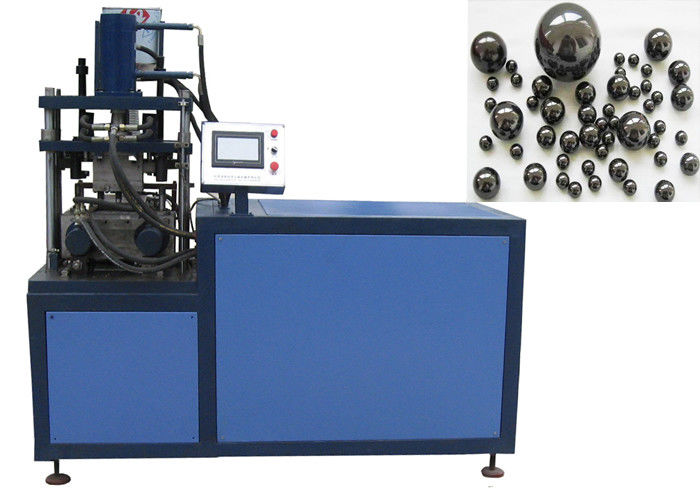

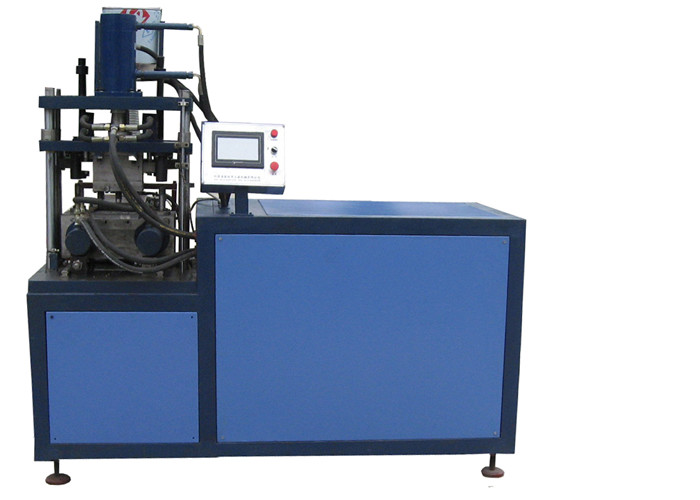

Non Leakage Electric Pill Press Machine , Hydraulic Press Machine, Table Press for Powder Forming
CE approved professional metal scrap press machine, belongs to hydraulic pressure type. It can be used to press various mineral powder, metal powder, pulverized coal, coke powder and other materials into different shape briquettes. The finished briquettes produced by E.P briquette machine have the characteristics of high density, high strength and high hardness. The roller of this metal scrap press machine is made of hard material, which gives it good resistance to abrasion, thus, imporving its service life.
1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.
2. Do not use the wet materials in order to avoid destroying machine.
3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.
4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.
5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts.
Hydraulic machine is our factory newly developed automatic tablet press machine,which can compress granular, powder-like material into a variety of general and special-shaped pieces. It is suitable for large-scale repression of products which require high-density, while a multi-chip module can be used for large-scale production industries, equipment, high precision, easy to learn mold replacement and installation. High degree of automation. All actions by the microcomputer PLC control, continuous automatic. Can be properly adjusted to suppress the time, pressure, product thickness. Our company has been engaged in the research,development and manufacture of non-standard tablet press machine. Our tablet press machine have broad scope of application. At the same time, offer molding manufacturing service. We have accumulated a lot of material tablet compressing experience. Besides offering tablet press machine and mould, we also can give some technical support on tablet press machine & mould for customers.
Fully CNC Control Design:
Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology
Fully Intelligent Operation Design:
Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.
Fully-automatic Material Filling Design:
The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor.
Isolated Hydraulic Station Design:
Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.
|Production Capacity||3-5molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤200T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||18. 5kw 22kw(Servo)|
Tablet Press Machine Applications:
