|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Product Name:||Veterinary Pharmaceutical Tablet Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
single punch tablet machine,
pill compressor machine

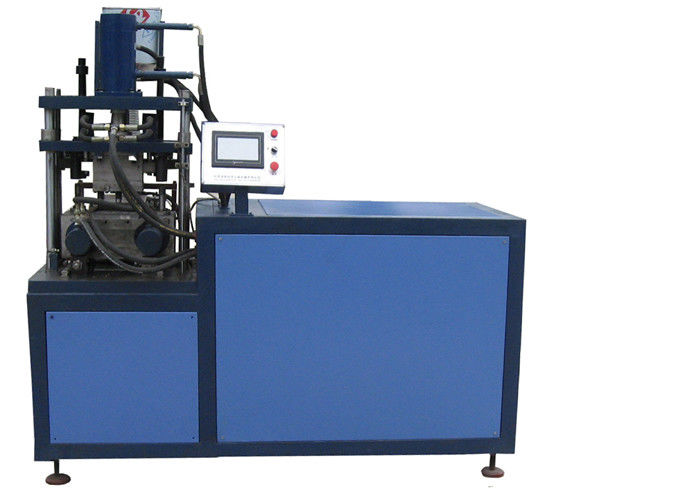

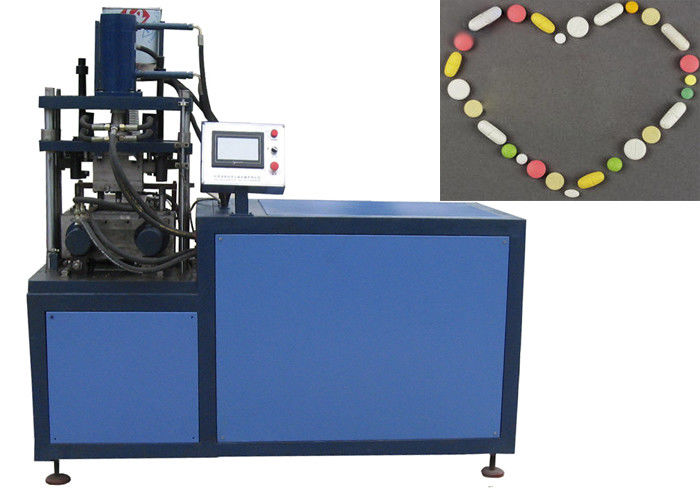

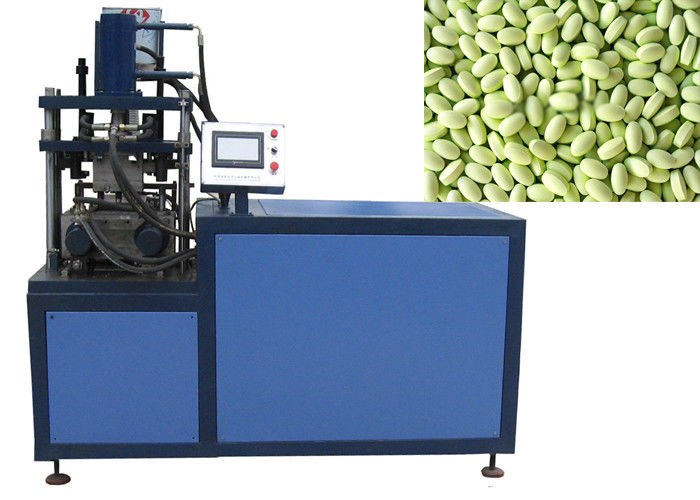

Pharmaceutical Tablet Press Machine / Tablet Presser / Automatic Medicine Pill Making Machinery
Main application This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries. Feature The machine is fully-enclosed, made of stainless steel, meet the G.M.P requirement It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier. The machine can press not only round tablets but also different geometrical shape tablets, annular tablets, and the tablets may have the impressed letters on both sides. A power suction unit is attached to take the residual powder during operation so that the blockage powder can be collected and be reused. An overload protection unit is included in the system to avoid the damage of the punches and apparatus. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.
Quality Assurance Service:
· We support SAMPLE making and testing with your raw material.
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Easily Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.
|Production Capacity||3-5molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤200T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||18. 5kw 22kw(Servo)|
|Agriculture:||Feed block, fertilizer tablets, animal food, animal salt lick|
|Electronics Batteries:||Thermistor, integrated circuit components, carboniferous brush films...|
|Health Products:||calcium, propolis tablets, effervescent tablets, bath salts tablets...|
|Chemical:||disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...|
1. LISEN has been engaged in the press machine many years ago. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each of the incoming material and the finished press machine carefully, so that we can supply the best machine for customers.
3. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer press machine based on your requests with the best quality and the most competitive price. Win-win is our ultimate purpose.
