|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Working Pressure:||≤100T||Filling Depth:||≤150mm|

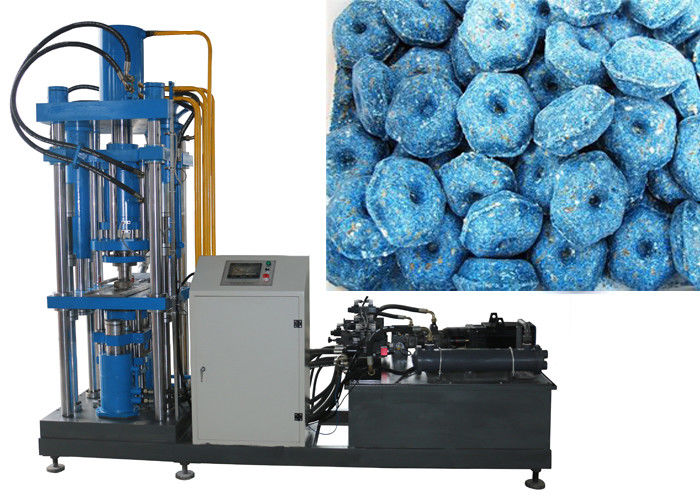

|Product Name:||Rodenticide Wax Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
powder compression machine,
single punch tablet compression machine

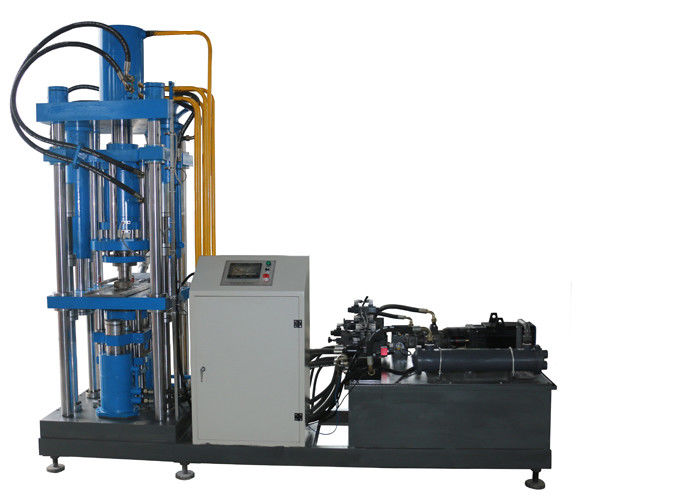

Professional Single Punch Tablet Compression Machine Fully CNC Control Design
1. Hydraulic power part - manual and electric.
2. Mechanical control
3. Working cylinder part.
4. Hydraulic power part consists of hydraulic oil pump, elastic coupling motor and connection plunger pump.
5. The mechanical control part is controlled by the distribution box and the combination button switch.
6. Tubing is connected by high pressure seamless steel pipe.
1. All stainless steel structure and integral frame body, frame press has higher precision and rigidity;
2. According to the customer's requirements, the press is equipped with a hopper, a feeding device, and the bath salt explosive ball forming automaton can be automatically fed or manually fed;
3. The bath salt explosion ball molding machine has independent gas path and electrical control system, and the electrical control adopts PLC programmable controller and man-machine interface;
4. The bath salt explosive ball product forming machine is provided with a lower cylinder and an auxiliary cylinder which can be applied to various shapes and various three-color and multi-color products and complex parts with shoulders;
5. The bath salt explosion ball molding machine can complete the floating pressing, and can realize the process actions such as the pull-down type and the ejection-type demolding.
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
1. The main components of the electric control cabinet adopt international famous brand components, PLC adopts Siemens products,
and the human-machine interface adopts Siemens 10-inch series color touch screen.
2. Low-voltage electrical products use ABB, Schneider, OMRON and other internationally renowned brand products
3. Frequency converter adopts Siemens brand.
4. The bearing series are all use Japan NSK products.
5. The punching plate is processed with corrosion-resistant materials and has good rust and corrosion resistance.
6. The pressure sensing acquisition and transmission system uses imported high-precision sensors and amplifiers to realize real-time pressure detection and analysis. Automatically adjust the depth of powder filling of the tablet press to achieve automatic control of tablet production. At the same time, the mold damage of the tablet press and the supply of the powder are monitored to provide a safety protection. Greatly reduce production costs, improve the pass rate of tablets, and achieve one-person multi-machine management.
|Production Capacity||4-6molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤100T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||11kw 15kw(Servo)|
1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase suitable machine.
3. Warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
B. We will design, customize and make dies for you.
1. All the machines will be adjusted and tested before shipping. Installing,debugging and training to workers are all offered, after customers receiving our tablet press machine
1. What about your tablet press machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001 certificate; already exported into many countries and areas; already got customer’s good reputation.
2. How can you ensure the machine’s quality after we ordered?
Before the delivery, we will send you machine’s pictures and videos, or you can come to factory and check the tablet press machine by yourself, or by the third party inspection organization, contacted by your side.
3. What about your installation service and sales service for your tablet press machine?
1> Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2> We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3> It is free to train your worker in our factory or in your side or by video.
