Changzhou Jintan Lishen Macinery Co., Ltd

Tablet Press / Nutritive Block Tablet Press Machine / Automatic Seeding Cube Coir Jiffy Coco Peat Pellets for Growing

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS100T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Product Name: Fodder Biotabs Fertilizer Automatic Tablet Press Machine Standard: BV
Working Pressure: ≤100T Filling Depth: ≤150mm
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Type: Hydraulic Tablet Press

Product Description

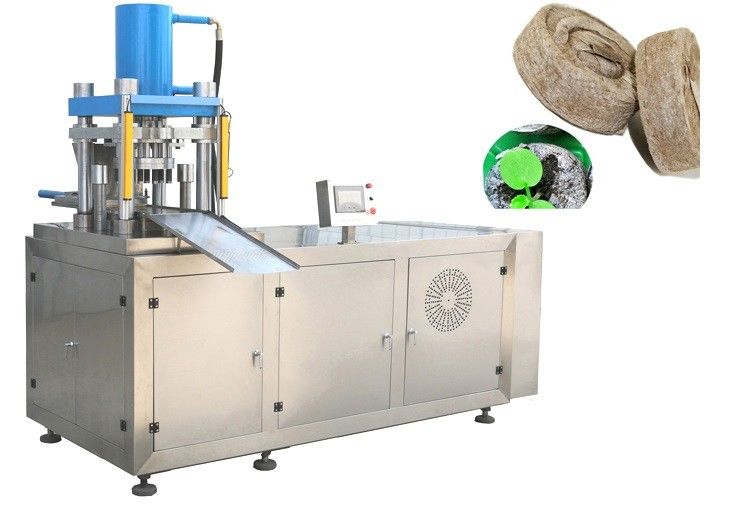

Tablet Press / Nutritive Block Tablet Press Machine / Automatic Seeding Cube Coir Jiffy Coco Peat Pellets for Growing



Competitive Advantages of our tablet press:



1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;



Detailed Information:



1. The main components of the electric control cabinet adopt international famous brand components, PLC adopts Siemens products,
and the human-machine interface adopts Siemens 10-inch series color touch screen.
2. Low-voltage electrical products use ABB, Schneider, OMRON and other internationally renowned brand products
3. Frequency converter adopts Siemens brand.
4. The bearing series are all use Japan NSK products.
5. The punching plate is processed with corrosion-resistant materials and has good rust and corrosion resistance.
6. The pressure sensing acquisition and transmission system uses imported high-precision sensors and amplifiers to realize real-time pressure detection and analysis. Automatically adjust the depth of powder filling of the tablet press to achieve automatic control of tablet production. At the same time, the mold damage of the tablet press and the supply of the powder are monitored to provide a safety protection. Greatly reduce production costs, improve the pass rate of tablets, and achieve one-person multi-machine management.



Technical Parameters:



Production Capacity 4-6molds/min(the actual speed according to product process requirement)
Working Pressure ≤100T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 11kw 15kw(Servo)
Weight&Size Approximately:3200kg 2500mm*1100mm*2300mm(L*W*H)

Tablet Press / Nutritive Block Tablet Press Machine / Automatic Seeding Cube Coir Jiffy Coco Peat Pellets for Growing 0

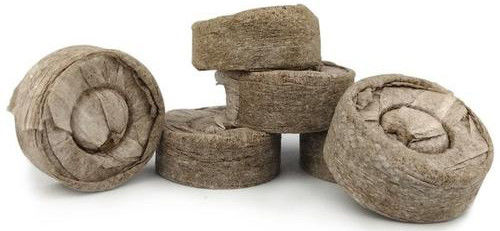

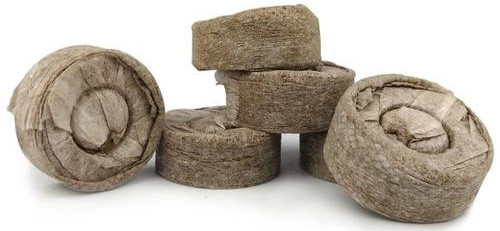

obvious advantages of growing using coir jiffy:



+ Compressed pellets instead of heavy potting soil
+ Made from the renewable raw material Sphagnum peat moss or coco fibers
+ Consistently high quality
+ Intelligent solution for clean and easy handling
+ Reliable and fast germination for healthy plants with strong root systems
+ Clean and convenient planting

Tablet Press / Nutritive Block Tablet Press Machine / Automatic Seeding Cube Coir Jiffy Coco Peat Pellets for Growing 1

Before-sale Service

1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase suitable machine.
3. Warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below advice is for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
4. Capacity
B. We will design, customize and make dies for you.



After-sale Service

1. All the machines will be adjusted and tested before shipping.
2.Installing,debugging and training to workers are all offered, after customers receiving our tablet press machine



FAQ:

1. What about your tablet press machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001 certificate; already exported into many countries and areas; already got customer’s good reputation.
2. How can you ensure the machine’s quality after we ordered?
Before the delivery, we will send you machine’s pictures and videos, or you can come to factory and check the tablet press machine by yourself, or by the third party inspection organization, contacted by your side.
3. What about your installation service and sales service for your tablet press machine?
1> Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2> We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3> It is free to train your worker in our factory or in your side or by video.
