Changzhou Jintan Lishen Macinery Co., Ltd

Adjustable Automatic Press Machine , Mechanical Press Machine Low Working Noise

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS45T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Working Pressure: ≤200T Filling Depth: ≤150mm
Product Name: Grinding Wheel Powder Press Machine Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

cnc universal powder pressing machine

,

powder compaction machine

Product Description

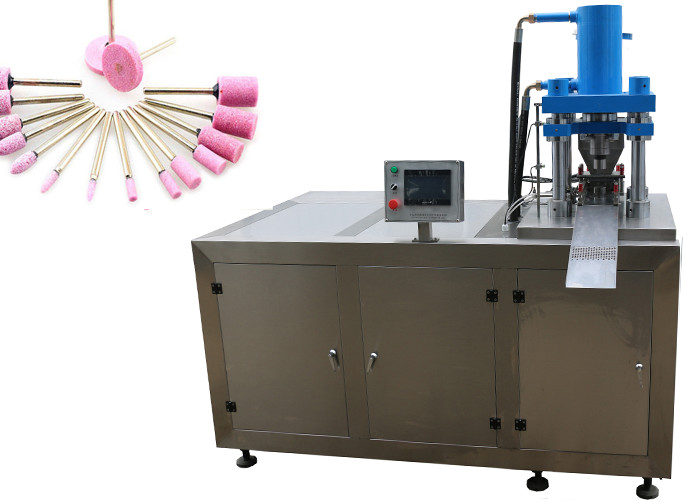

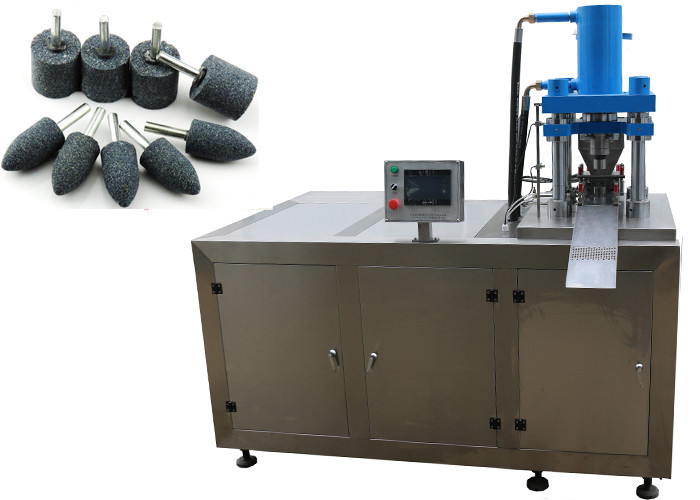

Adjustable Automatic Press Machine , Mechanical Press Machine Low Working Noise 0

Adjustable Automatic Press Machine , Mechanical Press Machine Low Working Noise

  • The tablet press machine is made of stainless steel,which conform with GMP standard. And it is easy to get the light demolition,internal cleaning convenience purposes.
  • Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components.
  • All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately.
  • The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free ,easy release the heat and the control panel can be design to demonstrate in different foreign languages.

Why choose us?

1. LISEN has been engaged in the press machine many years ago. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each of the incoming material and the finished press machine carefully, so that we can supply the best machine for customers.
3. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer press machine based on your requests with the best quality and the most competitive price. Win-win is our ultimate purpose.



In Lisen, you can get your desired tablet block machine with the best price and good quality. Welcome your inquiries from all over the world



We have a well-experienced team to manufacture tablet press machine and equipment and a professional design institute. With rich experiences in tablet block machinery and equipment field and numbers of professional engineers, we have designed and developed tablet block machinery in different tonnage. Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.

1. LISEN has been engaged in the press machine many years ago. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each of the incoming material and the finished press machine carefully, so that we can supply the best machine for customers.
3. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer press machine based on your requests with the best quality and the most competitive price. Win-win is our ultimate purpose.



Technical Parameters:

Production Capacity 3-5molds/min(the actual speed according to product process requirement)
Working Pressure ≤200T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 18. 5kw 22kw(Servo)
Weight&Size Approximately:4800kg 2500mm*1100mm*2100mm(L*W*H)



Tablet Press Machine Technology and Advantage:

* Demoulding Protection: Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.

* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.

* Different layer different color: Can compress the tablet with different layers and different colors.

* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.

* Safety Protection: If some abnormal condition occurs,it will stop immediately and minimize its negative effects.



Main Features

  • The tablet press machine is made of stainless steel, which conform with GMP standard. And it is easy to get the light demolition, internal cleaning convenience purposes.
  • Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components.
  • All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately.
  • The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free, easy release the heat and the control panel can be design to demonstrate in different foreign languages.



Quality Assurance Service:

· We support SAMPLE making and testing with your raw material.

· Every set of machine would be strictly inspected before shipment to ensure the quality.

· TEST RUNNING with material could be supported according to your inquiry.

· There would be quality certificate along with machine.

· Easily Wear and tear parts would be shipped with machine.

· Real-time checking on line for machine manufacturing would be supplied if you like.

· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.

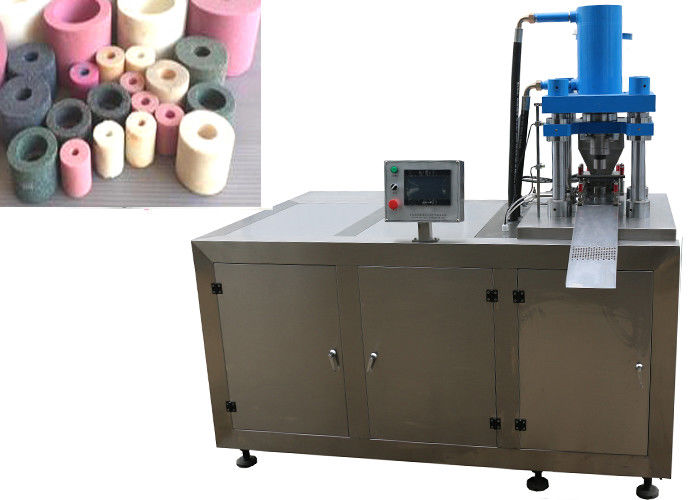

Adjustable Automatic Press Machine , Mechanical Press Machine Low Working Noise 1
