Changzhou Jintan Lishen Macinery Co., Ltd

Aluminum Chlorohydrate Ach Chemical 100T Hydraulic Tablet Press Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS-100T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Application: Tablet Press Apply To Shape: Round,square,or Special-shaped
Working Pressure: ≤100T Filling Depth: ≤150mm
Product Name: Ceramic Press Machine Product Mold: Multi-cavity Mould
Standard: BV Type: Hydraulic Tablet Press
High Light:

100T tablet press machinery


Chlorohydrate hydraulic punch press

Product Description

 Tablet Chlorination / Aluminum Chlorohydrate Ach Chemical For Water Treatment Tablet Press Machine


This machine is hydraulic type tablet press machine, which can press granule or powder into round tablets, irregular tablet and double color tablet, specially for raw material which is hard to be compressed, mainly applied in the industry of pharmacy, food, chemical and electronics.



1.High speed with large quantity punches, double press rollers,suitable for mass production.

2.Made of stainless steel and steel. The machine conforms to GMP requirements.

3.Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference. With 10 tons pressure, pre-pressure is continuously adjustable.

4.With force feeding device, improve granules flow-ability and filling performance, ensure the filling precision, avoiding too muc-h powder and cross pollution.

5.Automatic oil & grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.

6.Special oil proof, dust proof and noise proof design.

7.The machine can stop automatically in case of overpressure to protect the punch pins from being damaged.

8.PLC and touch screen control, automatic and easy control.

9.This machine can press double layer and double color tablets after some changes. (Optional)

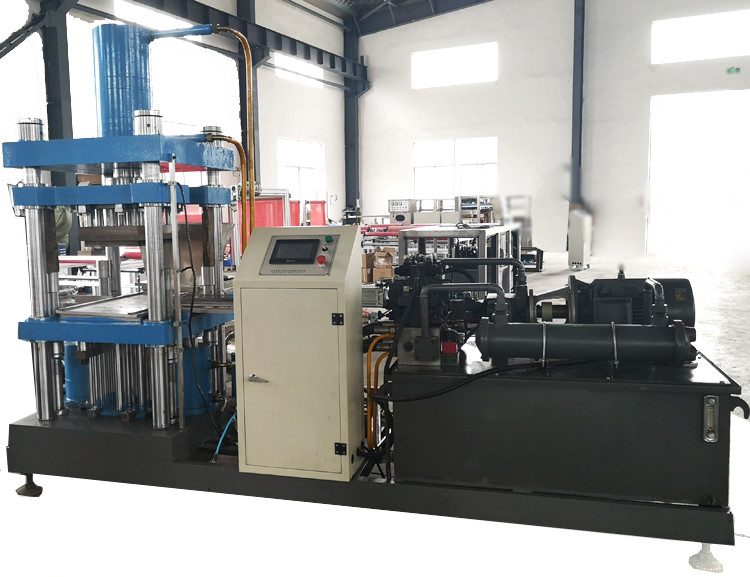

Aluminum Chlorohydrate Ach Chemical 100T Hydraulic Tablet Press Machine 0

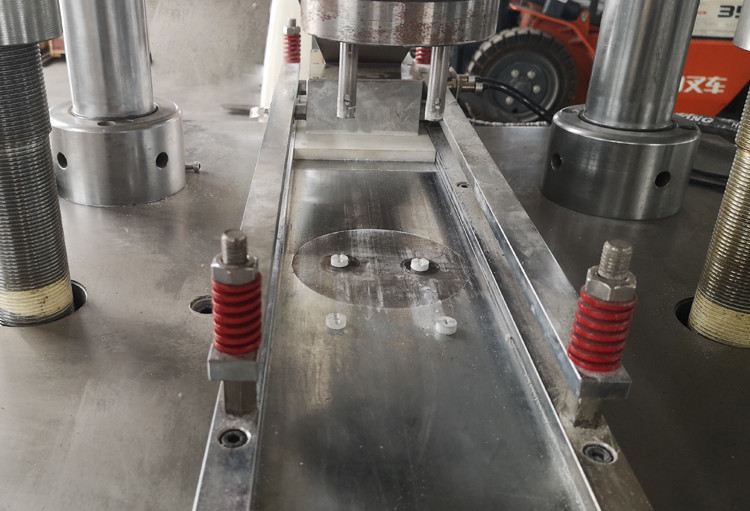

Aluminum Chlorohydrate Ach Chemical 100T Hydraulic Tablet Press Machine 1

Machine introduction:
Our automatic hydraulic press machine are widely used for pressing any powder and granulate into block/tablet. It is a kind large hydraulic tablet press of four column structure, and it can achieve the press of Multi-cavity molds, pressure-holding function, which actively increase the production capacity.
They have been used in following field.

Automatic hydraulic tablet presses'hydraulic system are in SSAN brand from Taiwan, electronic control system uses PLC and HMI(Human Machine Interaction).


Technology and Advantage:


Demoulding Protection:

Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.


Uniform Density:

Uniform density of the compressed tablet can be ensured through special technology.


Different layer different color:

Can compress the tablet with different layers and different colors.


Multiple Production Capacity:

Production capacity can be raised many times under certain conditions.


Safety Protection:

If some abnormal condition occurs,it will stop immediately and minimize its negative effects.


Technical Parameters of Hydraulic Tablet Press Machine

Production Capacity 4-6molds/min(the actual speed according to product process requirement)
Working Pressure ≤100T(1.step-less adjustment 2.can be bidirectional compress)
Working Stroke Up stroke≤250mm,down strokes≤150mm(1.step-less adjustment 2.Customized based on customer’s request.)
Filling Depth ≤150mm(1.step-less adjustment 2.Customized based on customer’s request.)
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round,square,or special-shaped(suitable for a variety of shapes)
Motor Power 11kw 15kw(Servo)
Weight&Size Approximately:3200kg 2500mm*1100mm*2300mm(L*W*H)


More Details of Hydraulic Tablet Press Machine:

1. The tablet press machin conforms with GMP standard. And it is easy to get the light demolition, internal cleaning convenience purposes.

2. Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components.

3. All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately.

4. The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free, easy release the heat and the control panel can be design to demonstrate in different foreign languages.


Before-sale Service

1. Professional consultation about each type of machine is provided.

2. Free testing service is offered to help customers purchase a suitable machine.

3. A warm welcome to visit and evaluate our factory.

4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:

A. We would like to recommend machines based on your requirements as following:

1. Product name

2. Products' size and shape

3. Products' weight

4. Capacity

B. We will design, customize and make dies for you.


After-sale Service

1. All the machines will be adjusted and tested before shipping. Installing, debugging and training to workers are all offered, after customers receiving our tablet press machine
