Product Details:
|
|
Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Lisen |
Certification: | BV |
Model Number: | LS45T |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 35-65 working days |
Payment Terms: | TT, LC |
Supply Ability: | 20000/Year |
Detail Information |
|||
Working Pressure: | ≤200T | Filling Depth: | ≤150mm |
---|---|---|---|

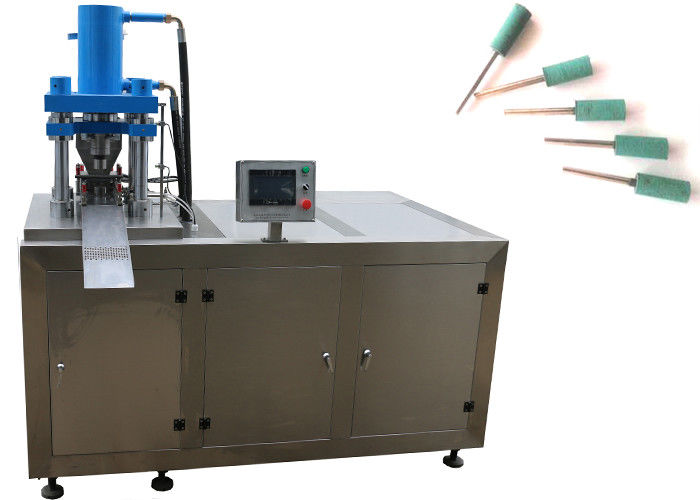

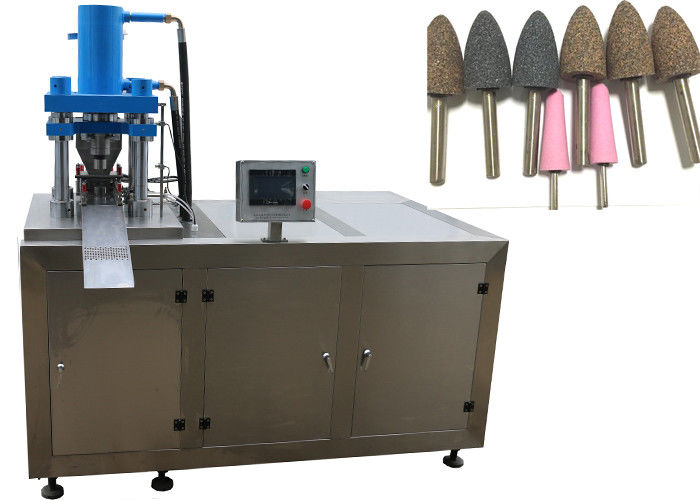

Product Name: | Grinding Wheel Powder Press Machine | Application: | Tablet Press |
Product Mold: | Multi-cavity Mould | Apply To Shape: | Round,square,or Special-shaped |
Standard: | BV | Type: | Hydraulic Tablet Press |
High Light: | cnc universal powder pressing machine,compact powder pressing machine |
Product Description

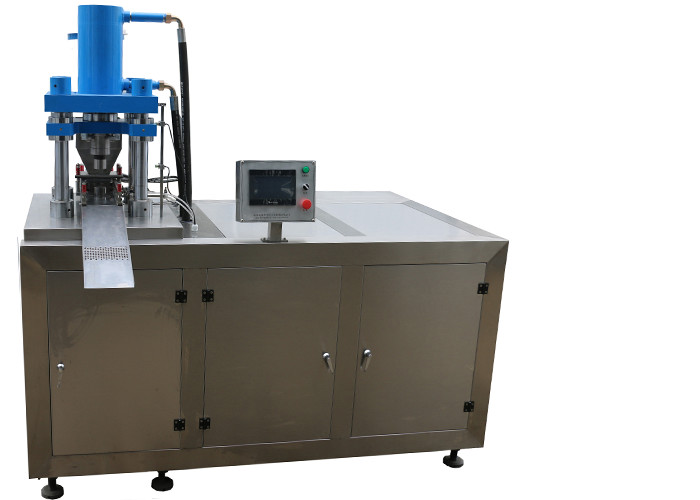

This kind of hydraulic tablet press machine is developed for pressing blocks automatically. Also this machine can compress granular, powder-like material into a variety of general and special-shaped pieces. It is easy to learn mold replacement and installation. All actions record by the microcomputer PLC control, continuous automatic. We have not only a professional design institute and an experienced production team, but also complete and scientific quality control system. Our products can fully be in conformity with the national and industrial standards
Automatic Rotary Pill Tablet Press Machinery is designed for pressing round tablets from various kinds of granularmaterials. It is primary machine to fit batch production of tablets. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adiusted.
The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.
This ZP33 Automatic Rotary Pill Tablet Press Machinery has won the fine Qulity Product Prize awarded by China National Medical Management Bureau.
Advantages of Our Tablet Press Machine:
1. With force feeder, improve granule flow-ability and filling performance, ensure filling precision, avoiding too much dust and cross pollution.
2. PLC and touch screen control, operation is easy and observable.
3. Perfect tablet pressing system, twice compress forming, reasonable framework with proper space and large pressure roller, the tablet would be pressed in longer time with no tablet weight difference.
4. It can automatically record all the operation parameter for different batch production, convenient recovery of production for same specification tablets.
5. Shell is made of stainless steel, fully enclosed type. Surface of turret is covered with harderned layer to make it wear resistant, meeting GMP standards.
6. Pressure sensor protection device would stop the machine to protect the punch mould.
7. Automatic oil and grease lubrication system for pressure roller, punches, reduce abrasion and prolong service life of machine.
8. Special oil proof, dust proof and noise proof design
Using Guides
1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.
2. Do not use the wet materials in order to avoid destroying machine.
3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.
4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.
5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts
Technical Parameters:
Production Capacity | 3-5molds/min(the actual speed according to product process requirement) |
Working Pressure | ≤200T(1. step-less adjustment 2. can be bidirectional compress) |
Working Stroke | Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Filling Depth | ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
Motor Power | 18. 5kw 22kw(Servo) |
Weight&Size | Approximately:4800kg 2500mm*1100mm*2100mm(L*W*H) |
How to choose proper machine / equipment?
Kindly reply us the following items:
- what is the product you do
- raw material
- the production capacity per hour or per day.
- power supply, such as Voltage, Hz, and Phase
Our technical engineer would suggest the proper model with necssary information for your reference. And the production line in workshop could be supplied as per your inquiry.
After sale service.
We supply operation training for workers, and installation in your location.
Regular and considerate inquiry in the email would be supplied for machine running and usual maintenance.
