Changzhou Jintan Lishen Macinery Co., Ltd

Automatic Tablet Press Machine / Convenient Cleaning Tablet Press / Metal Block Making Machine Hydraulic Press

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS200T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Filling Depth: ≤150mm Product Mold: Multi-cavity Mould
Product Name: Automatic Tablet Press Machine Working Pressure: ≤200T
Apply To Shape: Round,square,or Special-shaped Standard: BV
Type: Hydraulic Tablet Press Application: Granules,Powder,Powder And Granules
High Light:

tablet compression machine

,

tablet punching machine

Product Description

Automatic Tablet Press Machine / Convenient Cleaning Tablet Press / Metal Block Making Machine Hydraulic Press



The entire hydraulic system imported from Taiwan, Higher stability, so it avoid oil leaking and polluting, It also can ensure the pressure is enough, and action is synchronized for continuous. Working part and the separation of part of the hydraulic system is independent, non-polluting, automatic heated, so it can make the machine more durable.

This machine is designed for small pharma factory, healthcare plant, food plants and preparation rooms,can be used to pack solid drugs like capsule, tablet, gelatin pearl, suppository, milk tablet, candy and hardware. The whole set is of compact design, beautiful appearance, smooth operation and low noise. Use internal heating method to ensure the PVC is evenly heated. There is no bubble in the aluminum foil while heating and hence no waste will occur.



Applications

Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
Electronics Batteries: Thermistor, integrated circuit components, carboniferous brush films...
Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets...
Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...

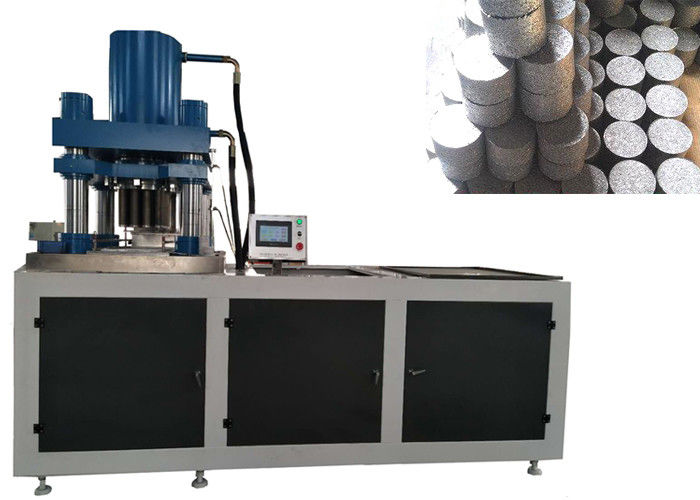

Automatic Tablet Press Machine / Convenient Cleaning Tablet Press / Metal Block Making Machine Hydraulic Press 0



Main application This machine is a single-press/ double press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries. Feature The machine is fully-enclosed, made of stainless steel, meet the G.M.P requirement It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier. The machine can press not only round tablets but also different geometrical shape tablets, annular tablets, and the tablets may have the impressed letters on both sides. A power suction unit is attached to take the residual powder during operation so that the blockage powder can be collected and be reused. An overload protection unit is included in the system to avoid the damage of the punches and apparatus. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.



Technical Parameters:

Production Capacity 3-5molds/min(the actual speed according to product process requirement)
Working Pressure ≤200T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 18. 5kw 22kw(Servo)
Weight&Size Approximately:4800kg 2500mm*1100mm*2100mm(L*W*H)

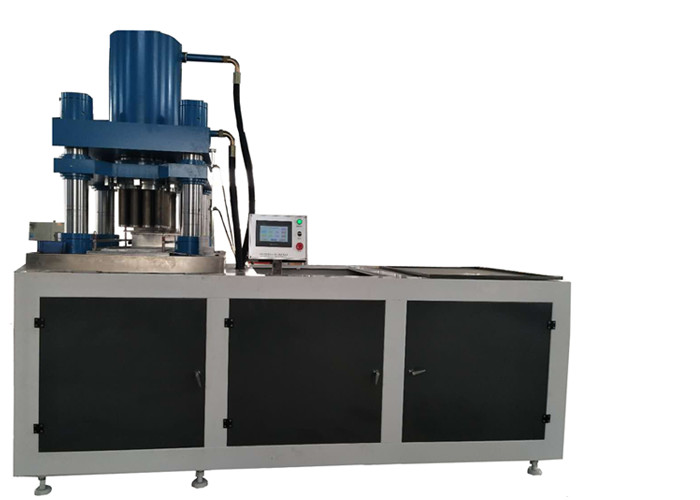

Automatic Tablet Press Machine / Convenient Cleaning Tablet Press / Metal Block Making Machine Hydraulic Press 1



FAQ

Q1: Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.

Q2: Is engineer available to serve overseas?

Yes, but the travel fee and daily salary are paid by customer. So in order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3: How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can come check quality by yourself or your contacts in China.
Q4: How can I know your machine is designed for my product?
If you don't mind, you can send us samples and we will test on our press machines. During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.

Q5: How about warranty and spare parts?

We provide 1-3 years warranty and enough spare parts for the machine, and most of the parts can be found in local market also, you can get easily from us.
Q6: How to contact you?
Please send an inquiry and we will contact you within 24 hours.
