Product Details:
|
|
Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Lisen |
Certification: | BV |
Model Number: | LS2000T |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 35-65 working days |
Payment Terms: | TT, LC |
Supply Ability: | 20000/Year |
Detail Information |
|||
Material: | Stainless Steel | Operation: | Automatic Operation |
---|---|---|---|
Product Name: | Salt Block Press Machine | Standard: | BV |
Application: | Tablet Press | Product Mold: | Multi-cavity Mould |
Apply To Shape: | Round,square,or Special-shaped | Type: | Hydraulic Tablet Press |
High Light: | salt block making machine,salt tablet press machine |
Product Description
Bidirectional Compress Automatic Salt Block Press Machine Mineralized Licking Block Tablet Compaction Machine

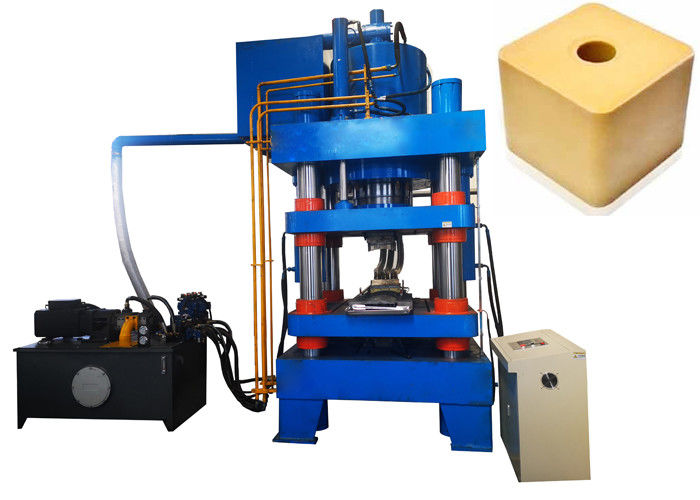

This machine is the four-column hydraulic type press machine, The machine pressure can reach 100T,this machine can reach multi-cavity mould pressing, keep the same pressure, greatly improve production efficiency. Electric control system adopts computer system control PLC control,touch screen operation, time can be adjusted in the processing, which can realize automatic and manual two kinds of works. Mainly consists of mainframe and control structure of two parts through the main line and electrical device connected.
Competitive Advantages for Salt Block Press Machine::
1. Low energy consumption, high speed, low noise, high efficiency; |
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch; |
3. Activity crossbeam has safety limiter in both up and down directions; |
4. Equipped with photoelectric protection device, could guarantee the safety of the operation; |
5. With the function of automatic and manual, it's convertible; |
Detailed Information for Salt Block Press Machine:
1. The main components of the electric control cabinet adopt international famous brand components, PLC adopts Siemens products, |
and the human-machine interface adopts Siemens 10-inch series color touch screen. |
2. Low-voltage electrical products use ABB, Schneider, OMRON and other internationally renowned brand products |
3. Frequency converter adopts Siemens brand. |
4. The bearing series are all use Japan NSK products. |
5. The punching plate is processed with corrosion-resistant materials and has good rust and corrosion resistance. |
6. The pressure sensing acquisition and transmission system uses imported high-precision sensors and amplifiers to realize real-time pressure detection and analysis. Automatically adjust the depth of powder filling of the tablet press to achieve automatic control of tablet production. At the same time, the mold damage of the tablet press and the supply of the powder are monitored to provide a safety protection. Greatly reduce production costs, improve the pass rate of tablets, and achieve one-person multi-machine management. |
Technical Parameters for Salt Block Press Machine::
Production Capacity | 2-4molds/min(the actual speed according to product process requirement) |
Working Pressure | ≤1000T(1.step-less adjustment 2. can be bidirectional compress) |
Working Stroke | Upstroke ≤ 800mm, down strokes≤300mm(1. step-less adjustment 2.Customized based on customer’s request.) |
Filling Depth | ≤400mm(1. step-less adjustment 2. Customized based on customer’s request.) |
Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
Motor Power | 37kw 50kw(Servo) |
Weight&Size | Approximately:25000kg 4000mm*1200mm*3000mm(L*W*H) |
Before-sale Service for Salt Block Press Machine:
1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase suitable machine.
3. Warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
4. Capacity
B. We will design, customize and make dies for you.
After-sale Service for Salt Block Press Machine:
1. All the machines will be adjusted and tested before shipping. Installing,debugging and training to workers are all offered, after customers receiving our tablet press machine
Feedback from customers for Salt Block Press Machine:
Processing for for Salt Block Press Machine:
FAQ
1. What about your tablet press machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001 certificate; already exported into many countries and areas; already got customer’s good reputation.
2. How can you ensure the machine’s quality after we ordered?
Before the delivery, we will send you machine’s pictures and videos, or you can come to factory and check the tablet press machine by yourself, or by the third party inspection organization, contacted by your side.
3. What about your installation service and sales service for your tablet press machine?
1> Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2> We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3> It is free to train your worker in our factory or in your side or by video.
