Changzhou Jintan Lishen Macinery Co., Ltd

Chemical Pharmaceutical Tablet Press Machine Continuous Working Tablet Pressing Powder Forming Machinery

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS25T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Operation: Automatic Operation Power Supply: 220V 50HZ
Product Name: Veterinary Pharmaceutical Tablet Press Machine Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

single punch tablet machine

,

pill compressor machine

Product Description

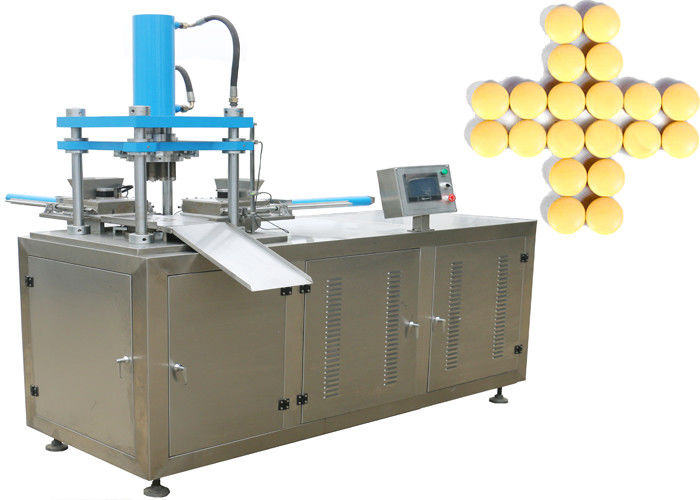

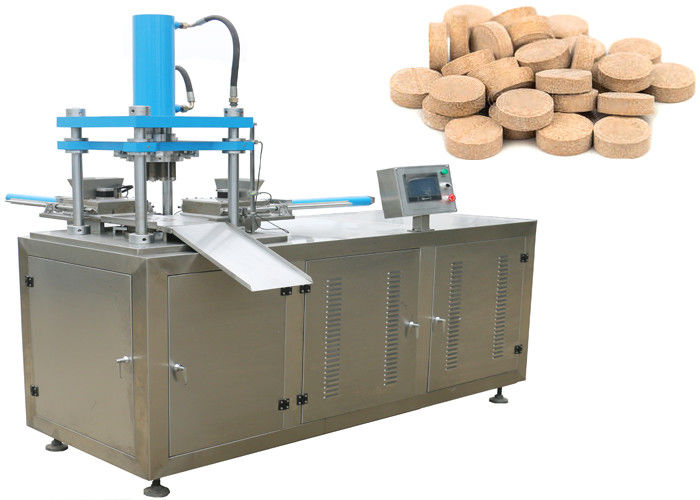

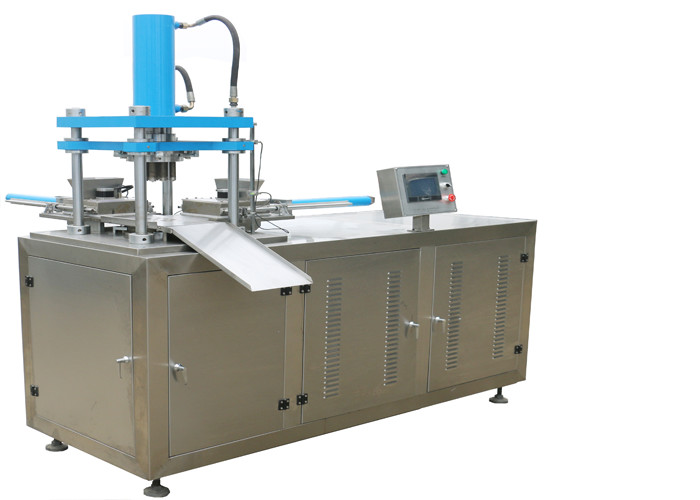

Chemical Pharmaceutical Tablet Press Machine Continuous Working Tablet Pressing Powder Forming Machinery



The tablet press machine is made of stainless steel, which conform with GMP standard. And it is easy to get the light demolition, internal cleaning convenience purposes. Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components. All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately. The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free ,easy release the heat and the control panel can be design to demonstrate in different foreign languages.



Detail Information



Tablet Press Machine Technology and Advantage:



* Demoulding Protection: Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.
* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.
* Different layer different color: Can compress the tablet with different layers and different colors.
* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.
* Safety Protection: If some abnormal condition occurs,it will stop immediately and minimize its negative effects.



Features

This machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets.
During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted.
The mechanical buffer unit will prevent punches and apparatus from overload damage.
A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.
With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
With dust seal ring on punches, avoid powder leakage from turret table.
It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
It is equipped with overload protection device, when pressure overload, it can stop automatically.



Tablet Press Machine Parameters:

Production Capacity 4-6molds/min(the actual speed according to product process requirement)
Working Pressure ≤25T(can be bidirectional compress)
Working Stroke Up stroke≤250mm,Down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth 150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 5. 5kw 7. 5kw(Servo)
Weight&Size Approximately:1600kg 1800mm*850mm*1800mm(L*W*H)



One station service to make sure our customer get good products and good service.



(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours, except the special reasons once you enquiry us.

(4) Additives: installation book, Manual book, tool box will be sent with machine.

Chemical Pharmaceutical Tablet Press Machine Continuous Working  Tablet Pressing Powder Forming Machinery 0
