Product Details:
|
|
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Lisen |
| Certification: | BV |
| Model Number: | LS100T |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 35-65 working days |
| Payment Terms: | TT, LC |
| Supply Ability: | 20000/Year |
|
Detail Information |
|||
| Product Mold: | Multi-cavity Mould | Working Pressure: | ≤100T |
|---|---|---|---|
| Filling Depth: | ≤150mm | Product Name: | TCCA Chlorine Pharmaceutical Tablet Press Machine |
| Application: | Tablet Press | Apply To Shape: | Round,square,or Special-shaped |
| Standard: | BV | Type: | Hydraulic Tablet Press |
| High Light: | pill compressor machine,tablet pill press machine |
||
Product Description

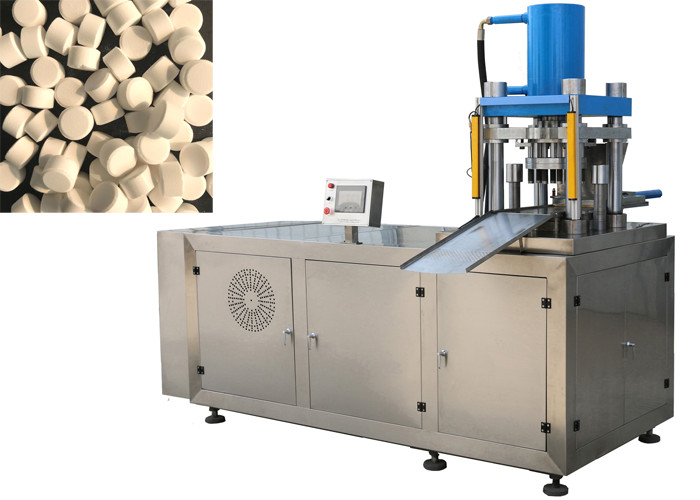

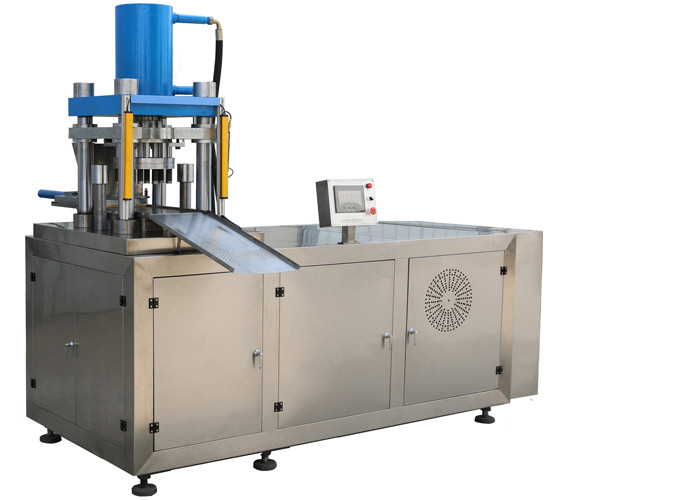

Continuous Medical Pharmaceutical Tablet Press Machine For Healthcare Plant / Powder Forming Machine
Its steel plate welded body has high shock-absorbing performance.Its novel overall design gives the machine elegant appearance. Its throat has certain depth.
The compact structure makes the use convenient and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band brake and a press-down type safety device.
Tablet press machine is continuous automatic, it is the pharmaceutical, chemical, food processing, electronics and other industrial department granular materials into one of the necessary equipment, it is suitable for small batch production, laboratory, hospital departments such as pressing tablets, catalyst, sugar tablets, calcium tablets, coffee, powder metallurgy, electronic components and various agricultural fertilizer agent, etc.It can suppress all kinds of special-shaped, ring tablet, and can suppress double-sided engraved with trademarks, text and simple graphics tablets, because of the pressure, strength, particularly suited to suppress difficult molding powder tablets, such as ceramic powder, metal powder, etc.
| (1). Excellent performance, strong adaptability, convenient operation. |
| (2). Machine has big pressure, could press big tablet, for small capacity. |
| (3). Material filling and depth adjusted. |
| (4). Machine could be operated by electricity and hands. |
| (5). Machine could press different tablet size and tablet shape by changing mould. |
Tablet Press Machine Applications:
Technical Parameters:
Technical Parameters:
| Production Capacity | 4-6molds/min(the actual speed according to product process requirement) |
| Working Pressure | ≤100T(1. step-less adjustment 2. can be bidirectional compress) |
| Working Stroke | Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Filling Depth | ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
| Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
| Motor Power | 11kw 15kw(Servo) |
| Weight&Size | Approximately:3200kg 2500mm*1100mm*2300mm(L*W*H) |
Quality Assurance
· We support SAMPLE making and testing with your raw material.
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Easily Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.
