Product Details:
|
|
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Lisen |
| Certification: | BV |
| Model Number: | LS20T |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 35-65 working days |
| Payment Terms: | TT, LC |
| Supply Ability: | 20000/Year |
|
Detail Information |
|||
| Working Pressure: | ≤20T | Filling Depth: | ≤100mm |
|---|---|---|---|
| Product Name: | Flower Basket Tablet Press | Application: | Tablet Press |
| Product Mold: | Multi-cavity Mould | Apply To Shape: | Round,square,or Special-shaped |
| Standard: | BV | Type: | Hydraulic Tablet Press |
Product Description

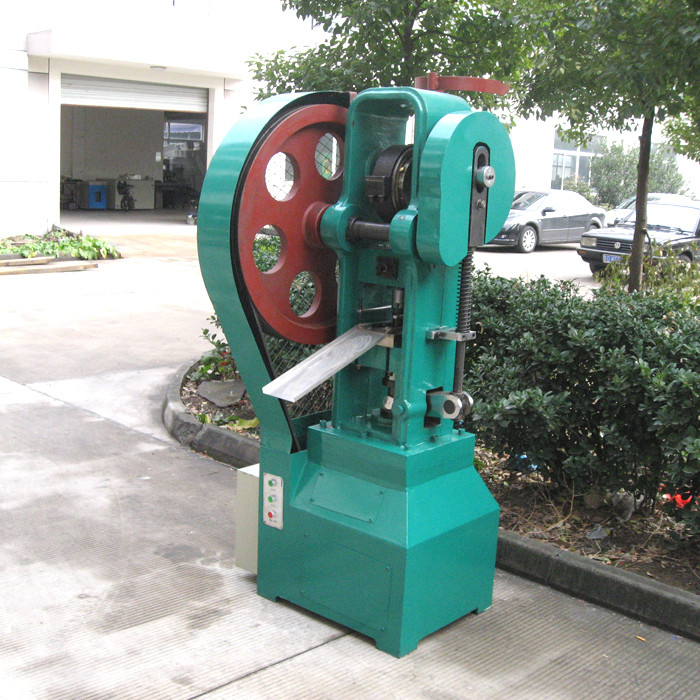

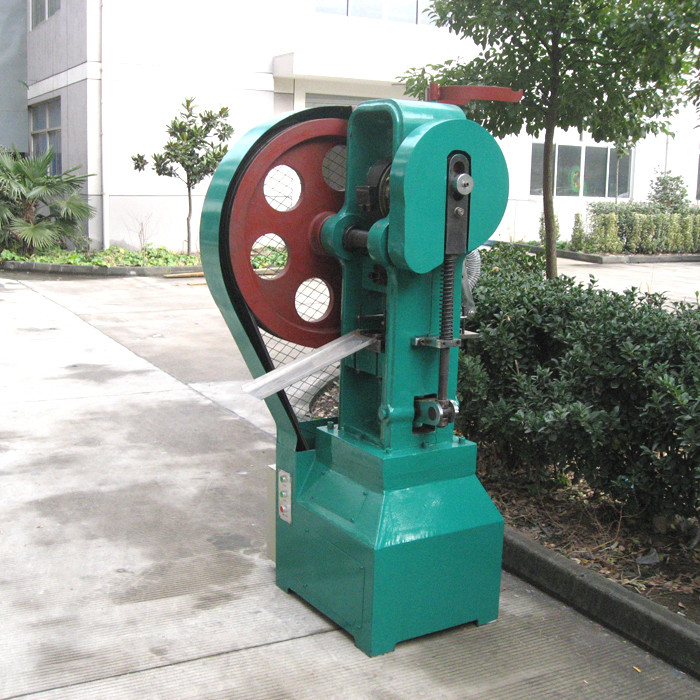

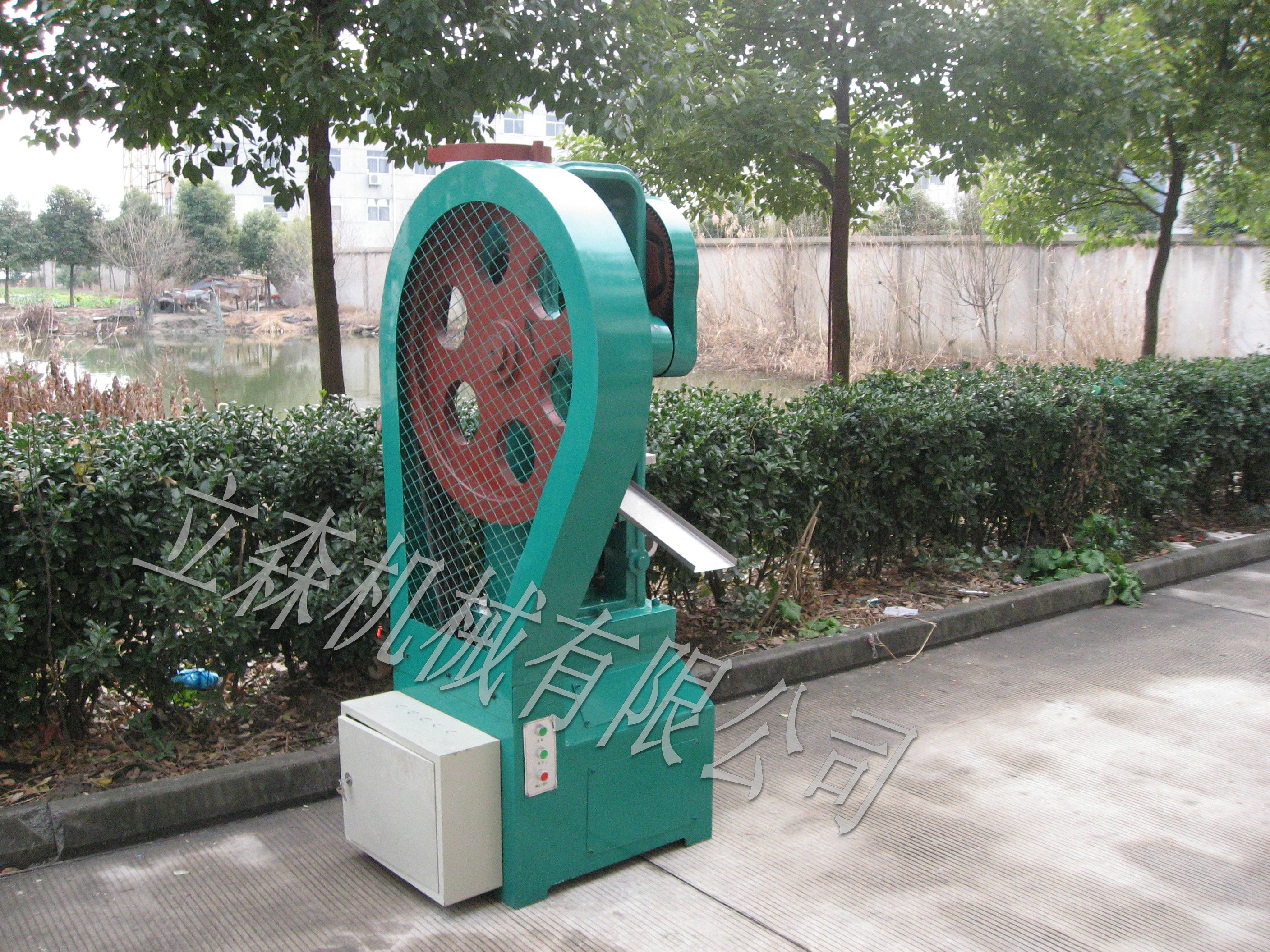

Dishwasher Tablet Press Machine, Flower Basket Tablet Press For Dishwasher Tabs, Detergent Tablets
Details of Our Flower Basket Tablet Press:
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops |
| Condition | New |
| Place of Origin | Jiangsu,China |
| Type | Single Punch |
| After-sales Service Provided | Field installation, commissioning and training, Video technical support, Online support, Engineers available to service machinery overseas |
| Warranty | 1 Year |
| Brand Name | LISEN |
| Production Capacity16 | 00pcs/h |
| Max. Pressure(KN) | 100KN |
| Max. Tablet Thickness(mm) | 70mm |
| Max. Tablet Diameter(mm) | 115mm |
| Voltage | 220V 380V |
| Power(W) | 1.1~8KW |
| Weight | according to product model |
| Dimension(L*W*H) | 685*565*1610 mm |
| Certification | CE SGS ISO9001 |
| Product name | Dishwasher Tablet Press Machine, Flower Basket Tablet Press For Dishwasher Tabs, Detergent Tablets |
| Application | Pharmaceutical Food |
| Tablet shape | Round Tablet Abd Irregular Tablet |
| Material | Iron |
| Features: |
| 1.With the function of automatic and manual, it’s convertible |
| 2.With advanced technology, low energy consumption high speed, low noise and high efficiency |
| 3.Activity crossbeam has safety limiter in both up and down directions |
| eters can be made according to requirements |
| Technology: | |
| 1. Demoulding protection | Protect the compressed tablet well in the course of production that damaged by improper mould forces. |
| 2. Uniform Density | Through special technology,can ensure the compressed tablet uniform density. |
| 3. Different layer | different color Can compress the tablet with different layers and different colors. |
| 4. Multiple Prodcution | Capacity Under certain conditions,can realized the capacity increase many times. |
| 5. Safety Protection | If some abnormal condition occurs,it will stop immediately,will be affected to a minimum. |
Basket type tablet press is a kind of flower basket type continuous automatic tablet press, it is the pharmaceutical, chemical, food processing, electronics and other industrial department granular materials into one of the necessary equipment, it is suitable for small batch production, laboratory, hospital departments such as pressing tablets, catalyst, sugar tablets, calcium tablets, coffee, powder metallurgy, electronic components and various agricultural fertilizer agent, etc.It can suppress all kinds of special-shaped, ring tablet, and can suppress double-sided engraved with trademarks, text and simple graphics tablets, because of the pressure, strength, particularly suited to suppress difficult molding powder tablets, such as ceramic powder, metal powder, etc.
Before-sale Service
1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase a suitable machine.
3. A warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
4. Capacity
B. We will design, customize and make dies for you.
After-sale Service
1. All the machines will be adjusted and tested before shipping. Installing, debugging and training to workers are all offered, after customers receiving our tablet press machine
Tablet Press Machine Technology and Advantage:
| * Demoulding Protection: Protecting the compressed tablet well, which are damaged by improper mold forces in the course of the production. |
| * Uniform Density: Uniform density of the compressed tablet can be ensured through special technology. |
| * Different layer different colors: Can compress the tablet with different layers and different colors. |
| * Multiple Production Capacity: Production capacity can be raised many times under certain conditions. |
| * Safety Protection: If some abnormal condition occurs, it will stop immediately and minimize its negative effects. |
Technical Parameters:
| Production Capacity | 25pcs/min(the actual speed according to product process requirement) |
| Working Pressure | ≤20T(1.step-less adjustment 2.can be bidirectional compress) |
| Working Stroke | Up stroke≤150mm,Down strokes≤100mm(1.step-less adjustment 2.Customized based on customer's request.) |
| Filling Depth | ≤60mm(1.step-less adjustment 2.Customized based on customer's request.) |
| Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
| Tablet Diameter | ≤120mm |
| Apply to Shape | Round,square,or special-shaped(suitable for a variety of shapes) |
| Motor Power | 4kw(Servo) |
| Weight&Size | Approximately:1000kg,780mm*600mm*1900mm(L*W*H) |
Company Information
Changzhou Jintan Lishen Machinery Co., Ltd. is a professional manufacturer and supplier of tablet press machinery and equipment in China.
We have a well-experienced team to manufacture tablet press machines and equipment and a professional design institute. With rich experiences in tablet block machinery and equipment field and numbers of professional engineers, we have designed and developed tablet block machinery in different tonnage.
Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
In Lisen, you can get your desired tablet block machine with the best price and good quality. Welcome your inquiries from all over the world.
