Changzhou Jintan Lishen Macinery Co., Ltd

Energy Saving Powder Press Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS45T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Working Pressure: ≤200T Filling Depth: ≤150mm
Product Name: Powder Press Machine Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

cnc universal powder pressing machine

,

powder compaction machine

Product Description

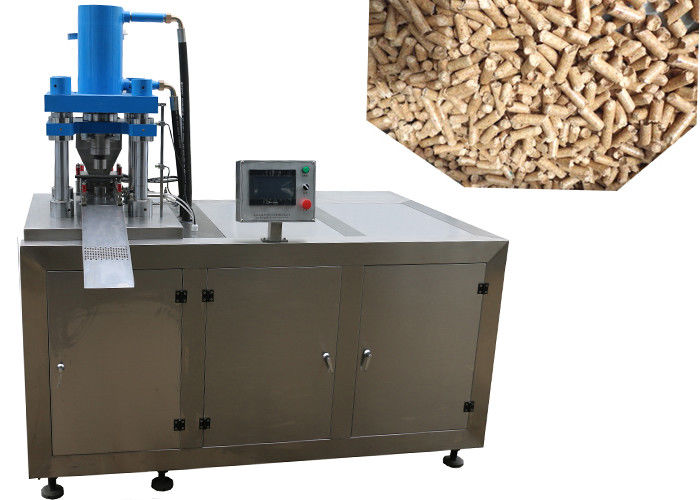

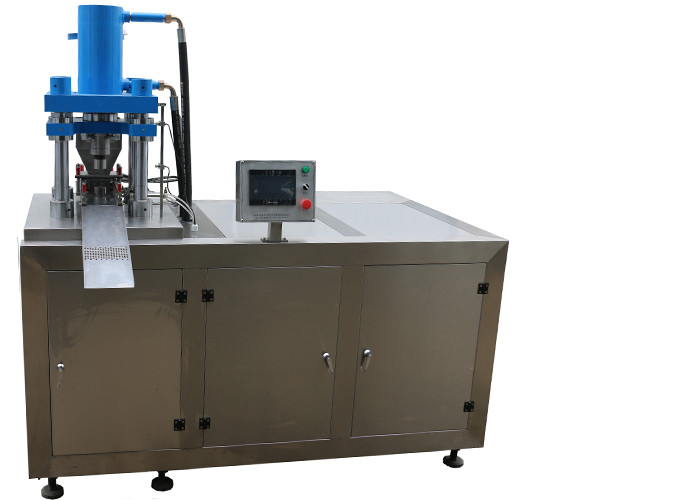

Powder Press Machine

Main feature:

1. Three beam four-column structures, after the computer optimized design, economic, and apply.
2. Hydraulic control system uses an integrated cartridge valve systems and reliability, long life.
3. Hydraulic shock is small, reduces piping and leak-point links.
4. Stand-alone electrical control system which is reliable, intuitive motion, easy for maintenance

5. Centralized control design, two kinds of mode of operation for choose.
6. Setting process can be realized easily.
7. Working pressure, stroke according to the technical needs within the limits prescribed adjustable.



One station service to make sure our customer get good products and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours,except the special reasons once you enquiryus.

(4) Additives: installation book, Manual book, tool box will be sent with machine.



Technical Parameters:

Production Capacity 3-5molds/min(the actual speed according to product process requirement)
Working Pressure ≤200T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 18. 5kw 22kw(Servo)
Weight&Size Approximately:4800kg 2500mm*1100mm*2100mm(L*W*H)



Descriptions and Advantage:

  1. Fully CNC Control Design

Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology.



  1. Fully Intelligent Operation Design

Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.



  1. Fully-automatic Material Filling Design

The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor.



  1. Isolated Hydraulic Station Design

Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.



  1. Reasonable Structure Design
  1. energy saving and environmental protection
  2. small space occupation
  3. superior performance
  4. simple operation
  5. easy maintenance and so on.



Technology and Advantage:



  1. Demoulding Protection

Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.



  1. Uniform Density

Uniform density of the compressed tablet can be ensured through special technology.



  1. Different layer different color

Can compress the tablet with different layers and different colors.



  1. Multiple Production Capacity

Production capacity can be raised many times under certain conditions.



  1. Safety Protection

If some abnormal condition occurs,it will stop immediately and minimize its negative effects.



Applications



Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
Electronics Batteries: Thermistor, integrated circuit components, carboniferous brush films...
Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets...
Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...



Before-sale Service

1. Professional consultation about each type of machine is provided.

2. Free testing service is offered to help customers purchase suitable machine.

3. Warm welcome to visit and evaluate our factory.

4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:

A. We would like to recommend machines based on your requirements as following:

1. Product name

2. Products' size and shape

3. Products' weight

4. Capacity

B. We will design, customize and make dies for you.



After-sale Service

1. All the machines will be adjusted and tested before shipping.

2. Installing,debugging and training to workers are all offered, after customers receiving our tablet press machine.
