Changzhou Jintan Lishen Macinery Co., Ltd

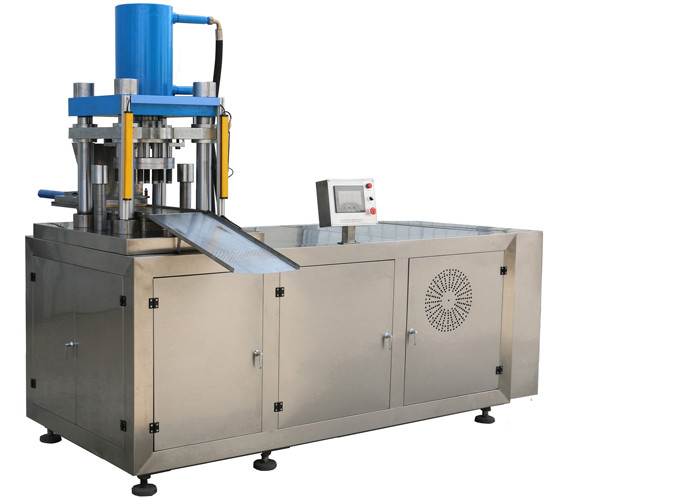

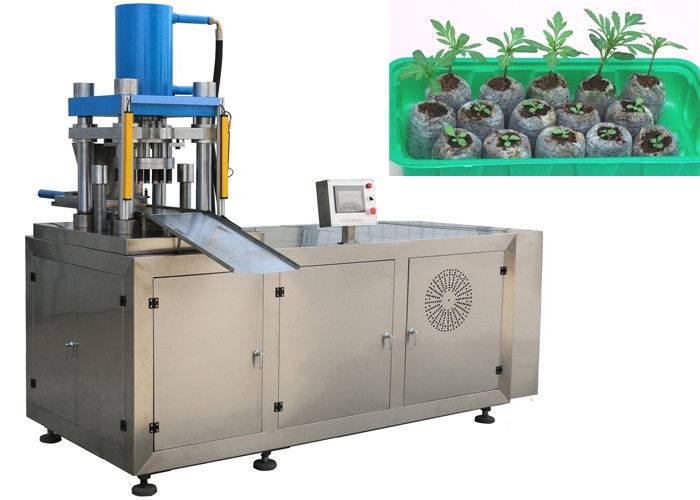

Energy Saving Single Punch Tablet Press / Hydraulic Tablet Press Machine for Biotabs' Organic Fertilizers Tablet Press

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS100T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Working Pressure: ≤100T Filling Depth: ≤150mm
Product Name: Fodder Biotabs Fertilizer Automatic Tablet Press Machine Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV
High Light:

tablet punching machine

,

automatic pill press machine

Product Description

Energy Saving Single Punch Tablet Press / Hydraulic Tablet Press Machine for Biotabs' Organic Fertilizers Tablet Press



Technical Performance
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
6. Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping and time-delaying.



Brief Information About Our Tablet Press Machine:

This machine is designed for pressing tablets from various granular materials, which is used for pharmaceutical, chemical, food, hospital, science research institution is applicable to trial manufacturing in lab or produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape. It features a small desktop type press for motive and control sheeting. It can also be hand -operated easy to be operated and maintained ,small volume, light weight. one set of punch and de is mounted the depth of the filling material tablet press and thickness of the tablets can be adjusted high precision of filling, low-noise, low-consumption of material, and it works smoothly. The minimum consumption of lab material is just 200g.



1. The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the GMP requirement.

2. It has transparent windows, so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance are easier

3. The machine can press not only round tablets, but also different geometrical

shape tablets, double-layered and annular tablets; the tablets may have the impressed letters on both sides

4. All the controllers and devices are located in one side of the machine, so that it can be easier to operate

5. An overload unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs

6. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.



Tablet Press Machine Technology and Advantage:

* Demoulding Protection: Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.

* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.

* Different layer different color: Can compress the tablet with different layers and different colors.

* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.

* Safety Protection: If some abnormal condition occurs,it will stop immediately and minimize its negative effects.



Technical Parameters:

Production Capacity 4-6molds/min(the actual speed according to product process requirement)
Working Pressure ≤100T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 11kw 15kw(Servo)
Weight&Size Approximately:3200kg 2500mm*1100mm*2300mm(L*W*H)



We have a well-experienced team to manufacture tablet press machine and equipment and a professional design institute. With rich experiences in tablet block machinery and equipment field and numbers of professional engineers, we have designed and developed tablet block machinery in different tonnage.
Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
