Changzhou Jintan Lishen Macinery Co., Ltd

Environmental Protection Ball Press Machine Reasonable Structure Simple Operation

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS2 100T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Working Pressure: ≤100T Filling Depth: ≤150mm
Product Name: Hydraulic Tablet Press Machine Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

electric hydraulic press machine

,

automatic hydraulic press machine

Product Description

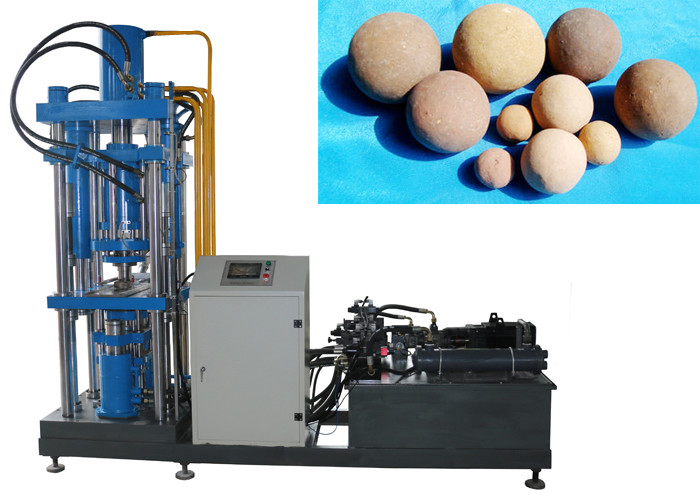

Environmental Protection Ball Press Machine Reasonable Structure Simple Operation 0

Environmental Protection Ball Press Machine Reasonable Structure Simple Operation



Main structurs:

1. Hydraulic power part - manual and electric.
2. Mechanical control
3. Working cylinder part.
4. Hydraulic power part consists of hydraulic oil pump, elastic coupling motor and connection plunger pump.
5. The mechanical control part is controlled by the distribution box and the combination button switch.
6. Tubing is connected by high pressure seamless steel pipe.

  • The tablet press machine is made of stainless steel,which conform with GMP standard. And it is easy to get the light demolition,internal cleaning convenience purposes.
  • Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components.
  • All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately.
  • The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free ,easy release the heat and the control panel can be design to demonstrate in different foreign languages.



Using Guides

1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.

2. Do not use the wet materials in order to avoid destroying machine.

3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.

4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.

5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts.



Hydraulic machine is our factory newly developed automatic tablet press machine,which can compress granular, powder-like material into a variety of general and special-shaped pieces. It is suitable for large-scale repression of products which require high-density, while a multi-chip module can be used for large-scale production industries, equipment, high precision, easy to learn mold replacement and installation. High degree of automation. All actions by the microcomputer PLC control, continuous automatic. Can be properly adjusted to suppress the time, pressure, product thickness. Our company has been engaged in the research,development and manufacture of non-standard tablet press machine. Our tablet press machine have broad scope of application. At the same time, offer molding manufacturing service. We have accumulated a lot of material tablet compressing experience. Besides offering tablet press machine and mould, we also can give some technical support on tablet press machine & mould for customers.



Fully CNC Control Design:

Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology

Fully Intelligent Operation Design:

Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.

Fully-automatic Material Filling Design:

The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor.

Isolated Hydraulic Station Design:

Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.



Technical Parameters:

Production Capacity 3-5molds/min(the actual speed according to product process requirement)
Working Pressure ≤100T(1. step-less adjustment 2. bidirectional compress)
Working Stroke Upstroke ≤250mm,down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Pressing Technique Two and Two(UP and DOWN)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 11kw 15kw(Servo)
Weight&Size Approximately:4000kg 2660mm*1160mm*2800mm(L*W*H)



Tablet Press Machine Applications:

  1. Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
  2. Electronics Batteries: Thermistor, integrated circuit components, carboniferous brush films...
  3. Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets...
  4. Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...

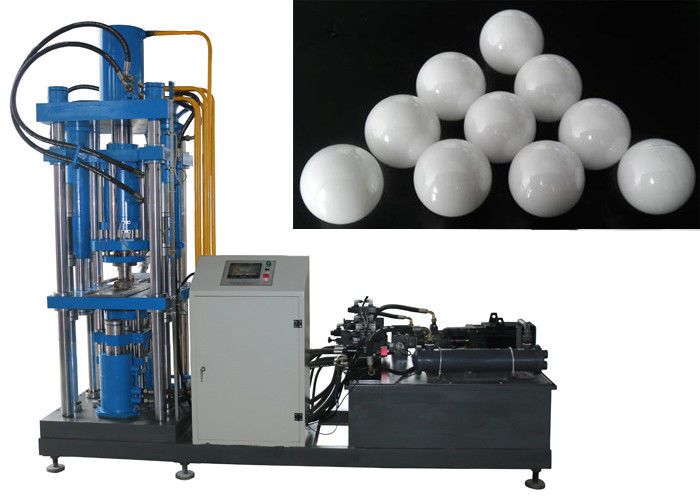

Environmental Protection Ball Press Machine Reasonable Structure Simple Operation 1
