Changzhou Jintan Lishen Macinery Co., Ltd

Glass Mosaic 60 KN Rotary Tablet Press Machine For Paint

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Power Supply: 220V 50HZ Voltage: 220V/380V
Product Name: Automatic Rotary Tablet Press Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Rotary Tablet Press
High Light:

60 KN industrial pill press


Mosaic rotary press machine

Product Description

Rotary Tablet Press Machine For Paint, Glass Mosaic Making Machine / Factory Price Industrial Pill Press Supplier


​It is developed on the basis of the international advanced technologies. It is featured by its low material waste, reasonable structure, easy operation, compact size, large compression, low noise, small weight deviation, adjustable tablet filling depth and thickness, etc. With all of its functions at the level of the similar imported products, this single press machine can be widely used in pharmaceutical, chemical, electronic, foodstuff and more industries for pressing the powder or granular materials into tablet automatically in a continuous way.


Tablet Press Machine Technology and Advantage:

* Demoulding Protection: Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.

* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.

* Different layer different color: Can compress the tablet with different layers and different colors.

* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.

* Safety Protection: If some abnormal condition occurs,it will stop immediately and minimize its negative effects.



Material: Metal + Stainless Steel
Optional Tablet Diameters: D8mm*Thickness3mm
Color: As Pictures
Tablet Shape: Round
Weight: 1810 Kgs
Function: Tableting Powder to block or tablet

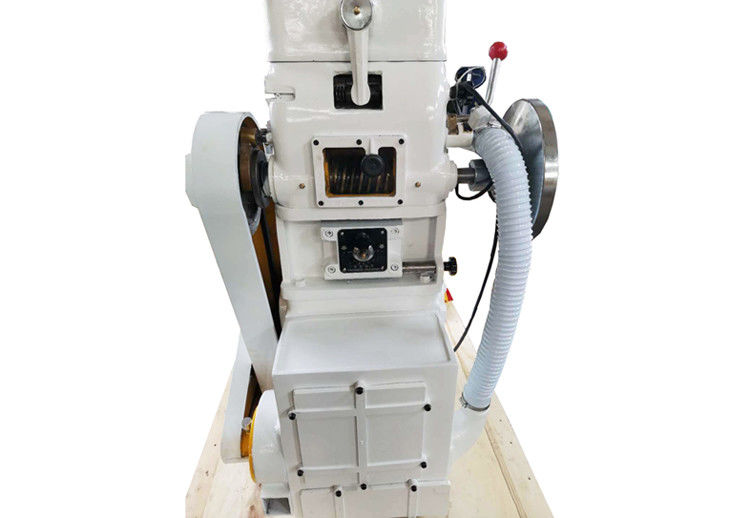

Glass Mosaic 60 KN Rotary Tablet Press Machine For Paint 0

Detailed Specification of Rotary Tablet Press Machine:


1) Main technical data and production capacity
Punch die quantity on revolving table 25PCS
Maximum tablet force 60 KN
Maximum tablet diameter 20mm
Maximum tablet tliickness 9mm
Maximum depth of filling 15mm
Fluctuation punch diameter 42 mm
Uprush total letigt.h 227 mm
Downrush total length 177 mm
Die thickness 25 mm
Die diameter 42 mm
Rotating speed range 6~10 Rev/min
2)Poduction capacity
Single punch ($20) 30000/hour
Double punch ($12) 60000/hour
Three punch ($9) 90000/hour
Four punch ($6) 120000/hour
Host net weight 1810 Kgs
Auxiliary machine net weight 85Kg
Host dimensions(length*width*height) 1015*1182*1800(mm)
Auxiliary machine dimensions(length*width*height) 654*508*938(mm)
Host power 3KW


1. The punch pressure of this product is 60KN, and the hardness is determined by the character of powder, the smaller the tablet is, the harder it is.



Pharmaceutical Industry...

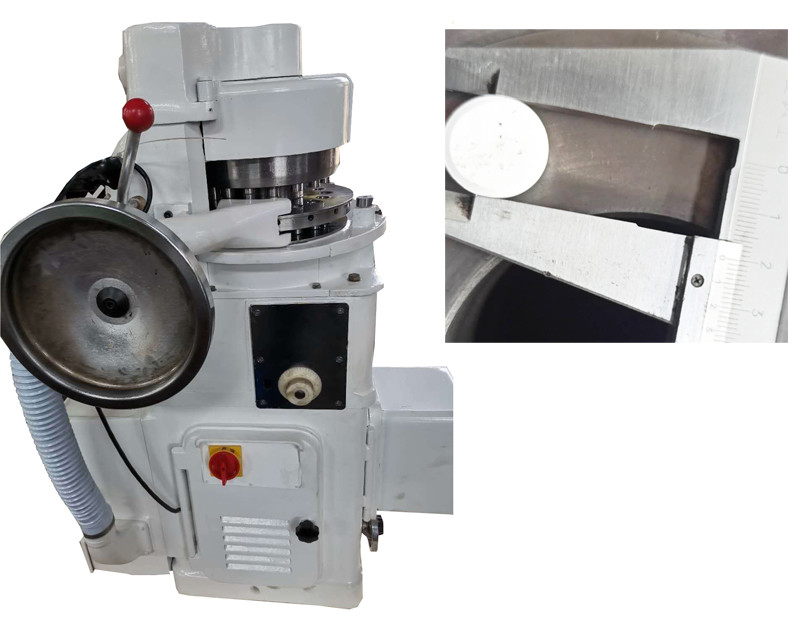

Glass Mosaic 60 KN Rotary Tablet Press Machine For Paint 1

Package Includes:
1 x Tablet Press Machine, packed by wooden case.

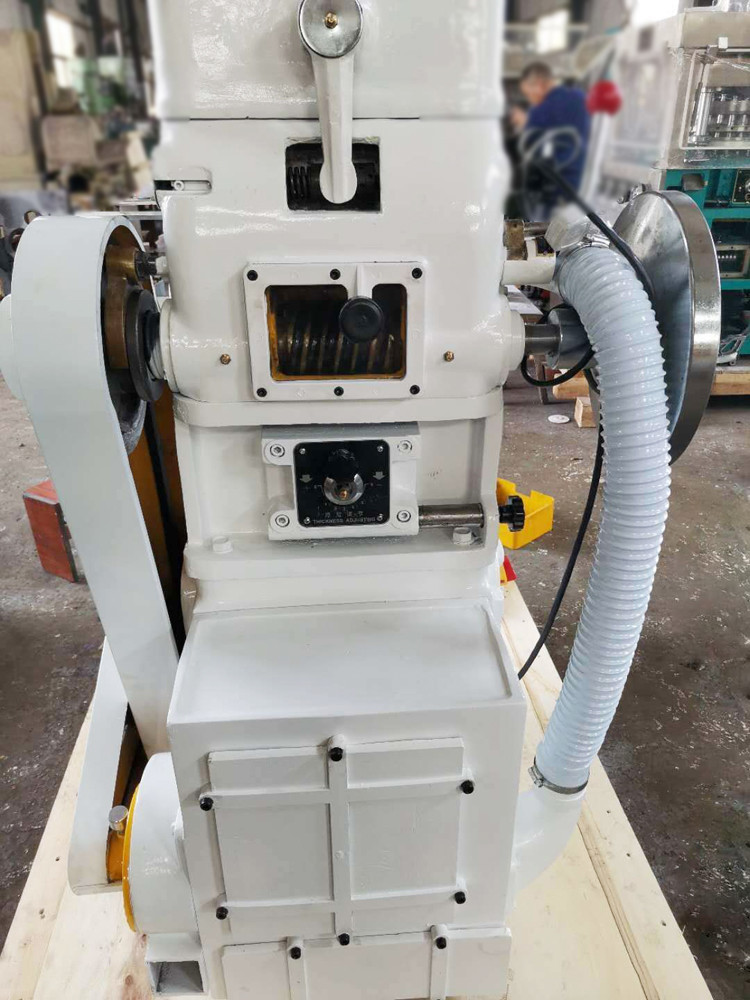

Glass Mosaic 60 KN Rotary Tablet Press Machine For Paint 2


  • This machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets.
  • During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted.
  • The mechanical buffer unit will prevent punches and apparatus from overload damage.
  • A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.
  • With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
    With dust seal ring on punches, avoid powder leakage from turret table.
    It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
    It is equipped with overload protection device, when pressure overload, it can stop automatically.

One station service to make sure our customer get good products and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours, except the special reasons once you enquiry us.

(4) Additives: installation book, Manual book, tool box will be sent with machine.
