Heavy Duty Hydraulic Tablet Press Machine Flexible Low Power Consumption Single Punch Tablet Pressing

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS16T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Power Supply: 220V 50HZ Filling Depth: 150mm
Product Name: Feed Hydraulic Tablet Press Machine Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

hydraulic press equipment

,

medicine tablet making machine

Product Description

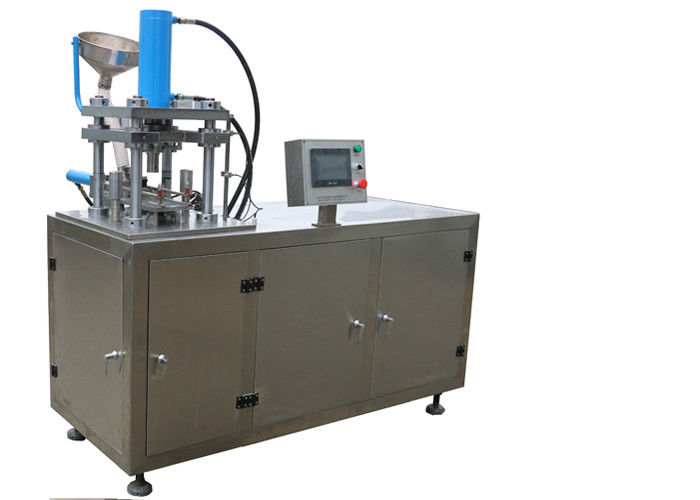

Heavy Duty Hydraulic Tablet Press Machine Flexible Low Power Consumption Single Punch Tablet Pressing



Press machine adopts visual operation interface, graphical operation and guidance, and it is very simple to get started. In terms of man-machine interaction, hydraulic cold press machine fully takes into account the specific requirements for use, manual, semi-automatic, fully automatic control, free to switch at any time. Nominal pressure, opening height, slider stroke, operating speed, animal licking block press machine worktable size, length and width of the fuselage, can be customized according to your special requirements


Jiangsu Jintan Lishen Machinery Co., Ltd, is a comprehensive private technology enterprise that integrates the functions of tablet press machine research, design, development, manufacturing and sales.

We always uphold the business philosophy of "quality first, promise to service, honest management, satisfy customers' needs" and "Pursue perfection, keep improving, and constantly innovating. High-quality after-sales service and technical follow up works remove concerns of most customers.



Tablet Press Machine Applications:

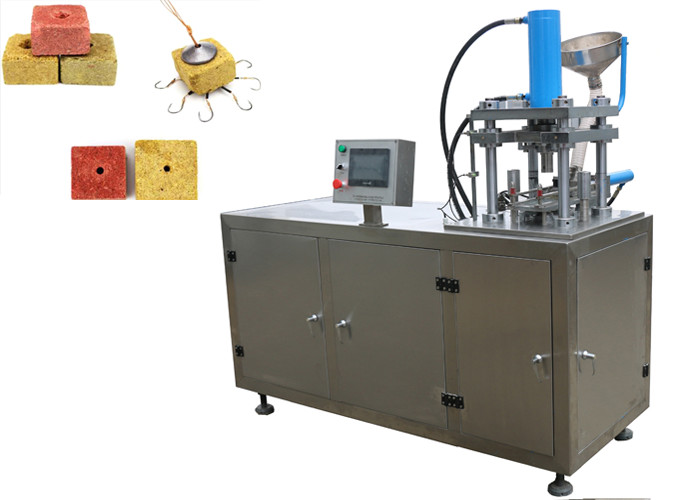

  1. Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
  2. Electronics Batteries: Thermistor, integrated circuit components, carboniferous brush films...
  3. Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets...
  4. Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...



Before-sale Service:

1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase a suitable machine.
3. A warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
4. Capacity
B. We will design, customize and make dies for you.



After-sale Service

1. All the machines will be adjusted and tested before shipping. Installing, debugging and training to workers are all offered, after customers receiving our tablet press machine



Tablet Press Machine Technology and Advantage:

* Demoulding Protection: Protecting the compressed tablet well, which are damaged by improper mold forces in the course of the production.

* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.

* Different layer different colors: Can compress the tablet with different layers and different colors.

* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.

* Safety Protection: If some abnormal condition occurs, it will stop immediately and minimize its negative effects.



Technical Parameters:

Production Capacity 5-7molds/min(the actual speed according to product process requirement)
Working Pressure ≤16T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,Down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 3. 7kw 5. 5kw(Servo)
Weight&Size Approximately:800kg 1500mm*750mm*1600mm(L*W*H)



Company Information:

Changzhou Jintan Lishen Machinery Co., Ltd. is a professional manufacturer and supplier of tablet press machinery and equipment in China.

We have a well-experienced team to manufacture tablet press machines and equipment and a professional design institute. With rich experiences in tablet block machinery and equipment field and numbers of professional engineers, we have designed and developed tablet block machinery in different tonnage.
Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
In Lisen, you can get your desired tablet block machine with the best price and good quality. Welcome your inquiries from all over the world.
