Product Details:
|
|
Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Lisen |
Certification: | BV |
Model Number: | LS245T |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 35-65 working days |
Payment Terms: | TT, LC |
Supply Ability: | 20000/Year |
Detail Information |
|||
Working Pressure: | ≤200T | Filling Depth: | ≤150mm |
---|---|---|---|
Product Name: | Hydraulic Tablet Press Machine | Application: | Tablet Press |
Product Mold: | Multi-cavity Mould | Apply To Shape: | Round,square,or Special-shaped |
Standard: | BV | Type: | Hydraulic Tablet Press |
High Light: | electric hydraulic press machine,small hydraulic press machine |
Product Description

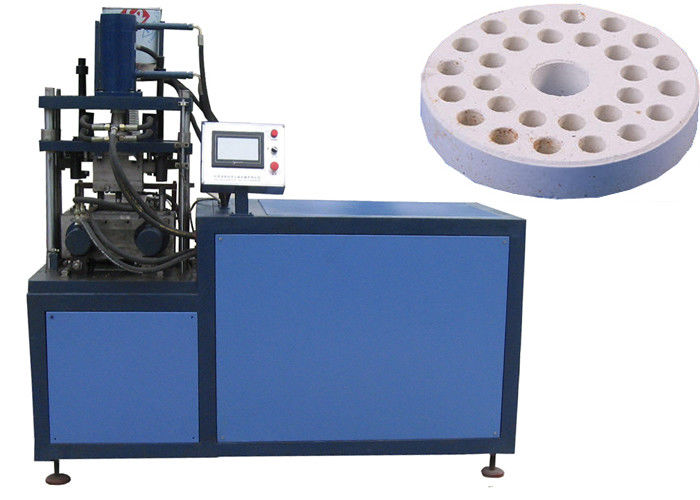

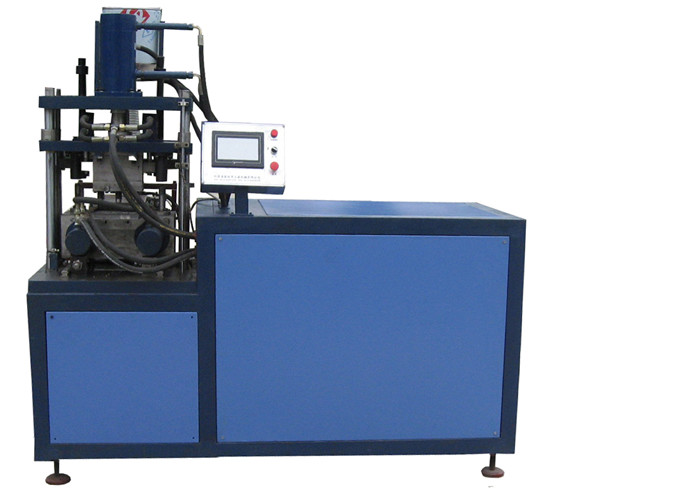

High Speed 3-5 Molds/Min Ball Press Machine 200 Ton Working Pressure
New type rotary tablet press gives you better quality and price, automatic tablet press for pressing granular raw materials into
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Full Features
1. The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the GMP requirement.
2. It has transparent windows, so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance are easier
3. The machine can press not only round tablets, but also different geometrical shape tablets, double-layered and annular tablets; the tablets may have the impressed letters on both sides
4. All the controllers and devices are located in one side of the machine, so that it can be easier to operate
5. An overload unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs
6. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.
Technical Parameters:
Production Capacity | 3-5molds/min(the actual speed according to product process requirement) |
Working Pressure | ≤200T(1. step-less adjustment 2. can be bidirectional compress) |
Working Stroke | Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Filling Depth | ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
Motor Power | 18. 5kw 22kw(Servo) |
Weight&Size | Approximately:4800kg 2500mm*1100mm*2100mm(L*W*H) |
Competitive Advantages:
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
Detailed Information:
1. The main components of the electric control cabinet adopt international famous brand components, PLC adopts Siemens products,
and the human-machine interface adopts Siemens 10-inch series color touch screen.
2. Low-voltage electrical products use ABB, Schneider, OMRON and other internationally renowned brand products
3. Frequency converter adopts Siemens brand.
4. The bearing series are all use Japan NSK products.
5. The punching plate is processed with corrosion-resistant materials and has good rust and corrosion resistance.
6. The pressure sensing acquisition and transmission system uses imported high-precision sensors and amplifiers to realize real-time pressure detection and analysis. Automatically adjust the depth of powder filling of the tablet press to achieve automatic control of tablet production. At the same time, the mold damage of the tablet press and the supply of the powder are monitored to provide a safety protection. Greatly reduce production costs, improve the pass rate of tablets, and achieve one-person multi-machine management.
Before-sale Service
1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase suitable machine.
3. Warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
4. Capacity
B. We will design, customize and make dies for you.
After-sale Service
1. All the machines will be adjusted and tested before shipping. Installing,debugging and training to workers are all offered, after customers receiving our tablet press machine
FAQ
1. What about your tablet press machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001 certificate; already exported into many countries and areas; already got customer’s good reputation.
2. How can you ensure the machine’s quality after we ordered?
Before the delivery, we will send you machine’s pictures and videos, or you can come to factory and check the tablet press machine by yourself, or by the third party inspection organization, contacted by your side.
3. What about your installation service and sales service for your tablet press machine?
1> Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2> We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3> It is free to train your worker in our factory or in your side or by video.
