Honey Powder Prouducts 20mm Rotary Tablet Press Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Power Supply: 220V 50HZ Voltage: 220V/380V
Product Name: Automatic Rotary Tablet Press Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

20mm tablet pill press machine


Honey tablet deduster machine

Product Description

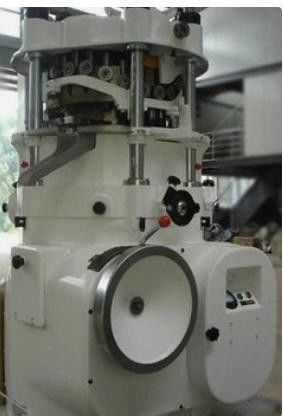

Rotary Tablet Press Machine / Tablets Honey Making Machine / Tablet Press For Honey Powder Prouducts


These tablet press machine have been developed to meet the required engineering standards as well as deliver the required efficiency and productivity.

Important notes on the Rotary tablet press machine:

They have been manufactured with adequate stainless steel covers which reduce the noise levels and create a dust free operation.
All the models have been made easy to operate, safe to handle, easy to clean and service and there is reduced change over time from one tool to the next.
The dies and punches are developed with the most recent technologies for longer life and low wear and tear.
Rotary Tablet Press Machine is essentially the machine used to make tablets in many sizes as per the requirements. It can transform it from the powder form to tablet form. The rotary tablet press machin is mainly implemented in the food and pharmaceutical industry to produce medicine tablets, however, they also have other applications. Tablet compression machine can be useful in making tablets form of other cleaning products and that for the cosmetic industry as well.

The process of tableting is a two step action where the first step includes lowering the bottom punch into the die to create a cavity for the granulated feed stock. The movement of lowering is controlled by the machine automatically as per the settings. Any excess filling is scraped from the top to allow the upper punch to be brought down and come in contact with the powder. This is done with force to the high pressure compression rolls and helps fuse the material together and form a hard tablet. The lower punch helps eject the tablet at the end of the process by raising it again


Detail Information

The tablet press machine is made of stainless steel, which conform with GMP standard. And it is easy to get the light demolition, internal cleaning convenience purposes. Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components. All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately. The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free ,easy release the heat and the control panel can be design to demonstrate in different foreign languages.


1) Main technical data and production capacity
Punch die quantity on revolving table 25
Maximum tablet force 60 KN
Maximum tablet diameter 20mm
Maximum tablet tliickness 9mm
Maximum depth of filling 15mm
Fluctuation punch diameter 42 mm
Uprush total letigt.h 227 mm
Downrush total length 177 mm
Die thickness 25 mm
Die diameter 42 mm
Rotating speed range 6~10 Rev/min
2)Poduction capacity
Single punch ($20) 30000/hour
Double punch ($12) 60000/hour
Three punch ($9) 90000/hour
Four punch ($6) 120000/hour
Host net weight 1810 Kgs
Auxiliary machine net weight 85Kg
Host dimensions(length*width*height) 1015*1182*1800(mm)
Auxiliary machine dimensions(length*width*height) 654*508*938(mm)
Host power 3KW

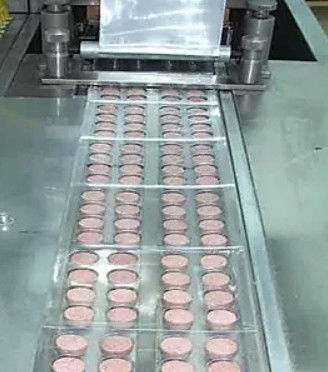

Honey Powder Products: Lozenges and Honey Powder tablets and Sachets.

Pharmaceutical Industry...


Honey Powder Prouducts 20mm Rotary Tablet Press Machine 0

Tablet Press Machine Technology and Advantage:

* Demoulding Protection: Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.

* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.

* Different layer different color: Can compress the tablet with different layers and different colors.

* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.

* Safety Protection: If some abnormal condition occurs,it will stop immediately and minimize its negative effects.



  • This machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets.
  • During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted.
  • The mechanical buffer unit will prevent punches and apparatus from overload damage.
  • A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.
  • With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
    With dust seal ring on punches, avoid powder leakage from turret table.
    It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
    It is equipped with overload protection device, when pressure overload, it can stop automatically.

One station service to make sure our customer get good products and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours, except the special reasons once you enquiry us.

(4) Additives: installation book, Manual book, tool box will be sent with machine.
