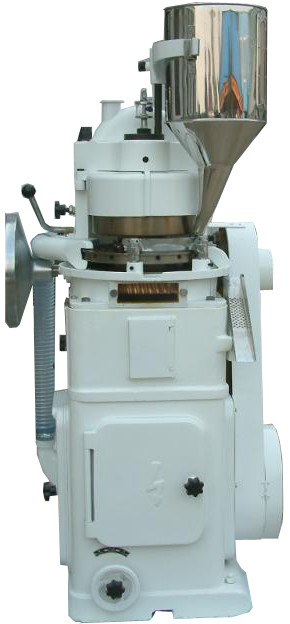

Hydraulic 220V 50HZ Rotary Tablet Compression Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS-17
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Power Supply: 220V 50HZ Voltage: 220V/380V
Product Name: Automatic Rotary Tablet Press Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

tablet press making machine

,

rotary tablet punching machine

Product Description

High Efficient tablet Press/ ZP-17 rotary tablet press machinery



Specifications:



Working Pressure:≤60KN
Max.Tablet Diameter:20mm
Max.Tablet Thickness:6mm
Max.Speed:22-35/Minute
Max. Capacity:36000pcs/hour
Max.Filling Depth:≤150mm
Product Mould:one mould with 17 dies
Motor Power:2.2kw
Weight&Size:Approximately: 560kg 760mm*550mm*1550mm(L*W*H)"



Detail Information

The tablet press machine is made of stainless steel, which conform with GMP standard. And it is easy to get the light demolition, internal cleaning convenience purposes. Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components. All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately. The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free ,easy release the heat and the control panel can be design to demonstrate in different foreign languages.



Tablet Press Machine Technology and Advantage:

* Demoulding Protection: Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.

* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.

* Different layer different color: Can compress the tablet with different layers and different colors.

* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.

* Safety Protection: If some abnormal condition occurs,it will stop immediately and minimize its negative effects.



Features

  • This machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets.
  • During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted.
  • The mechanical buffer unit will prevent punches and apparatus from overload damage.
  • A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.
  • With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
    With dust seal ring on punches, avoid powder leakage from turret table.
    It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
    It is equipped with overload protection device, when pressure overload, it can stop automatically.


One station service to make sure our customer get good products and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours, except the special reasons once you enquiry us.

(4) Additives: installation book, Manual book, tool box will be sent with machine.
