Product Details:
|
|
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Lisen |
| Certification: | BV |
| Model Number: | LS-200T |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 35-65 working days |
| Payment Terms: | TT, LC |
| Supply Ability: | 20000/Year |
|
Detail Information |
|||
| Working Pressure: | ≤200T | Filling Depth: | ≤150mm |
|---|---|---|---|
| Product Name: | Briquette Press Machine | Application: | Tablet Press |
| Product Mold: | Multi-cavity Mould | Apply To Shape: | Round,square,or Special-shaped |
| Standard: | BV | Type: | Hydraulic Tablet Press |
| High Light: | powder compression machine,single punch tablet compression machine |
||
Product Description

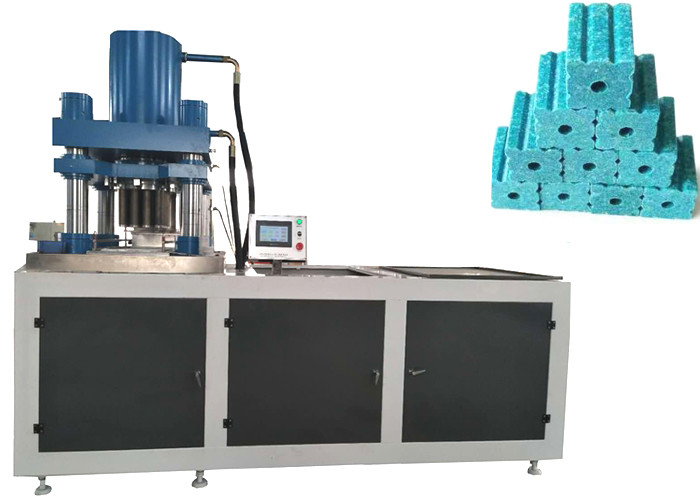

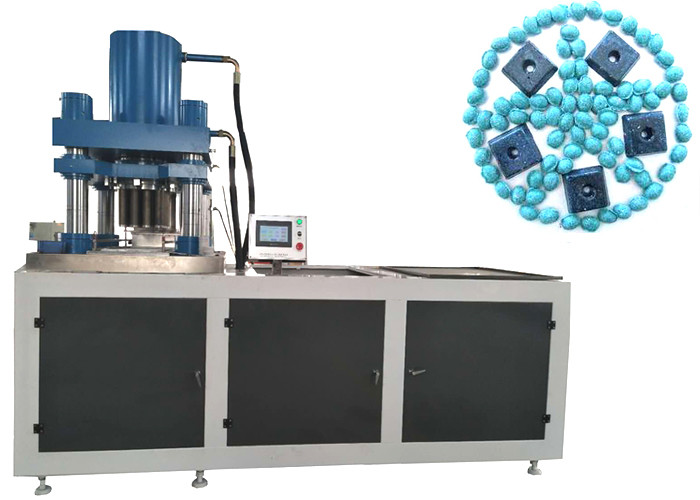

Auomatic Hydraulic Single Punch Rotary Tablet Press for Rat Bait Wax / Tablets Making / Tablet Press Machine
A hydraulic tablet press is a compression molding press that operates by exerting hydraulic pressure, or fluid pressure, via a cylinder on the object being pressed for a specific purpose. Manufacturers use hydraulic presses to stamp metal material into a wide range of finished products and parts. They can also use them to perform other forming processes, including: blanking, clinching, deep drawing, forging, molding, punching and shearing.
The hydraulic press industry is competitive, but in a sea of competitors, we are among the best! We offer ISO 9000:2000 certification, and we work with customers to create the ideal designs for their unique circumstances. Our hydraulic press designs are one-of-a-kind. We work with our customers to determine the best hydraulic presses for their applications.
When it comes to the hydraulic press industry, you want nothing but the very best! We have over 20 years of experience in the industry manufacturing quality products for our customers.
Punch and Die for Reference:
It can produce all types of round tablets, irregular tablets and tablets of engraved on double sides. Mainly used in pharmaceutical and foodstuff industries and also applicable to chemical industries,to press various granular materials into tablets in a highly effective & efficient method.It is equipped with advance features are suitable for producing bulk quantity of tablets in cost effective manner.
The other features need to consider while design Tablet Press Machines are operator safety, easy to operate and clean, minimum change over time for tool and product.
Technical Parameters:
| Production Capacity | 3-5molds/min(the actual speed according to product process requirement) |
| Working Pressure | ≤200T(1. step-less adjustment 2. can be bidirectional compress) |
| Working Stroke | Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Filling Depth | ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
| Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
| Motor Power | 18. 5kw 22kw(Servo) |
| Weight&Size | Approximately:4800kg 2500mm*1100mm*2100mm(L*W*H) |
Tablet Press Machine Applications:
Before-sale Service
1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase a suitable machine.
3. A warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
4. Capacity
B. We will design, customize and make dies for you.
After-sale Service
1. All the machines will be adjusted and tested before shipping. Installing, debugging and training to workers are all offered, after customers receiving our tablet press machine
Tablet Press Machine Technology and Advantage:
* Demoulding Protection: Protecting the compressed tablet well, which are damaged by improper mold forces in the course of the production.
* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.
* Different layer different colors: Can compress the tablet with different layers and different colors.
* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.
* Safety Protection: If some abnormal condition occurs, it will stop immediately and minimize its negative effects.
Company Information
Changzhou Jintan Lishen Machinery Co., Ltd. is a professional manufacturer and supplier of tablet press machinery and equipment in China.
We have a well-experienced team to manufacture tablet press machines and equipment and a professional design institute. With rich experiences in tablet block machinery and equipment field and numbers of professional engineers, we have designed and developed tablet block machinery in different tonnage.
Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
In Lisen, you can get your desired tablet block machine with the best price and good quality. Welcome your inquiries from all over the world.
