Product Details:
|
|
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Lisen |
| Certification: | BV |
| Model Number: | LS100T |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 35-65 working days |
| Payment Terms: | TT, LC |
| Supply Ability: | 20000/Year |
|
Detail Information |
|||
| Standard: | BV | Type: | Hydraulic Tablet Press |
|---|---|---|---|
| Working Pressure: | ≤100T | Filling Depth: | ≤150mm |
| Product Name: | Pharmaceutical Tablet Press Machine | Application: | Tablet Press |
| Product Mold: | Multi-cavity Mould | Apply To Shape: | Round,square,or Special-shaped |
| High Light: | pill compressor machine,tablet pill press machine |
||
Product Description

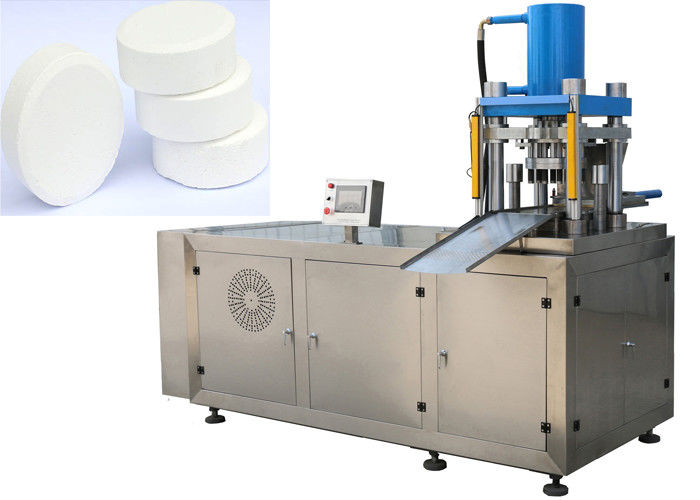

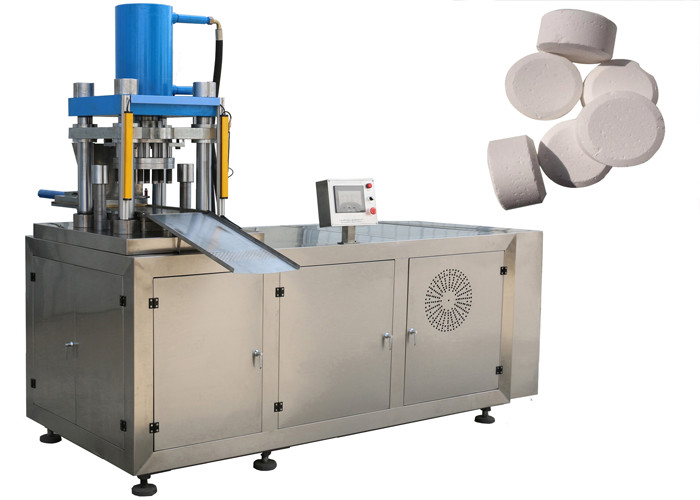

Integrated Tablet Punching Machine / Tablet Presses / Pill Punch Press / Pharmaceutical Tablet Punch Machine
| 1. These presses are suitable for processing plastic materials, such as stamping, bending, cramping and drawing metal sheet, ect. It can also be used for straightening, pressing, plastics moulding and sintered parts compacting. |
| 2. It is suitable for the press fitting and stretch forming of metal and plastic products as well as the movements of coining and overprinting. |
| 3. The press has its own independent dynamic mechanism and electric system and uses pushbuttons controlling system. |
| 4. Three operation modes of adjustment, manual and semi-auto operations can be realized. |
| 5. It employs four-column guiding device and ejecting device, which can automatically eject workpieces with accurate guiding and fast speed. The drawing device can be added to this equipment in order to change moulds easily. |
| 6. The machine, with a high degree of automatization, is particularly suitable for the mass production of parts. It can be used as assembly line with several such equipments. |
Main Features
Quality Assurance Service:
· We support SAMPLE making and testing with your raw material.
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Easily Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.
About US
1. LISEN has been engaged in the press machine many years ago. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each of the incoming material and the finished press machine carefully, so that we can supply the best machine for customers.
3. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer press machine based on your requests with the best quality and the most competitive price. Win-win is our ultimate purpose.
Technical Parameters:
| Production Capacity | 4-6molds/min(the actual speed according to product process requirement) |
| Working Pressure | ≤100T(1. step-less adjustment 2. can be bidirectional compress) |
| Working Stroke | Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Filling Depth | ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
| Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
| Motor Power | 11kw 15kw(Servo) |
| Weight&Size | Approximately:3200kg 2500mm*1100mm*2300mm(L*W*H) |
Applications
| Agriculture: | Feed block, fertilizer tablets, animal food, animal salt lick |
| Electronics Batteries: | Thermistor, integrated circuit components, carboniferous brush films... |
| Health Products: | calcium, propolis tablets, effervescent tablets, bath salts tablets... |
| Chemical: | disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials... |
