Changzhou Jintan Lishen Macinery Co., Ltd

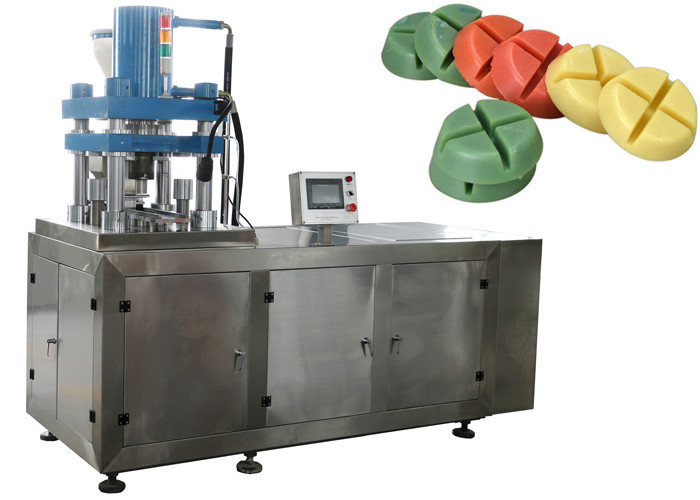

Intelligently Controlled Dental Wax Press Machine Multi - Cavity Mould

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS60T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Working Pressure: ≤60T Filling Depth: ≤100mm
Product Name: Wax Press Machine Application: Wax Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

powder compression machine

,

single punch tablet compression machine

Product Description

Intelligently Controlled Dental Wax Press Machine Multi - Cavity Mould



New type rotary tablet press gives you better quality and price, automatic tablet press for pressing granular raw materials into

This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.



Main structurs:

1. Hydraulic power part - manual and electric.
2. Mechanical control
3. Working cylinder part.
4. Hydraulic power part consists of hydraulic oil pump, elastic coupling motor and connection plunger pump.
5. The mechanical control part is controlled by the distribution box and the combination button switch.
6. Tubing is connected by high pressure seamless steel pipe.



(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours,except the special reasons once you enquiry us.

(4) Additives: installation book, Manual book, tool box will be sent with machine.



Advantages of Our Tablet Press Machine:

1. With force feeder, improve granule flow-ability and filling performance, ensure filling precision, avoiding too much dust and cross pollution.

2. PLC and touch screen control, operation is easy and observable.

3. Perfect tablet pressing system, twice compress forming, reasonable framework with proper space and large pressure roller, the tablet would be pressed in longer time with no tablet weight difference.

4. It can automatically record all the operation parameter for different batch production, convenient recovery of production for same specification tablets.

5. Shell is made of stainless steel, fully enclosed type. Surface of turret is covered with harderned layer to make it wear resistant, meeting GMP standards.

6. Pressure sensor protection device would stop the machine to protect the punch mould.

7. Automatic oil and grease lubrication system for pressure roller, punches, reduce abrasion and prolong service life of machine.

8. Special oil proof, dust proof and noise proof design



Using Guides

1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.

2. Do not use the wet materials in order to avoid destroying machine.

3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.

4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.

5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts





Technical Parameters:

Production Capacity 5-7molds/min(the actual speed according to product process requirement)
Working Pressure ≤60T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 7. 5kw 11kw(Servo)
Weight&Size Approximately:2800kg 2400mm*850mm*2100mm(L*W*H)



How to choose proper machine / equipment?

Kindly reply us the following items:

- what is the product you do

- raw material

- the production capacity per hour or per day.

- power supply, such as Voltage, Hz, and Phase

Our technical engineer would suggest the proper model with necssary information for your reference. And the production line in workshop could be supplied as per your inquiry.



After sale service.

We supply operation training for workers, and installation in your location.

Regular and considerate inquiry in the email would be supplied for machine running and usual maintenance.
