Isolated Hydraulic Statio Pharmaceutical Tablet Press Machine Automatic Powder Forming Machinery

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS16T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Certification: CE ISO9001 Product Mold: Multi-cavity Mould
Filling Depth: 150mm Product Name: TCCA Chlorine Pharmaceutical Tablet Press Machine
Application: Tablet Press Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

pill compressor machine

,

tablet pill press machine

Product Description

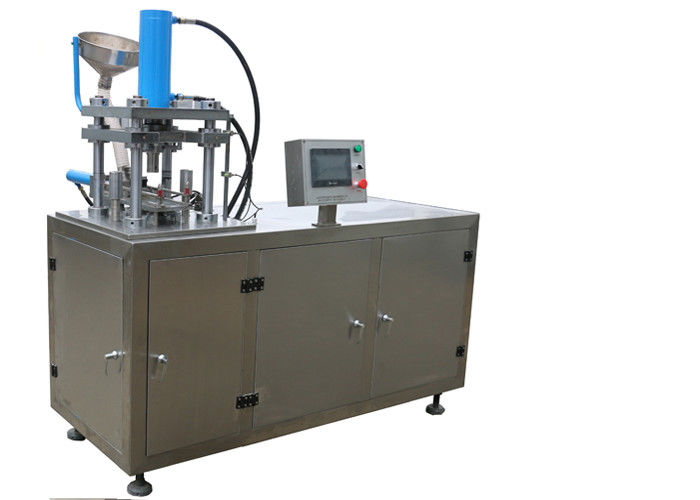

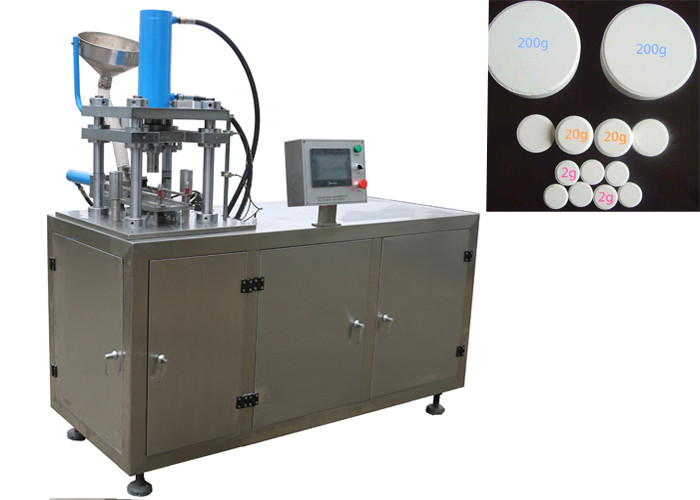

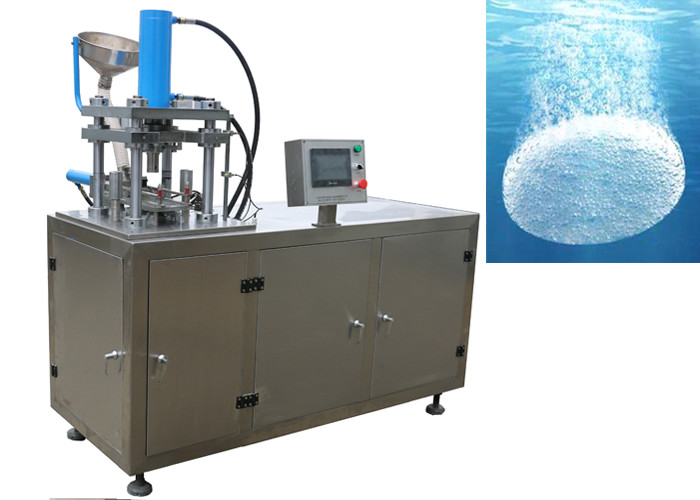

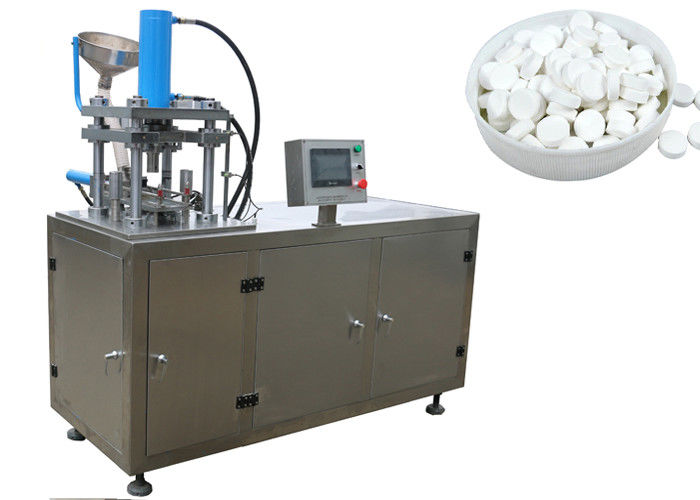

Isolated Hydraulic Statio Pharmaceutical Tablet Press Machine Automatic Powder Forming Machinery



It has transparent windows so that press condition can be observed clearly and the window can be opened Cleaning and maintenance is easier.
The lay-out of all the controllers and the operate parts is reasonable.
The speed adjustment of the driver is controlled by the frequency conversion device.
All the drive devices are located inside the machine so keep the machine clean.
A overload protection unit is included in the system to avoid the damage of the punches and apparatus ,when overload occurs, the machine stops automatically.



Advantages of Our Tablet Press Machine:

1. With force feeder, improve granule flow-ability and filling performance, ensure filling precision, avoiding too much dust and cross pollution.
2. PLC and touch screen control, operation is easy and observable.
3. Perfect tablet pressing system, twice compress forming, reasonable framework with proper space and large pressure roller, the tablet would be pressed in longer time with no tablet weight difference.
4. It can automatically record all the operation parameter for different batch production, convenient recovery of production for same specification tablets.
5. Shell is made of stainless steel, fully enclosed type. Surface of turret is covered with harderned layer to make it wear resistant, meeting GMP standards.
6. Pressure sensor protection device would stop the machine to protect the punch mould.
7. Automatic oil and grease lubrication system for pressure roller, punches, reduce abrasion and prolong service life of machine.
8. Special oil proof, dust proof and noise proof design



Using Guides:

1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.

2. Do not use the wet materials in order to avoid destroying machine.

3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.

4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.

5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts



Technical Parameters:

Production Capacity 5-7molds/min(the actual speed according to product process requirement)
Working Pressure ≤16T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,Down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 3. 7kw 5. 5kw(Servo)
Weight&Size Approximately:800kg 1500mm*750mm*1600mm(L*W*H)



How to choose proper machine / equipment?

Kindly reply us the following items:

- what is the product you do

- raw material

- the production capacity per hour or per day.

- power supply, such as Voltage, Hz, and Phase

Our technical engineer would suggest the proper model with necssary information for your reference. And the production line in workshop could be supplied as per your inquiry.



After sale service:

We supply operation training for workers, and installation in your location.

Regular and considerate inquiry in the email would be supplied for machine running and usual maintenance.
