Changzhou Jintan Lishen Macinery Co., Ltd

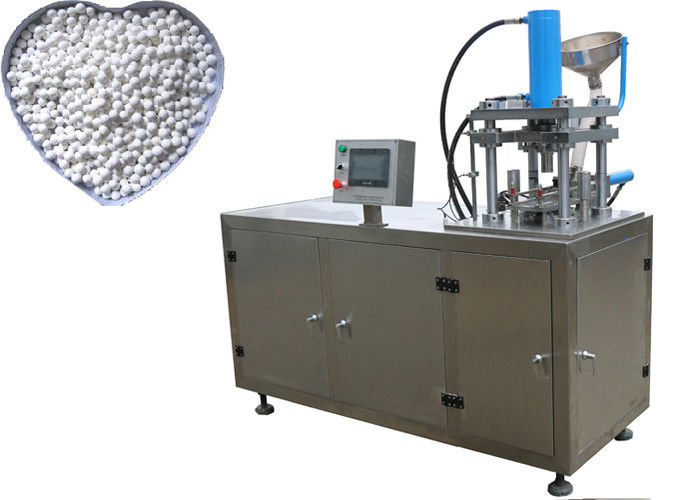

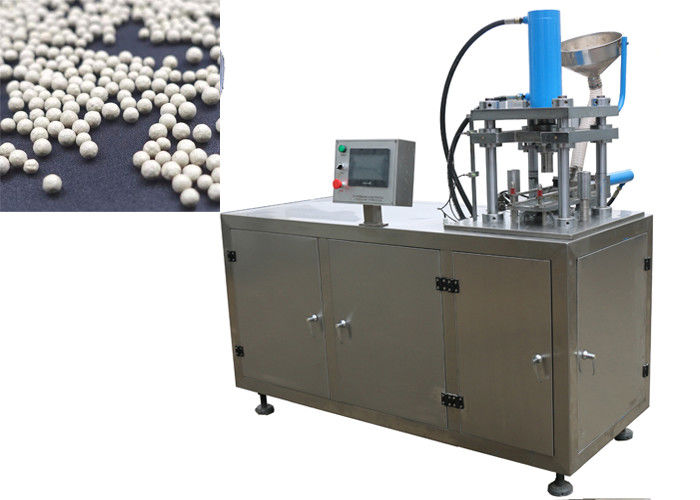

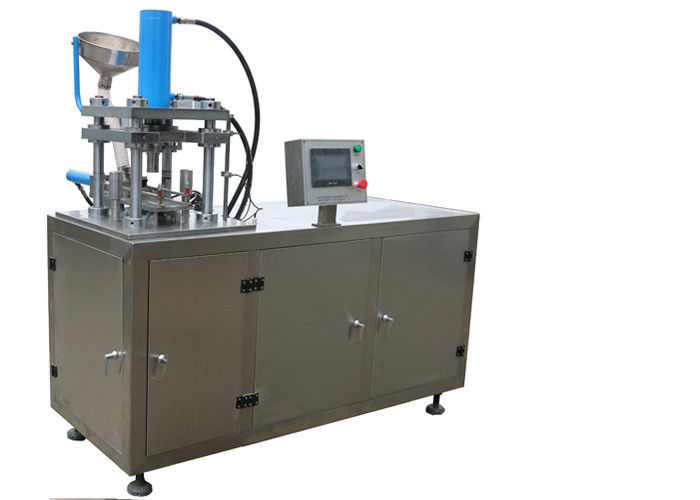

LS16T Desiccant Automatic Tablet Press Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS16T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Working Pressure: ≤16T Filling Depth: 150mm
Product Name: Feed Hydraulic Tablet Press MachineDesiccant Pharmaceutical Tablet Press Machine Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

tablet punching machine

,

automatic pill press machine

Product Description

Desiccant Pharmaceutical Tablet Press Machine





Product Application

1. Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2. English and customer country local language, bilingual operation interface, easy to operate.
3. Can save 50% - 70% energy.
4. Parameters and Speed can be adjusted on the touch screen, easy to operate.(Machine without servo system, speed can not been adjusted.



Main structurs:

1. Hydraulic power part - manual and electric.
2. Mechanical control
3. Working cylinder part.
4. Hydraulic power part consists of hydraulic oil pump, elastic coupling motor and connection plunger pump.
5. The mechanical control part is controlled by the distribution box and the combination button switch.
6. Tubing is connected by high pressure seamless steel pipe.



Technical Parameters:

Production Capacity 5-7molds/min(the actual speed according to product process requirement)
Working Pressure ≤16T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,Down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 3. 7kw 5. 5kw(Servo)
Weight&Size Approximately:800kg 1500mm*750mm*1600mm(L*W*H)



Descriptions and Advantage:

  1. Fully CNC Control Design

Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology.



  1. Fully Intelligent Operation Design

Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.



  1. Fully-automatic Material Filling Design

The filling method and dosage can be intelligently controlled, rapidly and stably, which can save much time and labor.



  1. Isolated Hydraulic Station Design

Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.



  1. Reasonable Structure Design
  1. energy saving and environmental protection
  2. small space occupation
  3. superior performance
  4. simple operation
  5. easy maintenance and so on.



Technology and Advantage:



  1. Demoulding Protection

Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.



  1. Uniform Density

Uniform density of the compressed tablet can be ensured through special technology.



  1. Different layer different color

Can compress the tablet with different layers and different colors.



  1. Multiple Production Capacity

Production capacity can be raised many times under certain conditions.



  1. Safety Protection

If some abnormal condition occurs,it will stop immediately and minimize its negative effects.



Applications



Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
Electronics Batteries: Thermistor, integrated circuit components, carboniferous brush films...
Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets...
Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...



Before-sale Service

1. Professional consultation about each type of machine is provided.

2. Free testing service is offered to help customers purchase suitable machine.

3. Warm welcome to visit and evaluate our factory.

4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:

A. We would like to recommend machines based on your requirements as following:

1. Product name

2. Products' size and shape

3. Products' weight

4. Capacity

B. We will design, customize and make dies for you.



After-sale Service

1. All the machines will be adjusted and tested before shipping.

2. Installing,debugging and training to workers are all offered, after customers receiving our tablet press machine.
