Product Details:
|
|
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Lisen |
| Certification: | BV |
| Model Number: | LS-60T |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 35-65 working days |
| Payment Terms: | TT, LC |
| Supply Ability: | 20000/Year |
|
Detail Information |
|||
| Material: | Stainless Steel | Operation: | Automatic Operation |
|---|---|---|---|
| Product Name: | Camphor Tablet Making Machine | Application: | Wax Press |
| Product Mold: | Multi-cavity Mould | Apply To Shape: | Round,square,or Special-shaped |
| Standard: | BV | Type: | Hydraulic Tablet Press |
| High Light: | kapoor tablet making machine,camphor making machine |
||
Product Description

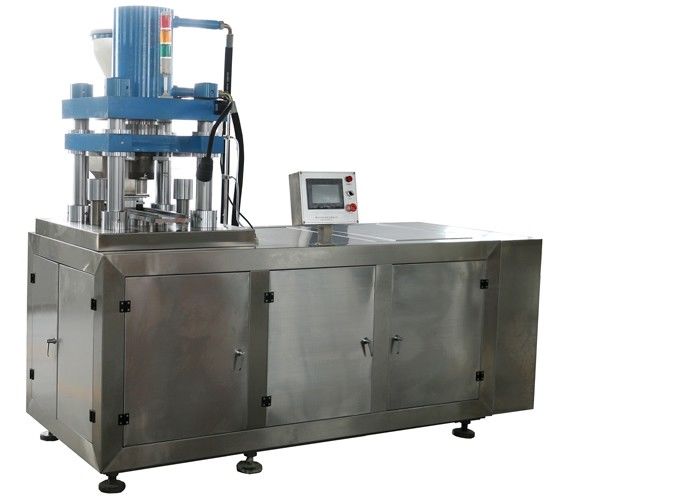

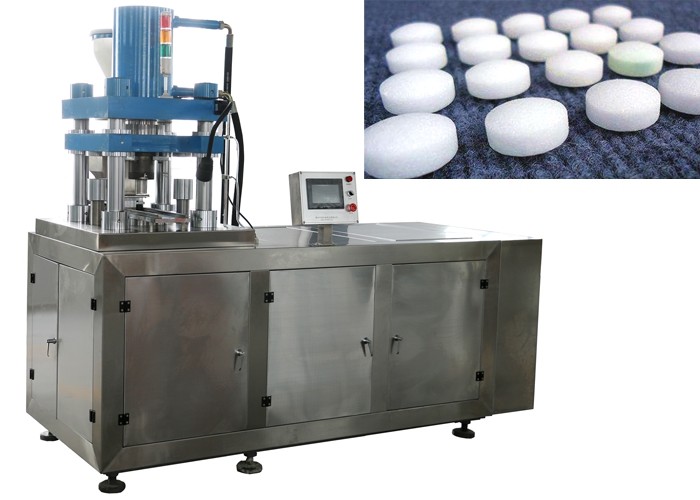

Naphthalene Balls Camphor Tablets Camphor Blocks Making Machine Camphor Tablet Press
Fast product changeover, improved productivity, cross-contamination prevention and a safe working environment.
High throughput of up to 1000-1,0000 tablets/h.
Dual Control reduces wastage and ensures batch consistency.
Extended dwell time at pre-compression.
Reduced risk of capping and lamination.
Complete process control including all peripherals for lights-out production.
This Tablet Press features a larger turret, containing punch stations up to 88 (or as your need)and making it capable of production levels. It is the machine of choice for high volume applications when minimal downtime and environment protection are key.
The talet press features the high containment applications. It encloses all product-contact parts in a sealed unit and can quickly and easily be removed from the machine in a contained manner for cleaning and replaced with a pre-prepared unit to allow production to resume in 30 minutes.
Technical Parameters:
Production Capacity | 5-7molds/min(the actual speed according to product process requirement) |
Working Pressure | ≤60T(1. step-less adjustment 2. can be bidirectional compress) |
Working Stroke | Up stroke≤250mm,down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Filling Depth | ≤100mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
Motor Power | 7. 5kw 11kw(Servo) |
Weight&Size | Approximately:2800kg 2400mm*850mm*2100mm(L*W*H) |
Characteristics:
Design of GMP
High quality all stainless steel constructions
Reliable safety sealing system and dust-proof system
High visibility isolated door to prevent cross contamination
Easily remove partss for quick machine`s maintenance
Using Guides
1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.
2. Do not use the wet materials in order to avoid destroying machine.
3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.
4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.
5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts.
