Changzhou Jintan Lishen Macinery Co., Ltd

Overload Damage Prevention Automatic Tablet Press Machine / Rotary Tablet Press with Smooth Operation Low Noise

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS250T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Certification: CE ISO9001 Filling Depth: ≤100mm
Product Name: Dental Wax Press Machine Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

tablet compression machine

,

tablet punching machine

Product Description

Overload Damage Prevention Automatic Tablet Press Machine / Rotary Tablet Press with Smooth Operation Low Noise



Into a ball high strength, suitable for all kinds of transportation, reduce packaging costs, improve product transport capacity. Compact structure, convenient maintenance, simple operation, short process, low energy consumption, low fault rate and main roller part adopts high quality alloy steel material, greatly improving the wear resistance and compression ability, make the machine has long service life.



Brief Introduction:

This hydraulic press machine is designed to make a tablet or block in different shapes from different powder materials.

- Fully CNC Control Design: Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology.

- Fully Intelligent Operation Design: Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.

- Fully-automatic Material Filling Design: The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor.

- Isolated Hydraulic Station Design: Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.



Reasonable Structure Design:

1. energy saving and environmental protection

2. small space occupation

3. superior performance

4. simple operation

5. easy maintenance and so on.

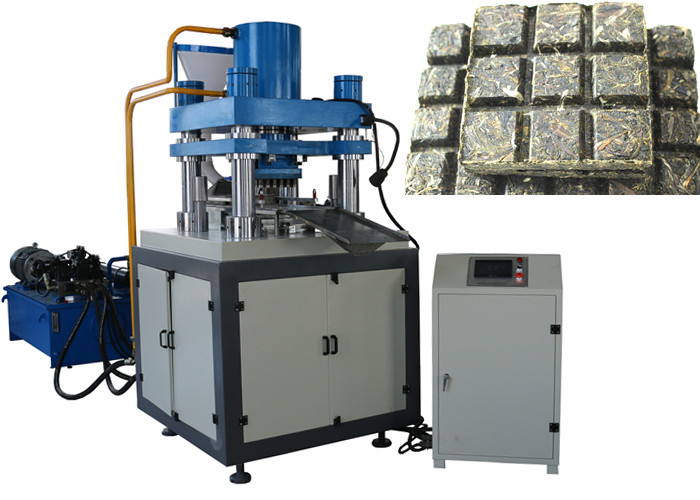

Overload Damage Prevention Automatic Tablet Press Machine / Rotary Tablet Press with Smooth Operation Low Noise 0

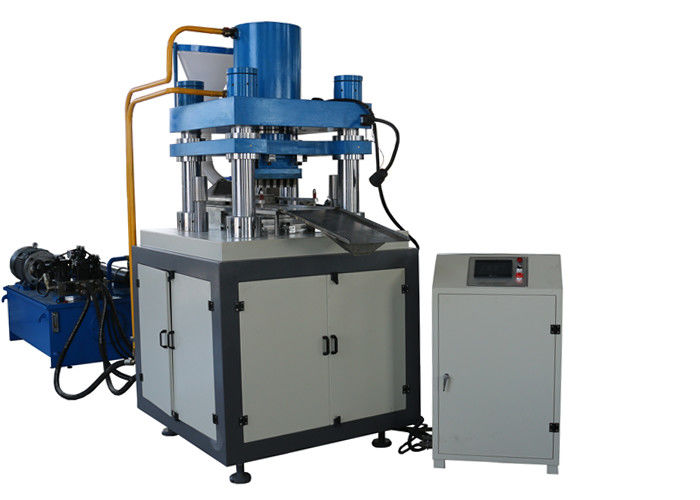

Overload Damage Prevention Automatic Tablet Press Machine / Rotary Tablet Press with Smooth Operation Low Noise 1

Tablet Press Machine Main Features:

a. Excellent performance, strong adaptability, convenient operation.
b. The machine has big pressure, could press a big tablets, for small capacity.
c. Material filling and depth adjusted.

d. Offer installation abroad after-sales service
e. Fully automatic PLC control, stable performance

f. The machine could press different tablet sizes and tablet shapes by changing the mould.

g. Offer installation abroad after-sales service



Technical Parameters:

Production Capacity 3-5molds/min(the actual speed according to product process requirement)
Working Pressure ≤250T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 18. 5kw 22kw(Servo)
Weight&Size Approximately:5200kg 3200mm*1200mm*2100mm(L*W*H)



FAQ

Q1: Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.

Q2: Is engineer available to serve overseas?

Yes, but the travel fee and daily salary are paid by the customer. So in order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3: How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can come check quality by yourself or your contacts in China.
Q4: How can I know your machine is designed for my product?
If you don't mind, you can send us samples and we will test on our press machines. During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.

Q5: How about warranty and spare parts?

We provide 1-3 years warranty and enough spare parts for the machine, and most of the parts can be found in local market also, you can get easily from us.
Q6: How to contact you?
A: Please send an inquiry and we will contact you within 24 hours.

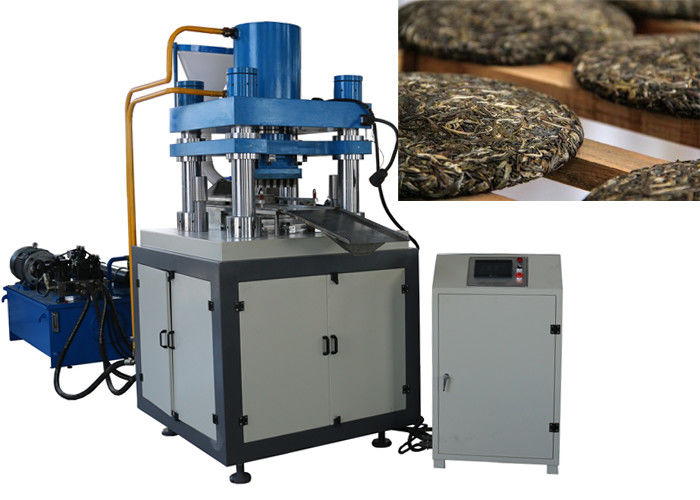

Overload Damage Prevention Automatic Tablet Press Machine / Rotary Tablet Press with Smooth Operation Low Noise 2
