Product Details:
|
|
Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Lisen |
Certification: | BV |
Model Number: | LS60T |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 35-65 working days |
Payment Terms: | TT, LC |
Supply Ability: | 20000/Year |
Detail Information |
|||
Type: | Hydraulic Tablet Press | Apply To Shape: | Round,square,or Special-shaped |
---|---|---|---|
Working Pressure: | ≤60T | Filling Depth: | ≤100mm |
Product Name: | TCCA Chlorine Pharmaceutical Tablet Press Machine | Application: | Wax Press |
Product Mold: | Multi-cavity Mould | Standard: | BV |
High Light: | single punch tablet machine,tablet pill press machine |
Product Description

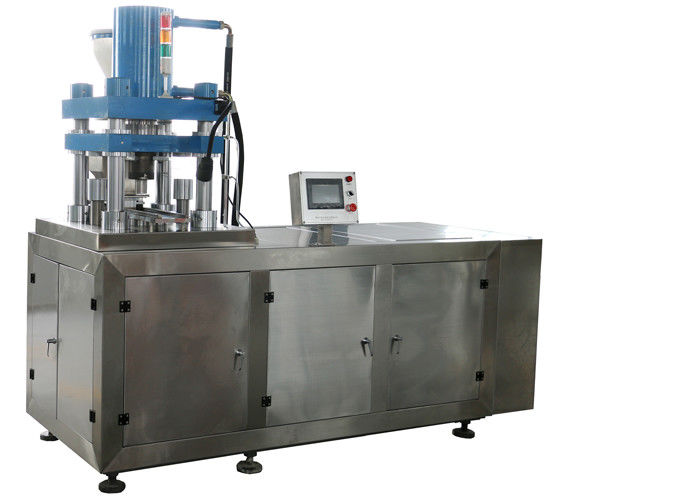

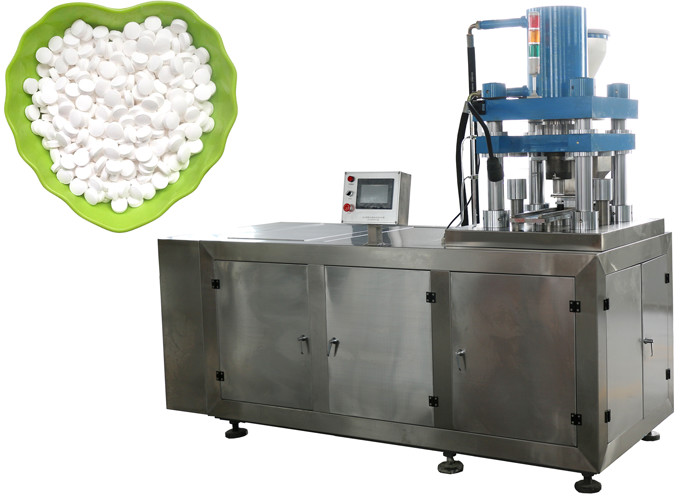

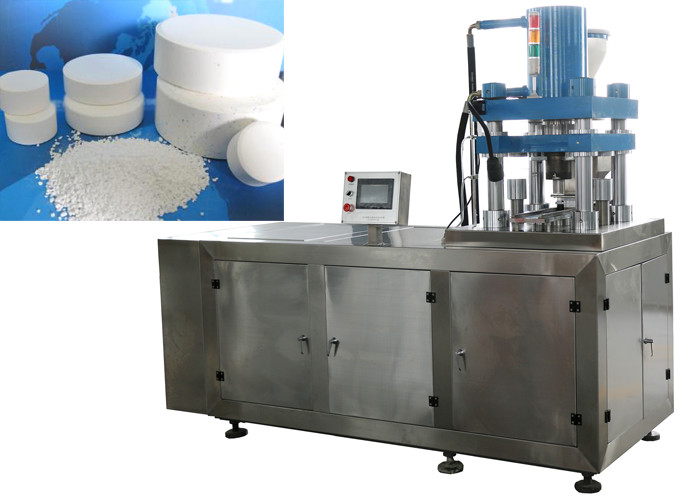

Pharmaceutical Tablet Press Machine / Single Punch Tablet Press / Super Automatic Compression Tablet Pressing Machine
Touch screen settings: |
Production speed |
Instant display of compression data |
(optional for loading cell) |
Test mode (single punch) |
Production mode (automatic production) |
Machine grounding with hopper sensor |
(sensor is optional) |
Alarm and operating led |
1. Presses is one of the new generation of plate process and developed by Nanjing Klaus CNC Machinery Co., Ltd. ,The press is for cutting, punching, blanking, bending and light stretching work. |
2. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application. |
3. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful. |
4. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service. |
Using Guides
1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged. |
2. Do not use the wet materials in order to avoid destroying machine. |
3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury. |
4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected. |
5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts. |
Hydraulic machine is our factory newly developed automatic tablet press machine,which can compress granular, powder-like material into a variety of general and special-shaped pieces. It is suitable for large-scale repression of products which require high-density, while a multi-chip module can be used for large-scale production industries, equipment, high precision, easy to learn mold replacement and installation. High degree of automation. All actions by the microcomputer PLC control, continuous automatic. Can be properly adjusted to suppress the time, pressure, product thickness. Our company has been engaged in the research,development and manufacture of non-standard tablet press machine. Our tablet press machine have broad scope of application. At the same time, offer molding manufacturing service. We have accumulated a lot of material tablet compressing experience. Besides offering tablet press machine and mould, we also can give some technical support on tablet press machine & mould for customers.
Fully CNC Control Design:
Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology
Fully Intelligent Operation Design:
Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.
Fully-automatic Material Filling Design:
The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor.
Isolated Hydraulic Station Design:
Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.
Technical Parameters:
Production Capacity | 5-7molds/min(the actual speed according to product process requirement) |
Working Pressure | ≤60T(1. step-less adjustment 2. can be bidirectional compress) |
Working Stroke | Up stroke≤250mm,down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Filling Depth | ≤100mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
Motor Power | 7. 5kw 11kw(Servo) |
Weight&Size | Approximately:2800kg 2400mm*850mm*2100mm(L*W*H) |
Tablet Press Machine Applications:
