Changzhou Jintan Lishen Macinery Co., Ltd

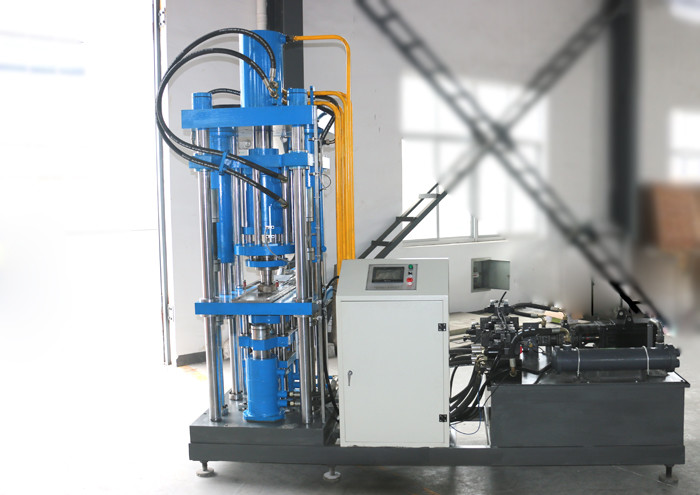

Powder Press Machine Adjustable High Accuracy Tablet Press / Single Punch Press Machinery For Chlorine Dioxide powder

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS2 100T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Working Pressure: ≤100T Filling Depth: ≤150mm
Product Name: Grinding Wheel Powder Press Machine Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press

Product Description

Powder Press Machine Adjustable High Accuracy Tablet Press / Single Punch Press Machinery For Chlorine Dioxide Powder



Features:


1. The controller and components are well arranged.

2. Frequency speed changing to control electrical component, which make sure convenient operation, smooth revolving, and safe accurate running.
3. Equipped with over-load protection apparatus, which will stop the machine automatically, when there is pressure overloads,
4. Equipped with touching screen to control running and operation.,easy operation,easy maintain,run very stable

5. With big pressure,with good forming effect

6. Can make differetn shape size product though change the mould

7. The machine one time can press 3-4 times,depend on the tablet size



Tablet Press Machine Applications:

  1. Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
  2. Electronics Batteries: Thermistor, integrated circuit components, carboniferous brush films...
  3. Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets...
  4. Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...

Quality Assurance:

· We support SAMPLE making and testing with your raw material.

· Every set of machine would be strictly inspected before shipment to ensure the quality.

· TEST RUNNING with material could be supported according to your inquiry.

· There would be quality certificate along with machine.

· Easily Wear and tear parts would be shipped with machine.

· Real-time checking on line for machine manufacturing would be supplied if you like.

· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.



Automatic Powder Press Machiner is designed for pressing round tablets from various kinds of granularmaterials. It is primary machine to fit batch production of tablets. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adiusted.
The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.
This Automatic Rotary Pill Tablet Press Machinery has won the fine Qulity Product Prize awarded by China National Medical Management Bureau.



This kind of hydraulic tablet press machine is developed for pressing blocks automatically. Also this machine can compress granular, powder-like material into a variety of general and special-shaped pieces. It is easy to learn mold replacement and installation. All actions record by the microcomputer PLC control, continuous automatic. We have not only a professional design institute and an experienced production team, but also complete and scientific quality control system. Our products can fully be in conformity with the national and industrial standards



Technical Parameters:

Production Capacity 3-5molds/min(the actual speed according to product process requirement)
Working Pressure ≤100T(1. step-less adjustment 2. bidirectional compress)
Working Stroke Upstroke ≤250mm,down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Pressing Technique Two and Two(UP and DOWN)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 11kw 15kw(Servo)
Weight&Size Approximately:4000kg 2660mm*1160mm*2800mm(L*W*H)



Tablet press machine is continuous automatic, it is the pharmaceutical, chemical, food processing, electronics and other industrial department granular materials into one of the necessary equipment, it is suitable for small batch production, laboratory, hospital departments such as pressing tablets, catalyst, sugar tablets, calcium tablets, coffee, powder metallurgy, electronic components and various agricultural fertilizer agent, etc.It can suppress all kinds of special-shaped, ring tablet, and can suppress double-sided engraved with trademarks, text and simple graphics tablets, because of the pressure, strength, particularly suited to suppress difficult molding powder tablets, such as ceramic powder, metal powder, etc



(1). Excellent performance, strong adaptability, convenient operation.
(2). Machine has big pressure, could press big tablet, for small capacity.
(3). Material filling and depth adjusted.
(4). Machine could be operated by electricity and hands.
(5). Machine could press different tablet size and tablet shape by changing mould.

Powder Press Machine Adjustable High Accuracy Tablet Press / Single Punch Press Machinery For Chlorine Dioxide powder 0Powder Press Machine Adjustable High Accuracy Tablet Press / Single Punch Press Machinery For Chlorine Dioxide powder 1
