|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Product Mold:||Multi-cavity Mould||Application:||Tablet Press|
|Standard:||BV||Apply To Shape:||Round,square,or Special-shaped|
|Working Pressure:||≤25T||Filling Depth:||≤150mm|
|Product Name:||Powder Press Machine Tablet Press With Die And Hydraulic Press Machine For Salt Block Press||Type:||Hydraulic Tablet Press|
hydraulic press equipment,
multi punch tablet machine

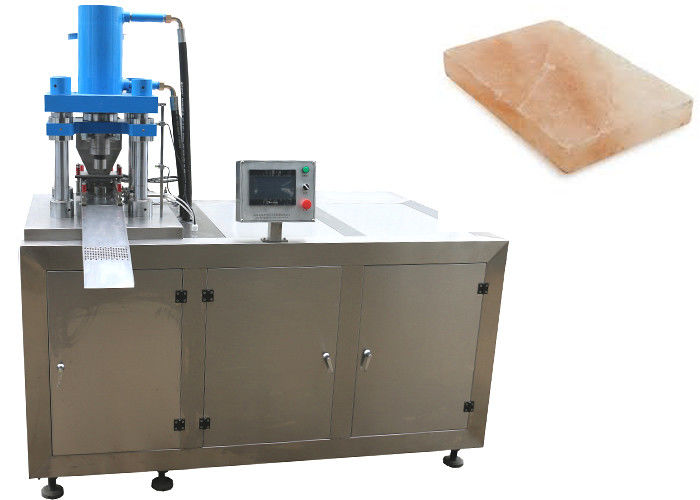

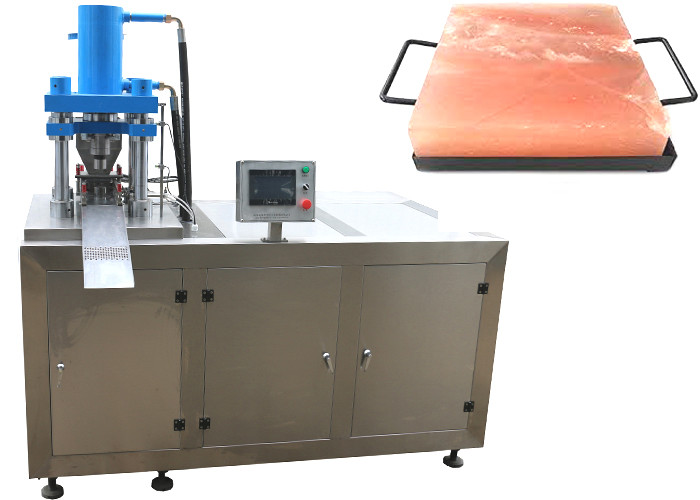

Powder Press Machine Tablet Press With Die And Hydraulic Press Machine For Salt Block Press
Technical Parameters of Hydraulic Tablet Press Machine:
|Production Capacity||5-7molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤45T(1.step-less adjustment 2.can be bidirectional compress)|
|Working Stroke||Up stroke≤150mm,down strokes≤150mm(1.step-less adjustment 2.Customized based on customer’s request.)|
|Filling Depth||≤150mm(1.step-less adjustment 2.Customized based on customer’s request.)|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round,square,or special-shaped(suitable for a variety of shapes)|
|Motor Power||7.5kw 9kw(Servo)|
Manual and semi-automatic operation methods
The working pressure, travel range of slider can be adjusted according to process requirements. Two process modes for choose: constant pressure process and constant stroke process.
The slider has two speeds, fast and slow speed mode, is convenient for the operator to control the workpiece.
Sliders and tables have T –slots, easy for installation of molds.
Machine frame will be putted into the tempering furnace to remove the internal stress after welded, machine lifetime will be much longer.
Modern five-sided machining center and CNC boring and milling machines perform machining to ensure the highest precision of the workpiece .
The master cylinder is designed for high speed, small motor power, fast lifting speed and high efficiency.
The piston rod is made by heat treatment, using high quality imported seal, high wear resistance and durability. High guidance accuracy .
Hydraulic and electric:
All pipelines and flanges have been subjected to vibration and oil leakage tests , which greatly reduce oil leakage from pipelines, and are easy to maintain and safe.
The hydraulic system is equipped with overload overflow protection to ensure no leakage and level gauge for direct reading and checking of the oil level.
Variable pump provides high pressure, high speed, durability and low noise.
The suction port of the oil pump is equipped with an oil filter to ensure the cleanliness of the pump and hydraulic system
All electrical, hydraulic and mechanical components are in line with industry standards and products are spread throughout North America and Europe.
In order to prevent the slider from falling down, the machine is provided with hydraulic support safety circuit.
High efficiency, low-noise
Well hydraulic control
Can add Press Brake Mould for Bending Function
Table can be lifted through a chain driven by the main cylinder
Optional Special Device
Micro-switch for traverse adjustment
Hydraulic press include replaceable top tools V-block and support table with stops.
Operating modes: Semi-automatic
