Product Details:
|
|
Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Lisen |
Certification: | BV |
Model Number: | LS250T |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 35-65 working days |
Payment Terms: | TT, LC |
Supply Ability: | 20000/Year |
Detail Information |
|||
Apply To Shape: | Round,square,or Special-shaped | Standard: | BV |
---|---|---|---|
Working Pressure: | ≤250T | Filling Depth: | ≤100mm |
Application: | Tablet Press | Product Mold: | Multi-cavity Mould |
Product Name: | Salt Block Press Machine | Type: | Hydraulic Tablet Press |
High Light: | salt block making machine,salt tablet press machine |
Product Description

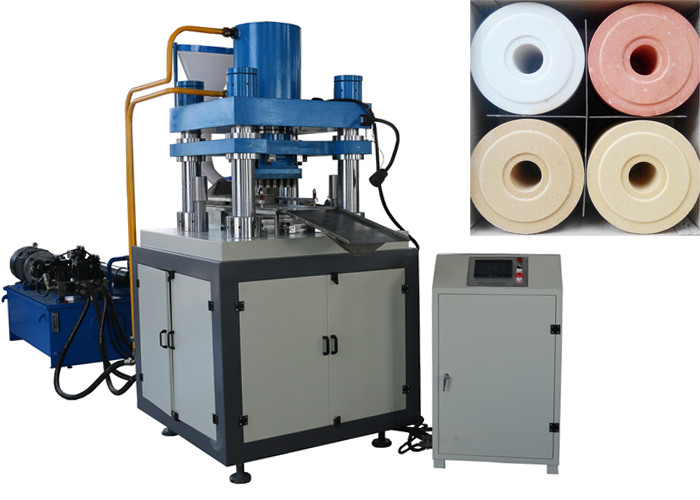

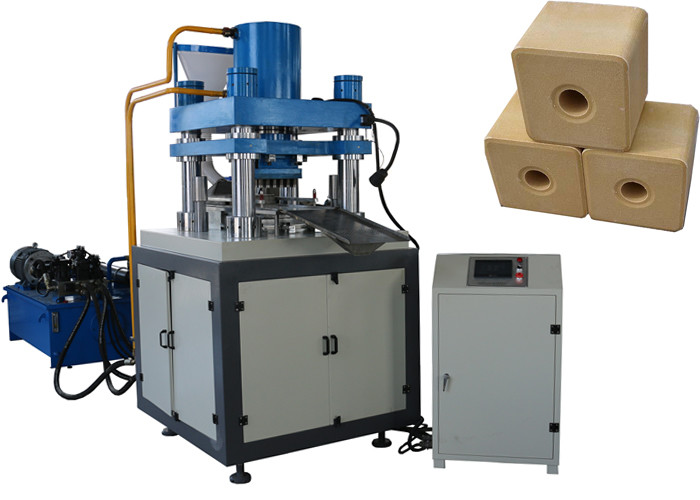

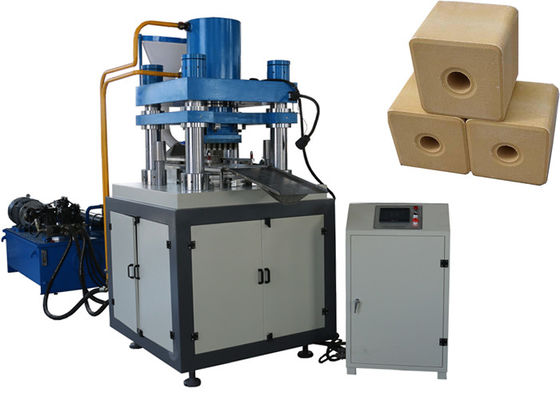

Salt Tablet Press Machine Salt Automatic Block Feed Press Machine Animal Lick Stone Odium Chloride Pressing Machine
Main application This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries. Feature The machine is fully-enclosed, made of stainless steel, meet the G.M.P requirement It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier. The machine can press not only round tablets but also different geometrical shape tablets, annular tablets, and the tablets may have the impressed letters on both sides. A power suction unit is attached to take the residual powder during operation so that the blockage powder can be collected and be reused. An overload protection unit is included in the system to avoid the damage of the punches and apparatus. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.
Competitive Advantages for Salt Block Press Machine:
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
Technical Parameters for Salt Block Press Machine:
Production Capacity | 5-7molds/min(the actual speed according to product process requirement) |
Working Pressure | ≤250T(1. step-less adjustment 2. can be bidirectional compress) |
Working Stroke | Up stroke≤250mm,Down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Filling Depth | ≤100mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
Motor Power | 18.5kw, 22kw(Servo) |
Weight&Size | Approximately:5200kg, 3200mm*1200mm*2100mm(L*W*H) |
Detailed Information for Salt Block Press Machine:
1. The main components of the electric control cabinet adopt international famous brand components, PLC adopts Siemens products, |
and the human-machine interface adopts Siemens 10-inch series color touch screen. |
2. Low-voltage electrical products use ABB, Schneider, OMRON and other internationally renowned brand products |
3. Frequency converter adopts Siemens brand. |
4. The bearing series are all use Japan NSK products. |
5. The punching plate is processed with corrosion-resistant materials and has good rust and corrosion resistance. |
6. The pressure sensing acquisition and transmission system uses imported high-precision sensors and amplifiers to realize real-time pressure detection and analysis. Automatically adjust the depth of powder filling of the tablet press to achieve automatic control of tablet production. At the same time, the mold damage of the tablet press and the supply of the powder are monitored to provide a safety protection. Greatly reduce production costs, improve the pass rate of tablets, and achieve one-person multi-machine management. |
Before-sale Service for Salt Block Press Machine:
1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase suitable machine.
3. Warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
4. Capacity
B. We will design, customize and make dies for you.
After-sale Service for Salt Block Press Machine:
1. All the machines will be adjusted and tested before shipping. Installing,debugging and training to workers are all offered, after customers receiving our tablet press machine
FAQ for Salt Block Press Machine:
1. What about your tablet press machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001 certificate; already exported into many countries and areas; already got customer’s good reputation.
2. How can you ensure the machine’s quality after we ordered?
Before the delivery, we will send you machine’s pictures and videos, or you can come to factory and check the tablet press machine by yourself, or by the third party inspection organization, contacted by your side.
3. What about your installation service and sales service for your tablet press machine?
1> Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2> We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3> It is free to train your worker in our factory or in your side or by video.
