|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Working Pressure:||≤16T||Filling Depth:||150mm|

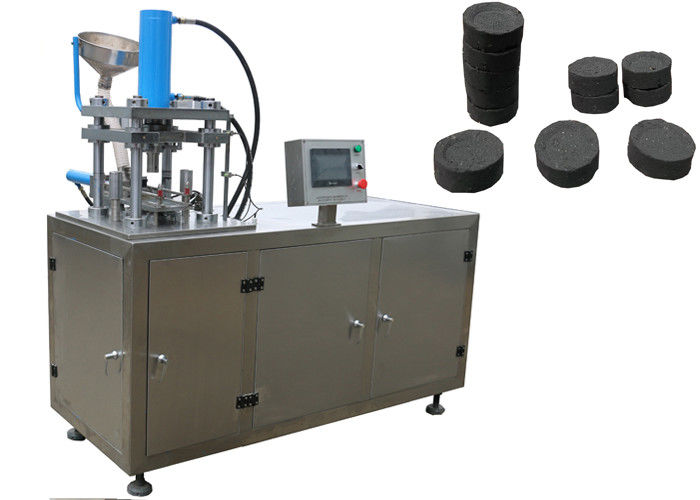

|Product Name:||Briquette Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
sawdust briquette maker,
charcoal press machine
1. Hydraulic power part - manual and electric.
2. Mechanical control
3. Working cylinder part.
4. Hydraulic power part consists of hydraulic oil pump, elastic coupling motor and connection plunger pump.
5. The mechanical control part is controlled by the distribution box and the combination button switch.
6. Tubing is connected by high pressure seamless steel pipe.
1. All stainless steel structure and integral frame body, frame press has higher precision and rigidity;
2. According to the customer's requirements, the press is equipped with a hopper, a feeding device, and the bath salt explosive ball forming automaton can be automatically fed or manually fed;
3. The bath salt explosion ball molding machine has an independent gas path and electrical control system, and the electrical control adopts PLC programmable controller and man-machine interface;
4. The bath salt explosive ball product forming machine is provided with a lower cylinder and an auxiliary cylinder which can be applied to various shapes and various three-color and multi-color products and complex parts with shoulders;
5. The bath salt explosion ball molding machine can complete the floating pressing and can realize the process actions such as the pull-down type and the ejection-type demolding.
Quality Assurance Service:
· We support SAMPLE making and testing with your raw material.
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Easily Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.
1. LISEN has been engaged in the press machine many years ago. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each of the incoming material and the finished press machine carefully, so that we can supply the best machine for customers.
3. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer press machine based on your requests with the best quality and the most competitive price. Win-win is our ultimate purpose.
|Production Capacity||5-7molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤16T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,Down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||3. 7kw 5. 5kw(Servo)|
|Agriculture:||Feed block, fertilizer tablets, animal food, animal salt lick|
|Electronics Batteries:||Thermistor, integrated circuit components, carboniferous brush films...|
|Health Products:||calcium, propolis tablets, effervescent tablets, bath salts tablets...|
|Chemical:||disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...|
