|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Application:||Tablet Press||Apply To Shape:||Round,square,or Special-shaped|
|Working Pressure:||≤500T||Filling Depth:||≤400mm|
|Product Name:||Ceramic Press Machine||Product Mold:||Multi-cavity Mould|
|Standard:||BV||Type:||Hydraulic Tablet Press|
medicine tablet making machine,
multi punch tablet machine

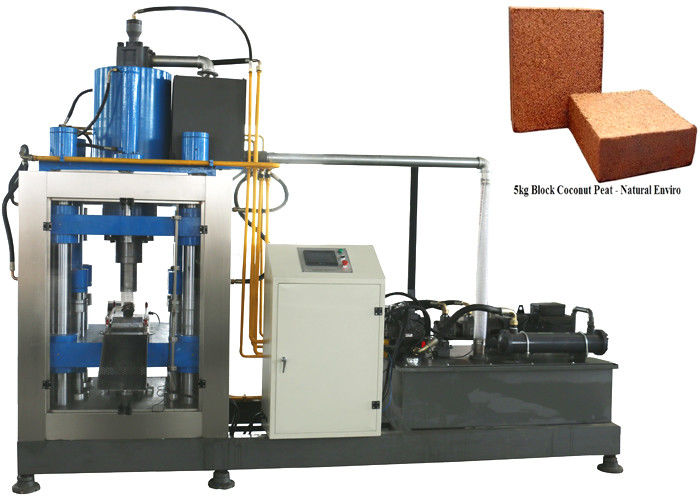

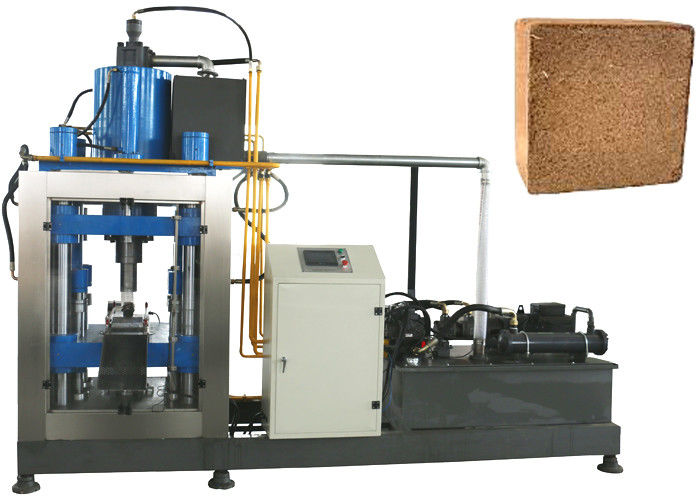

Coconut Coir Peat Making Machine for Coco Peat Multiuse Coco Coir Pith Artificial Soil Coco Coir Pith
How to make Coco Peat?
By Hydraulic Tablet Press Machine!!
Technical Parameters of Hydraulic Tablet Press Machine
|Production Capacity||2-4molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤500T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤600mm,down strokes≤400mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤400mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||30kw 45kw(Servo)|
|Weight&Size||Approximately: 12000kg 3200mm*1200mm*2800mm(L*W*H)|
More Details of Hydraulic Tablet Press Machine:
1. The tablet press machin conforms with GMP standard. And it is easy to get the light demolition, internal cleaning convenience purposes.
2. Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components.
3. All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately.
4. The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free, easy release the heat and the control panel can be design to demonstrate in different foreign languages.
Technology and Advantage:
Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.
Uniform density of the compressed tablet can be ensured through special technology.
Different layer different color:
Can compress the tablet with different layers and different colors.
Multiple Production Capacity:
Production capacity can be raised many times under certain conditions.
If some abnormal condition occurs,it will stop immediately and minimize its negative effects.
Changzhou Jintan Lishen Machinery Co., Ltd. is a professional manufacturer and supplier of tablet press machinery and equipment in China.
We have a well-experienced team to manufacture tablet press machines and equipment and a professional design institute. With rich experiences in tablet block machinery and equipment field and numbers of professional engineers, we have designed and developed tablet block machinery in different tonnage.
Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
In Lisen, you can get your desired tablet block machine with the best price and good quality. Welcome your inquiries from all over the world.
Tablet Press Machine Applications:
