|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Product Mold:||Multi-cavity Mould||Application:||Tablet Press|
|Standard:||BV||Apply To Shape:||Round,square,or Special-shaped|
|Working Pressure:||≤25T||Filling Depth:||≤150mm|
|Product Name:||Tablet Press Machine Hydraulic Press Machine For Minrosa Horse Salt Lick||Type:||Hydraulic Tablet Press|
medicine tablet making machine,
multi punch tablet machine

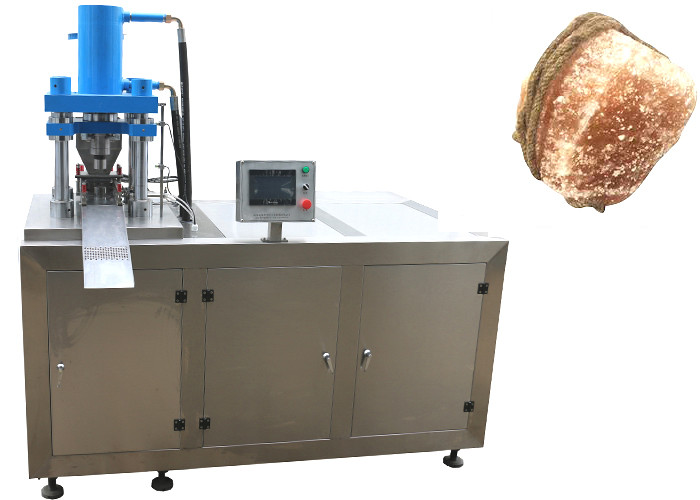

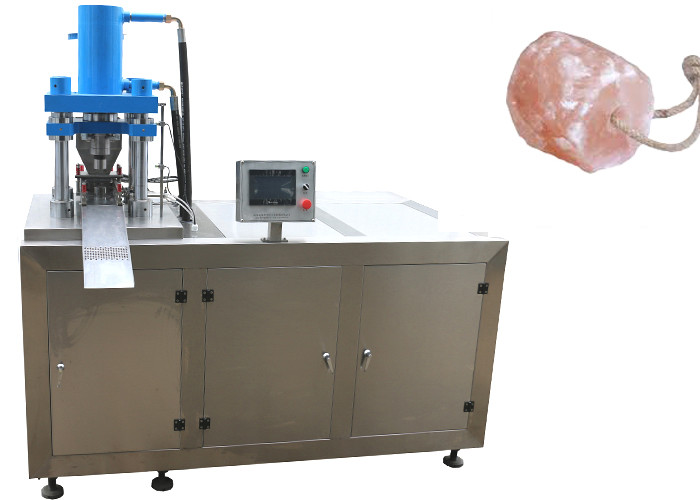

Tablet Press Machine Hydraulic Press Machine for Minrosa Horse Salt Lick
This series product applies to press techniques of various materials, such as punching. Besides, it can also be used for powder products.
The host machine of this series applies three-girder and four-pillar structure. The hydraulic system applies Cartridge Valve oil line. The electric system applies relay or PLC to control circuit. It has the adjustable and semi-automatic operation mode. The whole machine features simple and compact structure, economical and reasonable price, reliable operation, long-term life, slight hydraulic impact force and less connection pipelines and leakage.
The work pressure, press speed, stroke range of this series can be adjustable within the specific range according to technical requirements and process preset pressure mode and stroke mode. During the preset pressure forming, there is pressure maintenance delay and automatic return after the press. There is the knockouts device used as hydraulic cushion for forming of drawing products except for knocking out products.
Material Structure Feature
1. Hydraulic press is applicable for powder press. Presses offer fast, easy, and safe setup and operation as well as years of trouble-free service.
2.high rigidity and less deformation compact,wide body frame eliminating vibration for improved ide life and machine.
3.Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables.
4.Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life.
1. Single column structure hydraulic presses to make work safely.
2. Entire steel welded with tempering treatment for stable.
3. Cartridge valve integrated hydraulic system: long service life, return leak point.
4. Hydraulic system equipped with pre-release device to reduce hydraulic force impact.
5. Operation button centralized control and equipped with adjusting and semi-auto model.
6. Equipped with single-constant stroke and pressure function.
7. CNC control system makes working efficiently.
Technical Parameters of Hydraulic Tablet Press Machine:
|Production Capacity||5-7molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤45T(1.step-less adjustment 2.can be bidirectional compress)|
|Working Stroke||Up stroke≤150mm,down strokes≤150mm(1.step-less adjustment 2.Customized based on customer’s request.)|
|Filling Depth||≤150mm(1.step-less adjustment 2.Customized based on customer’s request.)|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round,square,or special-shaped(suitable for a variety of shapes)|
|Motor Power||7.5kw 9kw(Servo)|
High efficiency, low-noise
Well hydraulic control
Can add Press Brake Mould for Bending Function
Table can be lifted through a chain driven by the main cylinder
Optional Special Device
Micro-switch for traverse adjustment
Hydraulic press include replaceable top tools V-block and support table with stops.
Operating modes: Semi-automatic
It is mainly suitable for powder press and shape forming. This product is applied in the machine tool, automotive, motor vehicles, air-conditioned shell, mechanical bearings, powder metallurgy, and plastic industry.
We can design and produce the hydraulic press machine, according to your customized size
Wider type. More width of woking table, double 2 cylinder deisgn, more convenient for user's working.
Higher type. Height of machine more taller deisgn. Speical for bigger workpiece.
Buyers came for inspection test our hydraulic press machine, and very satisfied with our quality.
