|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Type:||Hydraulic Tablet Press||Standard:||BV|
|Working Pressure:||≤100T||Filling Depth:||≤150mm|
|Product Name:||Ceramic Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
hydraulic tile press machine,
ceramic tile press machine

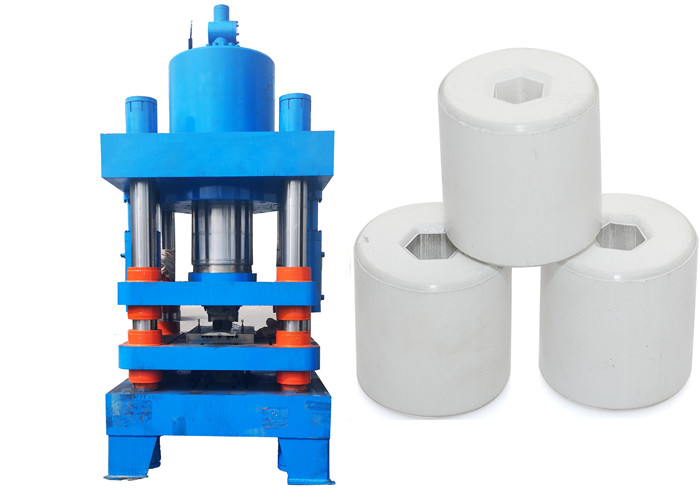

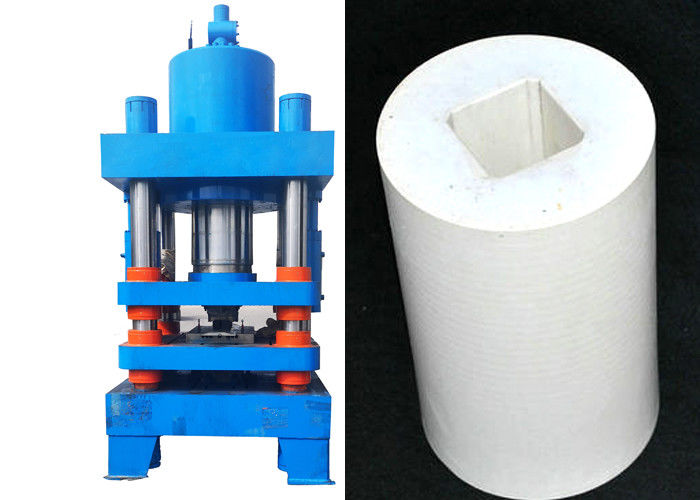

Bidirectional Hydraulic Press Machine , Ceramic Press Machine for Precision Ceramic Spare Part Components Alumina (Al2O3)
Technical Performance for Ceramic press Machine:
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
6. Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping and time-delaying.
Jiangsu Jintan Lishen Machinery Co., Ltd, is a comprehensive private technology enterprise that integrates the functions of tablet press machine research, design, development, manufacturing and sales.
We always uphold the business philosophy of "quality first, promise to service, honest management, satisfy customers' needs" and "Pursue perfection, keep improving, and constantly innovating. High-quality after-sales service and technical follow up works remove concerns of most customers.
Technology and Advantage for for Ceramic press Machine:
* Demoulding Protection: Protecting the compressed tablet well, which are damaged by improper mold forces in the course of the production.
* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.
* Different layer different colors: Can compress the tablet with different layers and different colors.
* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.
* Safety Protection: If some abnormal condition occurs, it will stop immediately and minimize its negative effects.
Applications for Ceramic press Machine:
Before-sale Service for Ceramic press Machine:
1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase a suitable machine.
3. A warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
B. We will design, customize and make dies for you.
After-sale Service for Ceramic press Machine:
1. All the machines will be adjusted and tested before shipping. Installing, debugging and training to workers are all offered, after customers receiving our tablet press machine
Technical Parameters for Ceramic press Machine:
|Production Capacity||4-6molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤100T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||11kw 15kw(Servo)|
Market for Ceramic press Machine:
To be Our Agent:
Company Information :
Changzhou Jintan Lishen Machinery Co., Ltd. is a professional manufacturer and supplier of tablet press machinery and equipment in China.
We have a well-experienced team to manufacture tablet press machines and equipment and a professional design institute. With rich experiences in tablet block machinery and equipment field and numbers of professional engineers, we have designed and developed tablet block machinery in different tonnage.
Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
In Lisen, you can get your desired tablet block machine with the best price and good quality. Welcome your inquiries from all over the world.
