|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Working Pressure:||≤100T||Filling Depth:||≤150mm|
|Product Name:||Grinding Wheel Powder Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
cnc universal powder pressing machine,
compact powder pressing machine

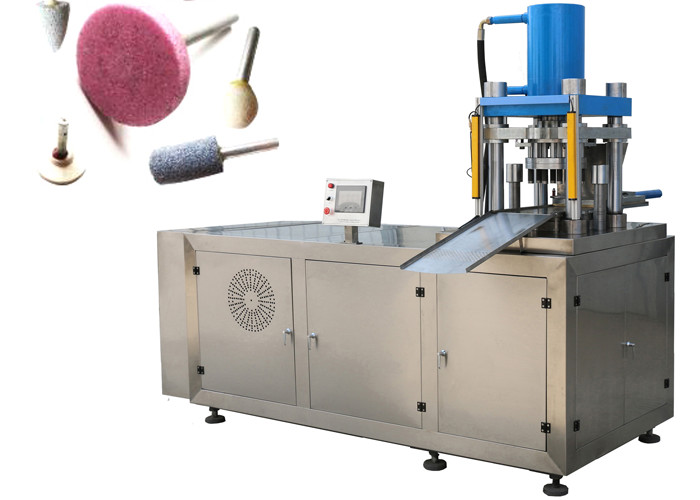

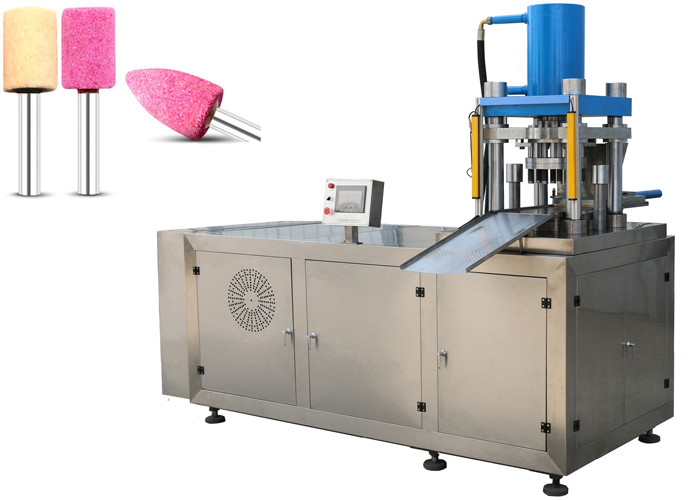

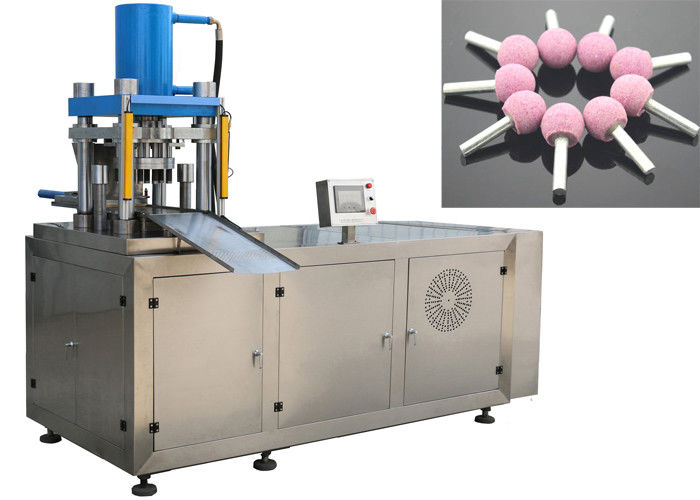

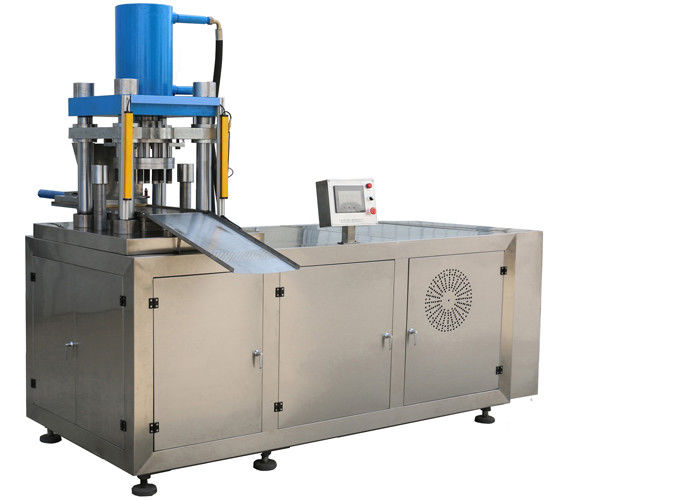

Customized Powder Press Machine Tablet Press Machine BV Standard
Jiangsu Jintan Lishen Machinery Co., Ltd, is a comprehensive private technology enterprise that integrates the functions of tablet press machine research, design, develop, manufacturing and sales. We always uphold the business philosophy of "quality first, promise to service,honest management, satisfy customers' needs" and "Pursue perfection, keep improving, and constantly innovating. High-quality after-sales service and technical follow up works remove concerns of most customers.
Tablet Press Machine Features
1. This machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets.
2. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted.
3. The mechanical buffer unit will prevent punches and apparatus from overload damage.
4. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.
5. With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
6. With dust seal ring on punches, avoid powder leakage from turret table.
7. It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
8. It is equipped with overload protection device, when pressure overload, it can stop automatically.
1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.
2. Do not use the wet materials in order to avoid destroying machine.
3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.
4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.
5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts.
|Production Capacity||4-6molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤100T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||11kw 15kw(Servo)|
|Agriculture:||Feed block, fertilizer tablets, animal food, animal salt lick|
|Electronics Batteries:||Thermistor, integrated circuit components, carboniferous brush films...|
|Health Products:||calcium, propolis tablets, effervescent tablets, bath salts tablets...|
|Chemical:||disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...|
