|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Working Pressure:||≤25T||Filling Depth:||150mm|

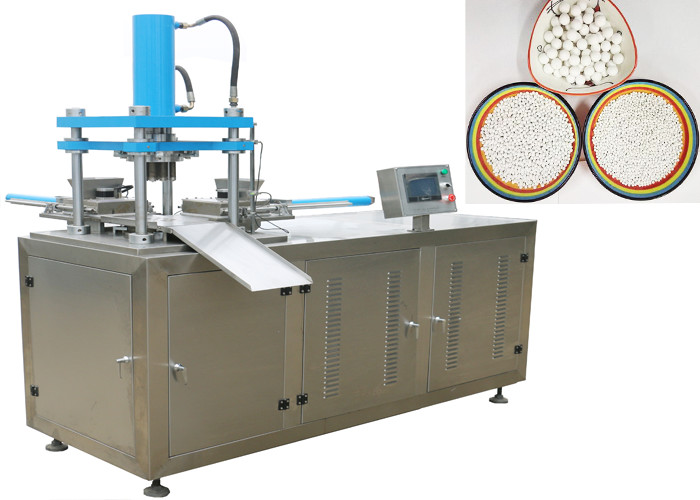

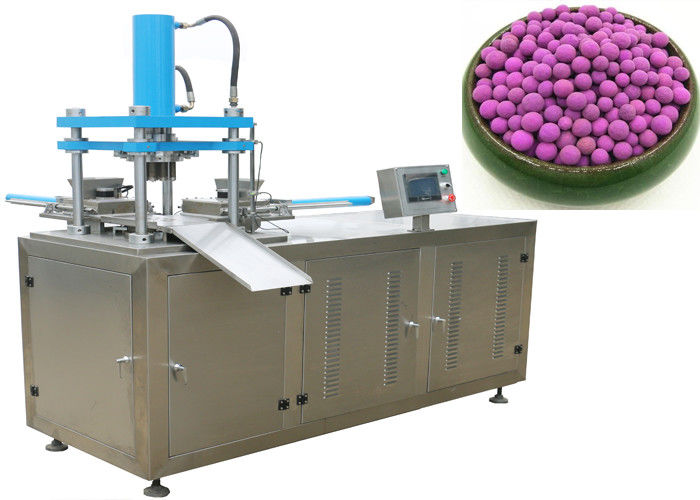

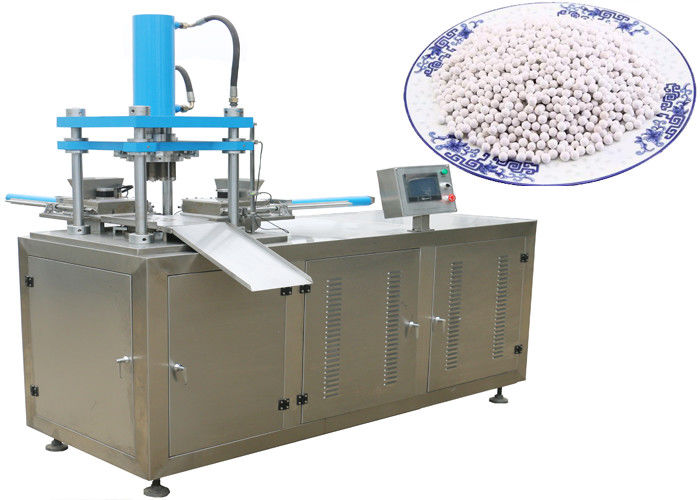

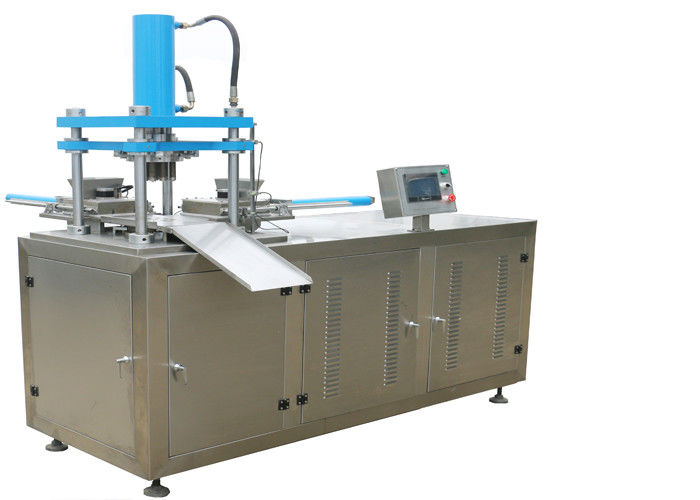

|Product Name:||Hydraulic Tablet Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
electric hydraulic press machine,
automatic hydraulic press machine
Hydraulic machine is our factory newly developed automatic tabletpressmachine,which can compress granular, powder-like material into a variety of general and special-shaped pieces. It is suitable for large-scale repression of products which require high-density, while a multi-chip module can be used for large-scale production industries, equipment, high precision, easy to learn mold replacement and installation. High degree of automation. All actions by the microcomputer PLC control, continuous automatic. Can be properly adjusted to suppress the time, pressure, product thickness.
Our company has been engaged in the research,development and manufacture of non-standard tablet press machine. Our tablet press machine have broad scope of application. At the same time, offer molding manufacturing service. We have accumulated a lot of material tablet compressing experience. Besides offering tablet press machine and mould, we also can give some technical support on tablet press machine & mould for customers.
After customer received tablet press machine, we will arrange our technician go to your factory to help you debug the machine and also train your workers how to use it. The warranty for this machine will be one year, we will provide vulnerable parts and door-to-door service by free within one year.
The entire hydraulic system imported from Taiwan, Higher stability, so it avoid oil leaking and polluting, It also can ensure the pressure is enough, and action is synchronized for continuous. Working part and the separation of part of the hydraulic system is independent, non-polluting, automatic heated, so it can make the machine more durable.
Advantages of Our Tablet Press Machine:
1. With force feeder, improve granule flow-ability and filling performance, ensure filling precision, avoiding too much dust and cross pollution.
2. PLC and touch screen control, operation is easy and observable.
3. Perfect tablet pressing system, twice compress forming, reasonable framework with proper space and large pressure roller, the tablet would be pressed in longer time with no tablet weight difference.
4. It can automatically record all the operation parameter for different batch production, convenient recovery of production for same specification tablets.
5. Shell is made of stainless steel, fully enclosed type. Surface of turret is covered with harderned layer to make it wear resistant, meeting GMP standards.
6. Pressure sensor protection device would stop the machine to protect the punch mould.
7. Automatic oil and grease lubrication system for pressure roller, punches, reduce abrasion and prolong service life of machine.
8. Special oil proof, dust proof and noise proof design
1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.
2. Do not use the wet materials in order to avoid destroying machine.
3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.
4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.
5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts
|Production Capacity||4-6molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤25T(can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,Down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||5. 5kw 7. 5kw(Servo)|
How to choose proper machine / equipment?
Kindly reply us the following items:
- what is the product you do
- raw material
- the production capacity per hour or per day.
- power supply, such as Voltage, Hz, and Phase
Our technical engineer would suggest the proper model with necssary information for your reference. And the production line in workshop could be supplied as per your inquiry.
After sale service.
We supply operation training for workers, and installation in your location.
Regular and considerate inquiry in the email would be supplied for machine running and usual maintenance.
