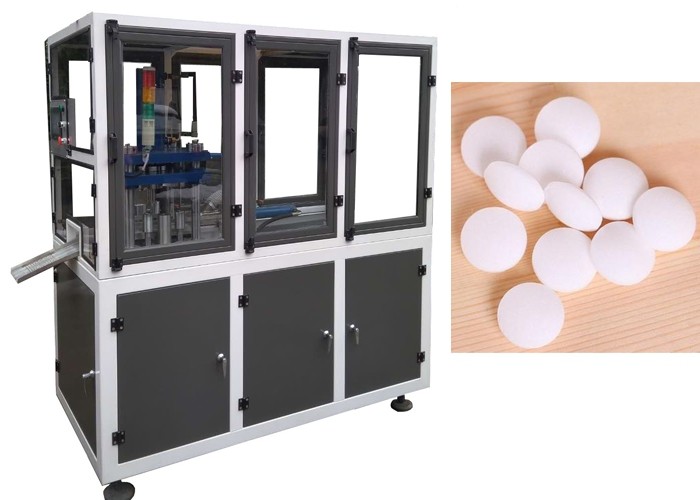

Four-Column Single Punch Bidirectional Tablet Press Ball Press Machine Hydraulic Press for Powder
Features for This Ball Press Machine:
1. Body structure--- ensuring stability and power equality
2.Bbeams are welded with tempering treatment
3. Cartridge valve integrated hydraulic system: Long service life, less hydraulic impact and reduce leak point
4. Hydraulic system equipped with pre-release device to reduce hydraulic force impact
5. Operation button centralized control and equipped with adjusting and semi-auto model
6. High efficient, convenient and safe to operate
7. With PLC control.
8. CUSTOMIZED parameters are available. Customers could also choose famous brand parts like: Mitsubishi(Japan), Siemens(Germany), Bosch Rexroth(Germany), Schneider(France), DELIXI etc.
||5-7molds/min(the actual speed according to product process requirement)
||≤10T(1. step-less adjustment 2. can be bidirectional compress)
||Up stroke≤250mm,Down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
||≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
||Customized according to the tablet features(Multi-cavity Mould)
|Apply to Shape
||Round, square, or special-shaped(suitable for a variety of shapes)
||2. 2kw, 4kw(Servo)
(1) Machine weight: In a way, it shows the quality of machine if good enough. Such hydraulic press machines quality is decided by its whole structure + thick plate's size + pressure system + control system, not its nice appearance.
Machine in real quality:
E. G: In same model 10T machine, machine with more heavier weight is better than ones with less weight. In same 10T machine, ones with more heavier weight don't need any reinforcement measures in the ground.
It is the thicker cast iron plates and bigger cylinders(up+down)which let good machine heavier.
Ones in less weight has thin plates and small cylinders (may only have one cylinder), which will shake easily in production, so need the reinforcement measures in the ground, but it not enough for machine. Machine shakes easily, not stable, even has reinforcement measure, not enough, its component parts start to be damaged in shake process until broken, shorter life and much dangerous.
(2)electric and motor we use are in good brand, e. g MORON, DELIXI, SIMENS. We will give you a list about it in sales contract; Also accept buyers' checking before shipment. We can say no suppliers in china who can equip such good configuration for machines in china. Such parts in brand can be bought around the world, reliable quality and convenient after-sales service, also guarantee the machine running and people' safety.
(3)The hydraulic oil path of our machines, was redesigned in early last year, less turnings hydraulic oil path has which increases the machine speed. Also power saving (save 10-20 kWh/day) and high efficiency.
(4)We added related insurance program into our machine last year. More Safety and harmony. Machine will stop when all machine actions not in right place or wrong operation of workers. Protect workers and parts of machine.
(5)All programs of machines are input in PLC. People set machine through PLC, in replace of traditional way that use Push-button in electric cabinet which needs to be replaced wholly into new one and add high cost for buyers.
(6)Machine structure: Our machine in same model with other suppliers, machine size and weight of us is much bigger and heavier, the supporting pillars and metal plates are more thicker, not need any reinforcement in ground, which guarantee the machine quality and life, more reliable.
1. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
2.Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.
Jiangsu Jintan Lishen Machinery Co., Ltd, is a comprehensive private technology enterprise that integrates the functions of tablet press machine research, design, develop, manufacturing and sales. We always uphold the business philosophy of "quality first, promise to service,honest management, satisfy customers' needs" and "Pursue perfection, keep improving, and constantly innovating. High-quality after-sales service and technical follow up works remove concerns of most customers.
1. Q: Where is your factory? How can I visit ?
A: Our factory located in Jiangsu city.You can fly to Shanghai airport,then we can pick you up to our factory for your visiting.We are looking forward to your visiting.
2. Q: How does your factory control the quality of machines and after sales service?
A: Our machines have passed SGS certification, with best quality and reasonable price. All our machines have 1 year guarantee, will be provided for a lifetime maintenance.
3. What's your payment term?
A: Common is 30% deposit by T/T, the balance paid against shipping documents or L/C at sight.
4. Q: Can you design new product for us?
A: We have a professional development team that can make new products according to your requirements.
5. Delivery time of the ball press machine?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
6. What does your factory do regarding quality control?
We pay much more attention to the quality controlling from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
7. What's the machine quality guarantee?
we provide one year warrenty for our machines. We choose the world's famous brand of components to keep our machine in perfect working condition.
8. Are you able to provide the installation and commissioning of machines overseas? How long will it take?
Yes, we can supply overseas service and technical support but customer needs (need pay for the cost of the installation).
Small machine usually takes within 2~3 days.
Big plant usually takes about 7 days.
9. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
