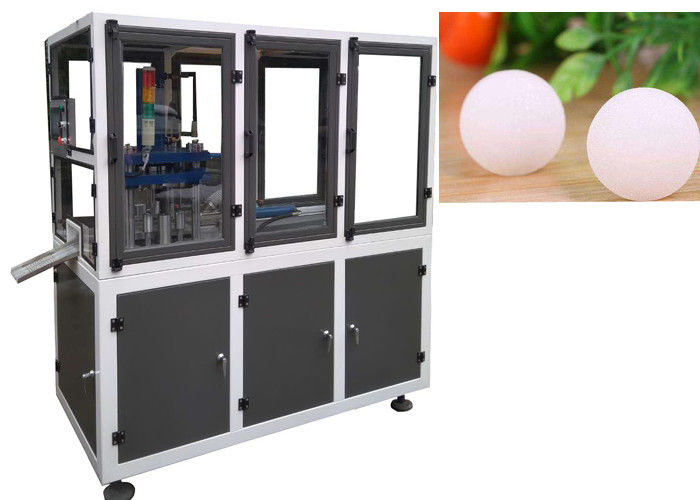

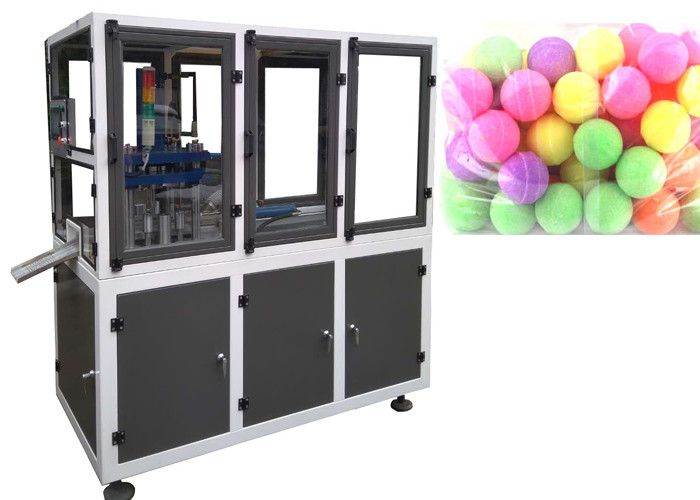

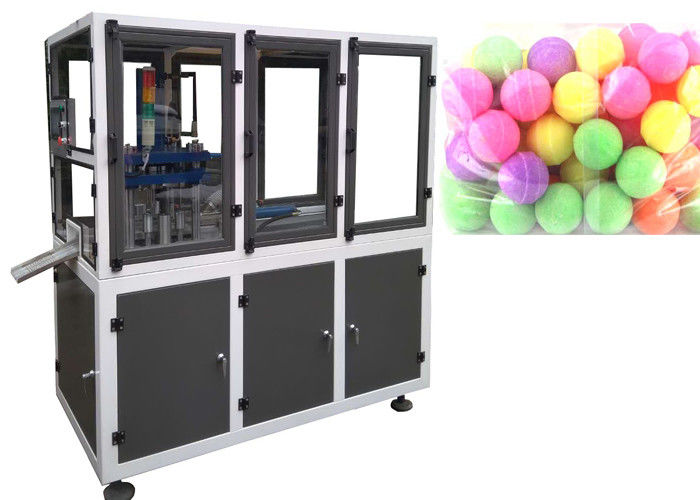

Hydraulic Press Machine Ball Press Machine For Mothball With High Performance
--Welded Steel plate framework with high intensity of machine body.
--Dry type friction clutch and brake, wet friction clutch and brake are optional.
--Equipped with hydraulic overload protecting device.
--Eight-side lengthened guide with high precision.
--Adopts electric shut height adjustment with digital display.
--Equipped with lifting balance cylinder.
--Electric compelling grease lubrication system.
--Balancing cylinder adopts manual lubrication system.
--One set of blowing device.
--Controlled by PLC with international brand.
--Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
--Electronic cam device with intelligent top dead center stop function and several safety function.
Our automatic hydraulic press machine are widely used for pressing any powder and granulate into block/tablet. It is Ball Press Machine of four-pillar structure, and it can achieve the press of Multi-cavity molds, pressure-holding function, which actively increase the production capacity.
They have been used in following field.
Food: Candy pieces, pieces of coffee, chocolate, flavored pieces, chicken pieces, glucose blocks;
Agriculture: Feed block, fertilizer tablets, animal food, plant ground block;
Electronic Battery: Thermistor, IC components, Carboniferous brush films, toner fast;
Health care products: Calcium, propolis tablets, effervescent tablets, bath salts tablets, animal licking salt blocks;
Chemical: Disinfection tablets, insect repellent tablets, mothballs, cleaning agents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, grinding wheel block, magnetic materials.
This automatic hydraulic tablet press's hydraulic system is in SSAN brand from Taiwan, electronic control system uses PLC and HMI(Human Machine Interaction).
(1) Machine weight: In a way, it shows the quality of machine if good enough. Such hydraulic press machines quality is decided by its whole structure + thick plate's size + pressure system + control system, not its nice appearance.
Machine in real quality:
E. G: In same model 10T machine, machine with more heavier weight is better than ones with less weight. In same 10T machine, ones with more heavier weight don't need any reinforcement measures in the ground.
It is the thicker cast iron plates and bigger cylinders(up+down)which let good machine heavier.
Ones in less weight has thin plates and small cylinders (may only have one cylinder), which will shake easily in production, so need the reinforcement measures in the ground, but it not enough for machine. Machine shakes easily, not stable, even has reinforcement measure, not enough, its component parts start to be damaged in shake process until broken, shorter life and much dangerous.
(2)electric and motor we use are in good brand, e. g MORON, DELIXI, SIMENS. We will give you a list about it in sales contract; Also accept buyers' checking before shipment. We can say no suppliers in china who can equip such good configuration for machines in china. Such parts in brand can be bought around the world, reliable quality and convenient after-sales service, also guarantee the machine running and people' safety.
(3)The hydraulic oil path of our machines, was redesigned in early last year, less turnings hydraulic oil path has which increases the machine speed. Also power saving (save 10-20 kWh/day) and high efficiency.
(4)We added related insurance program into our machine last year. More Safety and harmony. Machine will stop when all machine actions not in right place or wrong operation of workers. Protect workers and parts of machine.
(5)All programs of machines are input in PLC. People set machine through PLC, in replace of traditional way that use Push-button in electric cabinet which needs to be replaced wholly into new one and add high cost for buyers.
(6)Machine structure: Our machine in same model with other suppliers, machine size and weight of us is much bigger and heavier, the supporting pillars and metal plates are more thicker, not need any reinforcement in ground, which guarantee the machine quality and life, more reliable.
||5-7molds/min(the actual speed according to product process requirement)
||≤10T(1. step-less adjustment 2. can be bidirectional compress)
||Up stroke≤250mm,Down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
||≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )
||Customized according to the tablet features(Multi-cavity Mould)
|Apply to Shape
||Round, square, or special-shaped(suitable for a variety of shapes)
||2. 2kw, 4kw(Servo)
