|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Product Name:||Ceramic Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
ceramic tile press machine,
cement tile press machine

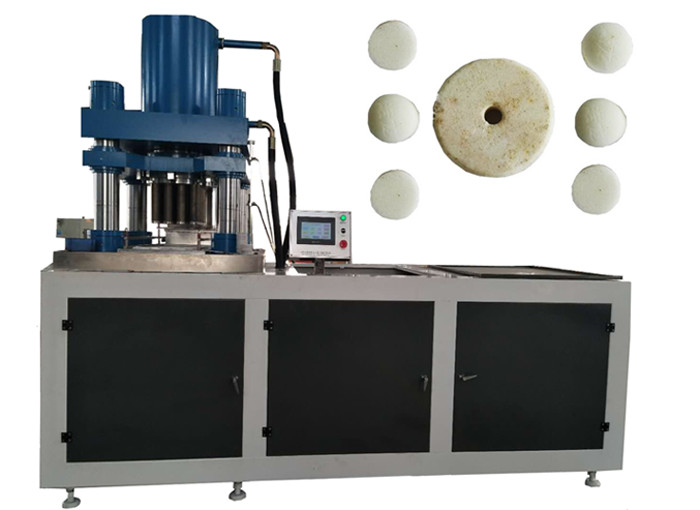

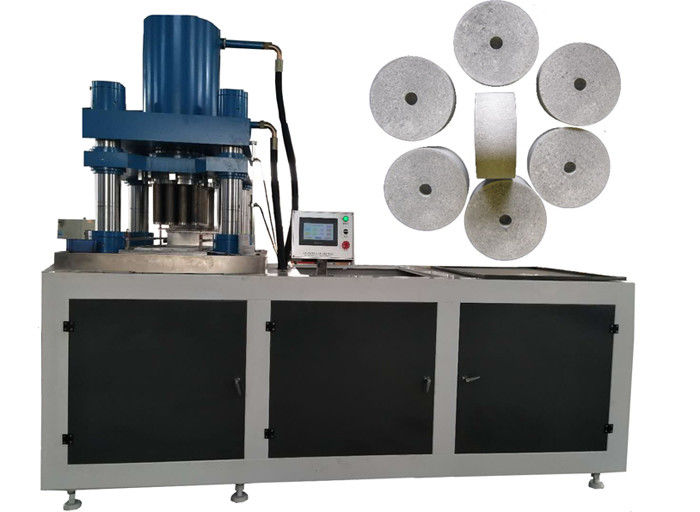

Hydraulic Ceramic Press Machine Big Capacity Tablet Press Powder Forming Machinery For Ceramic Sleeve Bushing Parts
Overall of Ceramic press Machine:
This ceramic press machine is a double-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.
Features of Ceramic press Machine:
The outside part of the machine is fully enclosed, The material of the cover and inside table face is stainless steel. The turret face is specially disposed keeping the luster of the face and preventing the cross pollution, meeting the GMP requirement.
It has transparent windows so that press condition can be observed clearly and the window can be opened, cleaning and maintenance is easier.
The hydraulic system can assure the stability of the system. Overload protection unit is including in the system to avoid the damage of the punches and apparatus, when overload occurs, the machine stops automatically.
This machine also has magic function and other safety protection device which can be adjusted and operated when running.
Design of Ceramic press Machine:
|Fully CNC Control Design:||Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology.|
|Fully Intelligent Operation Design:||Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.|
|Fully-automatic Material Filling Design:||The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor.|
|Isolated Hydraulic Station Design:||Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.|
|Demoulding Protection||Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.|
|Uniform Density||Uniform density of the compressed tablet can be ensured through special technology.|
|Different layer different color||Can compress the tablet with different layers and different colors.|
|Multiple Production Capacity||Production capacity can be raised many times under certain conditions.|
|Safety Protection||If some abnormal condition occurs,it will stop immediately and minimize its negative effects.|
Technical Parameters of Ceramic press Machine:
|Production Capacity||3-5molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤200T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||18. 5kw 22kw(Servo)|
Main Models of Ceramic press Machine:
We are the developer and maker for four-pillar full automatic hydraulic press machines and single stroke tablet press machine. Our hydraulic press machines, Including 45/60/100/200/250/300/400/500/600/800/1000/1200.
We choose suitable model to people according to following:
(1) tablet/block size
(2) capacity people want per hour.
Service of Ceramic press Machine:
· We support Sample making and testing with your raw material.
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· Test running with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Easily Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.
