Hydraulic Power Press For Bath Fizzer , Automatic Hydraulic Press Equipment

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS2-100T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Working Pressure: ≤100T Filling Depth: ≤150mm
Product Name: Hydraulic Power Press For Bath Fizzer Tablet Making Machine Automatic Hydraulic Press Application: Tablet Press
Product Mold: Multi-cavity Mould Apply To Shape: Round,square,or Special-shaped
Standard: BV Type: Hydraulic Tablet Press
High Light:

electric hydraulic press machine

,

small hydraulic press machine

Product Description



Hydraulic Power Press For Bath Fizzer , Automatic Hydraulic Press Equipment 0

Hydraulic Power Press For Bath Fizzer , Automatic Hydraulic Press Equipment 0

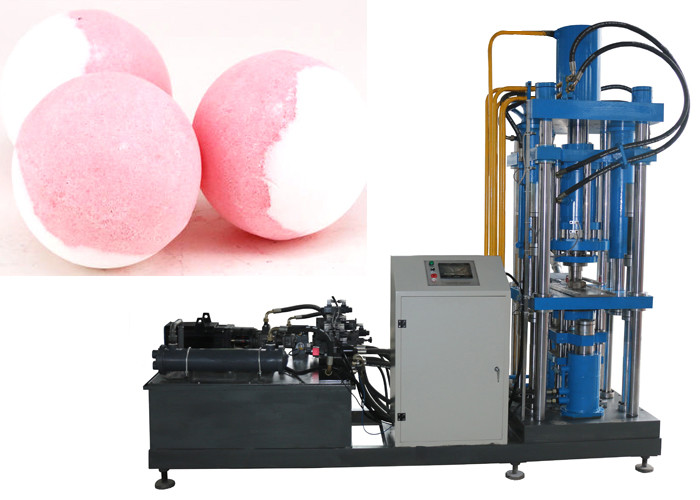

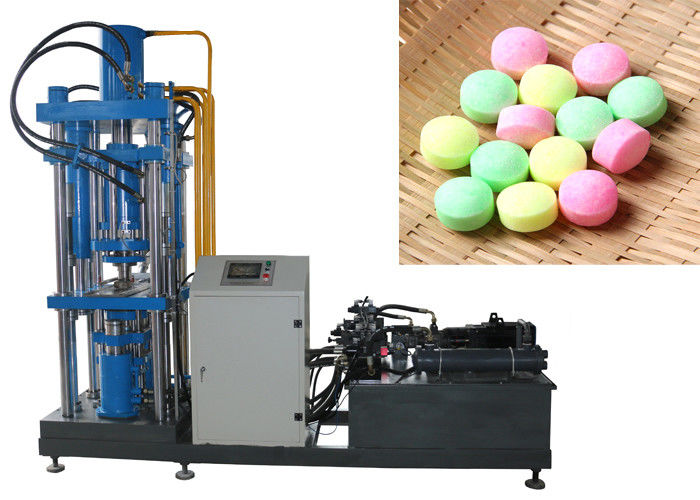

Hydraulic Power Press for Bath Fizzer Ball Press Machine Automatic Hydraulic Press

Computer optimized design, three beam and four column structure, simple structure, economical and practical. Two-way cartridge valve integrated control, leakproof ring flange pipe system, reduce the leakage point. PLC electrical control system, the action is sensitive and reliable with adjustment, manual, semiautomatic three functions, and fixed distance and constant pressure control modes, hydraulic cushion can realize jacking, don't hold up, and stretching three action process.

Features:
A. This ball press machine has Frame structure and outstanding rigidity. This serie of machines has reached international advanced standard.
B. Adopt cartridge valve integrated system characterised by little impact, reliable action and long service life as well as little leakage; Enjoy automatic lubrication system of guide rail.
C. Mechanical-electrical-hydraulic integration safety device. For example: Lower chamber support for the oil cylinder, with the interlock circuit of upper and lower chambers, all offering perfect safety. (We introduced advanced Taiwan hydraulic technology. )
D. Two technics, namely, pressure setting and stroke(travel) setting are available. It is functioned by pressure maintaining and adjustable time delay.
E. Working pressure and stroke can be easily adjusted within a certain range according to technical needs.
F. Adopt PLC computer touch screen integrated control. There are 3 operation manners, adjust, manual and semi-automatic.

Aapplications:
This series of ball press machine can be used in producing bath ball, bath fizzer, moth ball, ceramic ball, camphor ball...

Options:
01 Servo system, Common system;
02 Die Change Trolley.
03 Hydraulic auxiliary



Technical Parameters:

Production Capacity 4-6molds/min(the actual speed according to product process requirement)
Working Pressure ≤100T(1. step-less adjustment 2. can be bidirectional compress)
Working Stroke Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Filling Depth ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 11kw 15kw(Servo)
Weight&Size Approximately:3200kg 2500mm*1100mm*2300mm(L*W*H)

Hydraulic Power Press For Bath Fizzer , Automatic Hydraulic Press Equipment 2

FAQ:

1.What's the price and specification of hydraulic press machine?

Re: we always provide high quality ball press machine, as we know,oversea market is more important and difficult than domestic market because of communication time costing after sales.So always,our machines has enough quality standard to make sure the machine can work more than the real warranty period. In this way ,we will save a lot and think advance for the clients. Please let me know the utensil diameter and height, the pictures and drawing will be better, so that we can check and recommend suitable machine for you.

2. How about your machine quality?We are worry about the quality.

Re: Lishen is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.

3. May I send samples to test? Do you have a test fee or not?

Re: Yes, if you could send us samples, it will be better. For testing, we have to customize the moulds according to your products, so the moulds cost will be on your account, of course the moulds belong to you.
