|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Working Pressure:||≤100T||Filling Depth:||≤150mm|
|Product Name:||Desiccant Pharmaceutical Tablet Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
hydraulic press equipment,
multi punch tablet machine

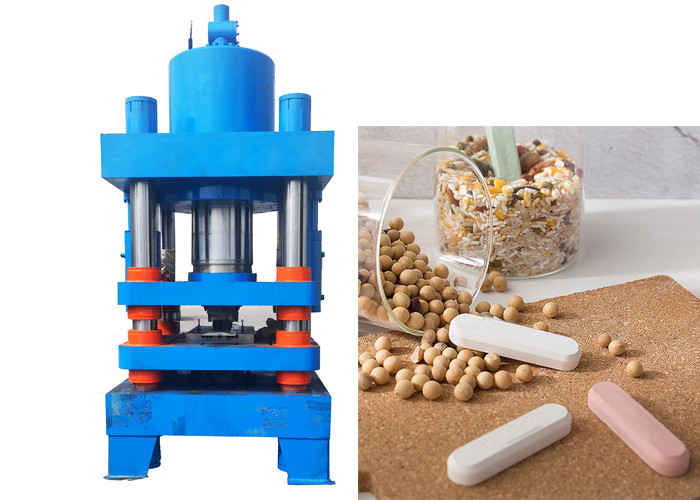

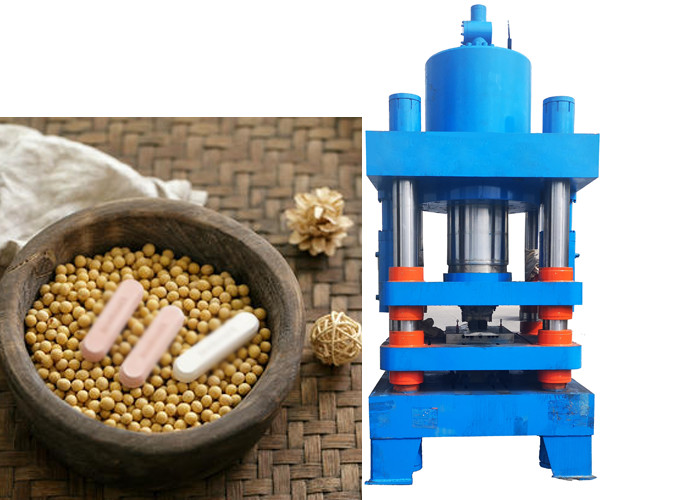

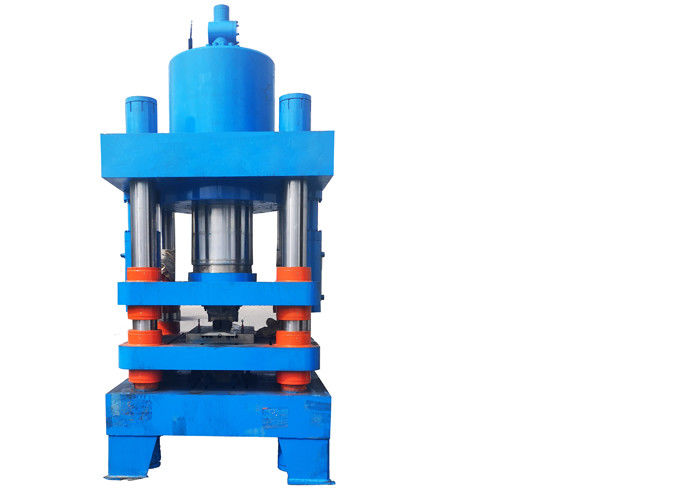

Desiccant Pharmaceutical Tablet Press Machine
This machine is designed for small pharma factory, healthcare plant, food plants and preparation rooms,can be used to pack solid drugs like capsule, tablet, gelatin pearl, suppository, milk tablet, candy and hardware. The whole set is of compact design, beautiful appearance, smooth operation and low noise. Use internal heating method to ensure the PVC is evenly heated. There is no bubble in the aluminum foil while heating and hence no waste will occur.
1. Frequently check the quality of the tablet during use. If there is the raw edge, wale and uneven thickness, check the die in time. Do not use the nonconforming products lest the machine is damaged.
2. Do not use the wet materials in order to avoid destroying machine.
3. In case of tablet skipping, stagnation and other failures, do not touch with hand to avoid injury.
4. When refilling the oil, do not make the oil overflow or even drop on the surface of the working bench or around the die lest the quality of tablets is affected.
5. When switching on power supply, make sure the flay wheel rotation direction is the same as the indicated. Do not run in reverse direction to prevent damage to the parts.
|Production Capacity||4-6molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤100T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||11kw 15kw(Servo)|
Descriptions and Advantage:
Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology.
Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.
The filling method and dosage can be intelligently controlled, rapidly and stably, which can save much time and labor.
Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.
Technology and Advantage:
Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.
Uniform density of the compressed tablet can be ensured through special technology.
Can compress the tablet with different layers and different colors.
Production capacity can be raised many times under certain conditions.
If some abnormal condition occurs,it will stop immediately and minimize its negative effects.
|Agriculture:||Feed block, fertilizer tablets, animal food, animal salt lick|
|Electronics Batteries:||Thermistor, integrated circuit components, carboniferous brush films...|
|Health Products:||calcium, propolis tablets, effervescent tablets, bath salts tablets...|
|Chemical:||disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...|
1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase suitable machine.
3. Warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
B. We will design, customize and make dies for you.
1. All the machines will be adjusted and tested before shipping.
2. Installing,debugging and training to workers are all offered, after customers receiving our tablet press machine.
