|Working Pressure:||≤16T||Filling Depth:||150mm|

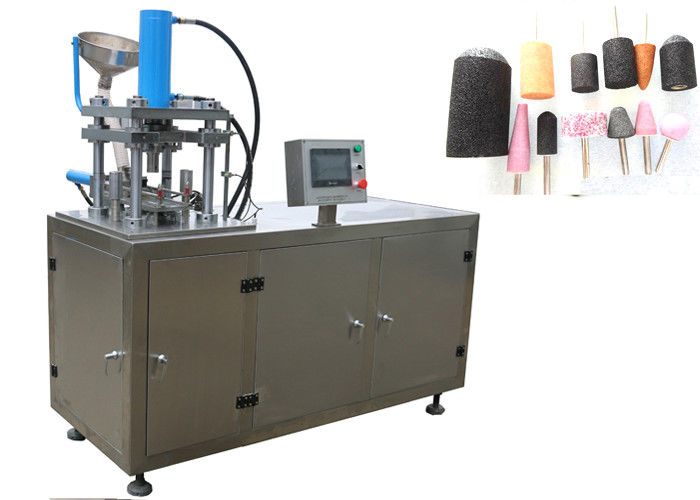

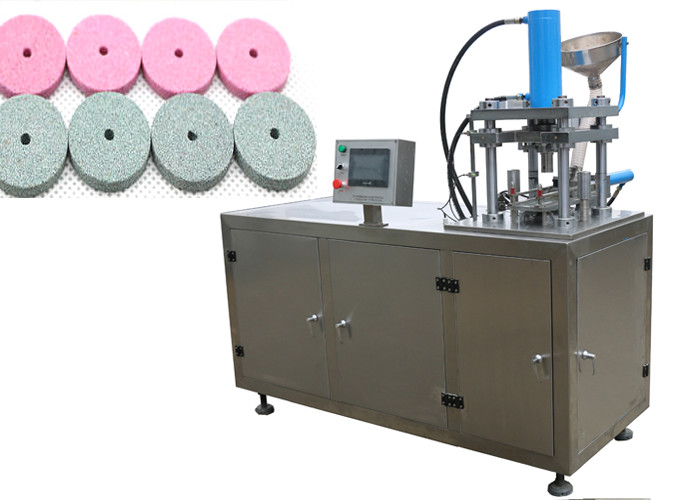

|Product Name:||Grinding Wheel Powder Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
compact powder pressing machine,
powder compaction machine
Material Structure Feature:
1. Hydraulic press is applicable for metal sheet stretching and pulling, stretching, punching, bending. It is also used for pulling, stretching and pressing large-scale products. Presses offer fast, easy, and safe setup and operation as well as years of trouble-free service.
2. high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine.
3. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots 2000t.
4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life 100T deep drawing Hydraulic press door embossing machine.
The tablet press machine is made of stainless steel, which conform with GMP standard. And it is easy to get the light demolition, internal cleaning convenience purposes. Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components. All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately. The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free ,easy release the heat and the control panel can be design to demonstrate in different foreign languages.
Tablet Press Machine Technology and Advantage:
* Demoulding Protection: Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.
* Uniform Density: Uniform density of the compressed tablet can be ensured through special technology.
* Different layer different color: Can compress the tablet with different layers and different colors.
* Multiple Production Capacity: Production capacity can be raised many times under certain conditions.
* Safety Protection: If some abnormal condition occurs,it will stop immediately and minimize its negative effects.
|Production Capacity||5-7molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤16T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,Down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤150mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||3. 7kw 5. 5kw(Servo)|
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours, except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
