|Place of Origin:||Jiangsu, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||35-65 working days|
|Payment Terms:||TT, LC|
|Working Pressure:||≤250T||Filling Depth:||≤100mm|
|Product Name:||Powder Press Machine||Application:||Tablet Press|
|Product Mold:||Multi-cavity Mould||Apply To Shape:||Round,square,or Special-shaped|
|Standard:||BV||Type:||Hydraulic Tablet Press|
cnc universal powder pressing machine,
powder compaction machine

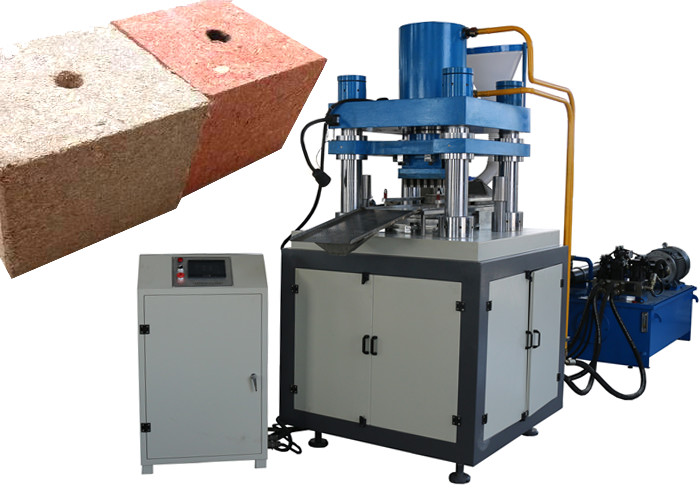

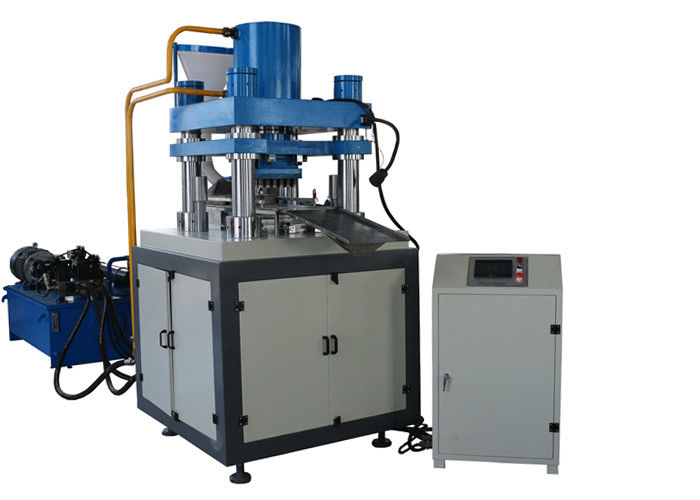

Powder Press Machine
1. All stainless steel structure and integral frame body, frame press has higher precision and rigidity;
2. According to the customer's requirements, the press is equipped with a hopper, a feeding device, and the bath salt explosive ball forming automaton can be automatically fed or manually fed;
3. The bath salt explosion ball molding machine has independent gas path and electrical control system, and the electrical control adopts PLC programmable controller and man-machine interface;
4. The bath salt explosive ball product forming machine is provided with a lower cylinder and an auxiliary cylinder which can be applied to various shapes and various three-color and multi-color products and complex parts with shoulders;
5. The bath salt explosion ball molding machine can complete the floating pressing, and can realize the process actions such as the pull-down type and the ejection-type demolding.
|Production Capacity||3-5molds/min(the actual speed according to product process requirement)|
|Working Pressure||≤250T(1. step-less adjustment 2. can be bidirectional compress)|
|Working Stroke||Up stroke≤250mm,down strokes≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Filling Depth||≤100mm(1. step-less adjustment 2. Customized based on customer’s request. )|
|Product Mould||Customized according to the tablet features(Multi-cavity Mould)|
|Apply to Shape||Round, square, or special-shaped(suitable for a variety of shapes)|
|Motor Power||18. 5kw 22kw(Servo)|
Descriptions and Advantage:
Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology.
Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.
The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor.
Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.
Technology and Advantage:
Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.
Uniform density of the compressed tablet can be ensured through special technology.
Can compress the tablet with different layers and different colors.
Production capacity can be raised many times under certain conditions.
If some abnormal condition occurs,it will stop immediately and minimize its negative effects.
|Agriculture:||Feed block, fertilizer tablets, animal food, animal salt lick|
|Electronics Batteries:||Thermistor, integrated circuit components, carboniferous brush films...|
|Health Products:||calcium, propolis tablets, effervescent tablets, bath salts tablets...|
|Chemical:||disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials...|
1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase suitable machine.
3. Warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
B. We will design, customize and make dies for you.
1. All the machines will be adjusted and tested before shipping.
2. Installing,debugging and training to workers are all offered, after customers receiving our tablet press machine.
