Product Details:
|
|
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Lisen |
| Certification: | BV |
| Model Number: | LS200T |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 35-65 working days |
| Payment Terms: | TT, LC |
| Supply Ability: | 20000/Year |
|
Detail Information |
|||
| Product Name: | Salt Block Press Machine | Application: | Tablet Press |
|---|---|---|---|
| Working Pressure: | ≤200T | Filling Depth: | ≤150mm |
| Product Mold: | Multi-cavity Mould | Apply To Shape: | Round,square,or Special-shaped |
| Standard: | BV | Type: | Hydraulic Tablet Press |
| High Light: | salt block making machine,industrial pill press machine |
||
Product Description

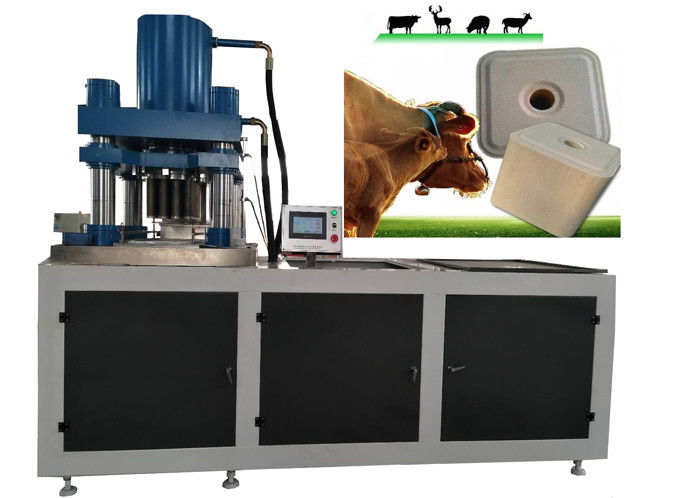

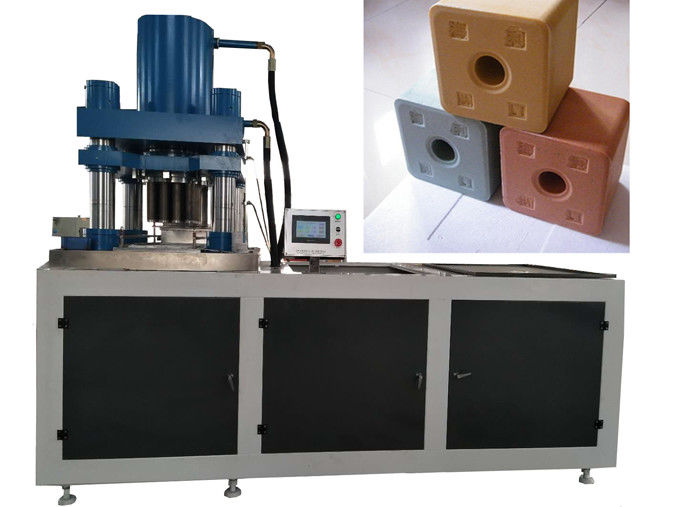

Animal Licking Salt Block Making Machine Salt Block Hydraulic Press Forming Machine Fish Powder Feed Making Machine
This machine can compress granular, powder-like material into a variety of general and special-shaped pieces. It is easy to learn mold replacement and installation. All actions record by the microcomputer PLC control, continuous automatic. We have not only a professional design institute and an experienced production team, but also complete and scientific quality control system. Our products can fully be in conformity with the national and industrial standards.
1. LISEN has been engaged in the press machine many years ago. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each of the incoming material and the finished press machine carefully, so that we can supply the best machine for customers.
3. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer press machine based on your requests with the best quality and the most competitive price. Win-win is our ultimate purpose.
Main Features for Salt Block Press Machine:
| a. Excellent performance, strong adaptability, convenient operation. |
| b. Machine has big pressure, could press big tablet, for small capacity. |
| c. Material filling and depth adjusted. |
| d. Offer installation abroad after-sales service |
| e. Fully automatic PLC control, stable performance |
| f. Machine could press different tablet size and tablet shape by changing mould. |
| g. Offer installation abroad after-sales service |

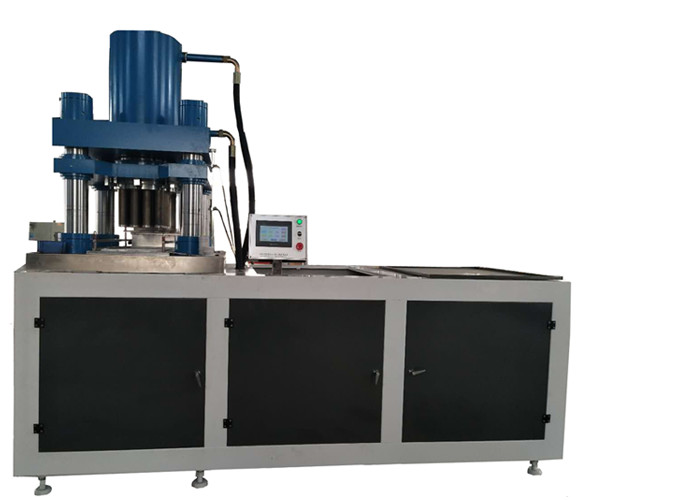

Structures of Animal Salt Block Press Machine
The main machine is composed of upper middle and lower cross beams, hydraulic master
cylinder assembly, jacking floating cylinder, core pulling cylinder, feeding cylinder, rear
feeding belt, high precision mold base and mold, liquid filling system and so on.
| 1.The upper middle and lower beams are connected by columns and nuts. |
| 2.The high-precision formwork is mounted on the lower beam. The four guide columns and two guide columns and the jack-up floating cylinder and the lower beam are connected to form a high-precision pressing structure. The mold is fixed on the upper mold base of the high-precision mold base. |
| 3.The rear feeding belt is fixed behind the upper beam of the equipment, and the material is stored in the hopper above the feeding belt, and is fed by the equipment program timing to the below feeding hopper. |
| 4.The liquid filling system is located on the side of the upper beam to supplement the oil required for the main cylinder. |
Technical Parameters for Salt Block Press Machine:
| Production Capacity | 3-5molds/min(the actual speed according to product process requirement) |
| Working Pressure | ≤200T(1. step-less adjustment 2. can be bidirectional compress) |
| Working Stroke | Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Filling Depth | ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
| Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
| Motor Power | 18. 5kw 22kw(Servo) |
| Weight&Size | Approximately:4800kg 2500mm*1100mm*2100mm(L*W*H) |
Services for Salt Block Press Machine:
| * Documents: | Operational manual with English will be given at the time of dispatch of machine. |
| * Guarantee: | The machine is guaranteed for trouble free performance for a period of 12 months from commissioning. |
| * Service: | After Sale Service for one year, and with spare parts for one year (except human reason broken and easy broken parts). If you need, we can dispatch our engineer to install and test machine in your country. Our quotations will not include these fees. |
FAQ for Salt Block Press Machine:
Why choose us?
11 years golden supplier. 20 years experience of machinery.
How long can we get the goods?
For standard machine, we usually delivery in 3-4 weeks. Customized machine delivery in 30-60 days.
How should I do if meet some trouble while using?
We supply 24 hours online service.
What is your terms of payment?
100% Payment before shipment or as negotiated terms with clients.
