Servo Motor Ceramic Nozzles Powder Forming Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lisen
Certification: BV
Model Number: LS2000T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 35-65 working days
Payment Terms: TT, LC
Supply Ability: 20000/Year
  • Detail Information
  • Product Description

Detail Information

Standard: BV Working Pressure: ≤1000T
Product Mold: Multi-cavity Mould Filling Depth: Filling Depth
Product Name: Ceramic Press Machine Application: Tablet Press
Apply To Shape: Round,square,or Special-shaped Type: Hydraulic Tablet Press
High Light:

Nozzles hydraulic press equipment

,

Servo single punch tablet machine

Product Description

Hydraulic Press Machine For Ceramic Nozzles And Industrial Ceramics / Ceramic Powder Forming Machine



Technical Performance of Ceramic Press Machine:

1.Low energy consumption, high speed, low noise, high efficiency
2.Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch.
3.Activity crossbeam has safety limiter in both up and down directions
4.Equipped with photoelectric protection device, could guarantee the safety of the operation
5.Equipped with photoelectric protection device, could guarantee the safety of the operation
6.Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping and time-delaying.
Characteristics of Ceramic Press Machine:
▪ High reliability
The structure design is reasonable, the main components are subjected to finite element analysis, and the material grade and heat treatment process are strictly controlled. The rigidity of the equipment body is good and durable. Integrated hydraulic control system with cartridge valve for reliable operation, long life and low hydraulic impact

▪ High quality electrical system
Independent electrical control system, reliable operation, intuitive operation and convenient maintenance. All use high reliability electrical components.

▪ Fully functional equipment
a) Two forming processes of constant pressure and fixed stroke can be realized, and the trigger pressure and trigger stroke can be adjusted within the range.

b) With pressure keeping delay function, the delay time is adjustable.The operation is intuitive and flexible.

c) Standard safety light curtain for enhanced operational safety. Automatic feeding and reclaiming devices can be made according to the workpiece to realize automatic uninterrupted production.


Reasonable Structure Design:

1. energy saving and environmental protection

2. small space occupation

3. superior performance

4. simple operation

5. easy maintenance and so on.

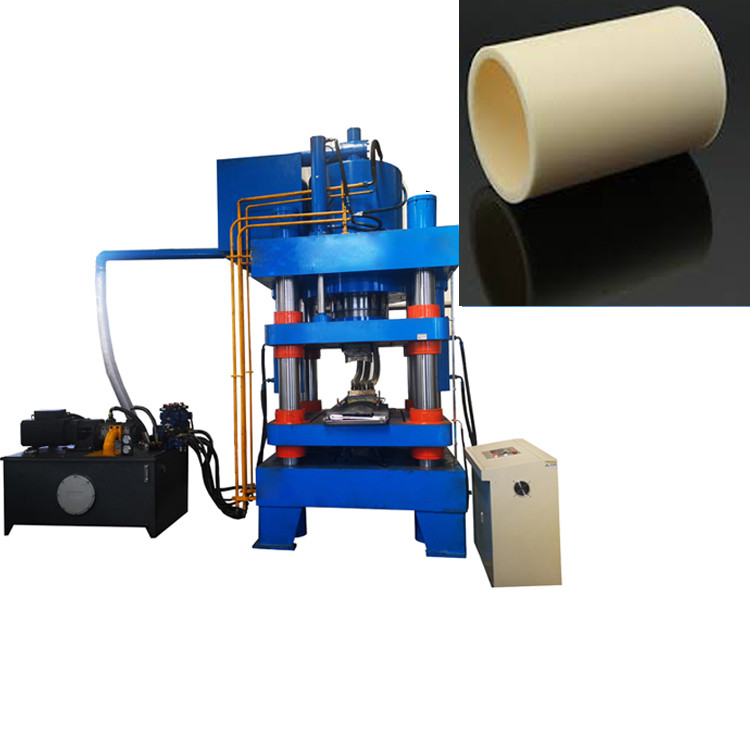

Servo Motor Ceramic Nozzles Powder Forming Machine 0
Specification of Ceramic Press Machine:
Production Capacity 2-4molds/min(the actual speed according to product process requirement)
Working Pressure ≤1000T(1.step-less adjustment 2. can be bidirectional compress)
Working Stroke Upstroke ≤ 800mm, down strokes≤300mm(1. step-less adjustment 2.Customized based on customer’s request.)
Filling Depth ≤400mm(1. step-less adjustment 2. Customized based on customer’s request.)
Product Mould Customized according to the tablet features(Multi-cavity Mould)
Apply to Shape Round, square, or special-shaped(suitable for a variety of shapes)
Motor Power 37kw 50kw(Servo)
Weight&Size Approximately:25000kg 4000mm*1200mm*3000mm(L*W*H)



Brief Introduction of Ceramic Press Machine:

- Fully CNC Control Design: Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology.

- Fully Intelligent Operation Design: Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.

- Fully-automatic Material Filling Design: The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor.

- Isolated Hydraulic Station Design: Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.



Ceramic Press Machine Main Features:

a. Excellent performance, strong adaptability, convenient operation.
b. The machine has big pressure, could press a big tablets, for small capacity.
c. Material filling and depth adjusted.

d. Offer installation abroad after-sales service
e. Fully automatic PLC control, stable performance

f. The machine could press different tablet sizes and tablet shapes by changing the mould.

g. Offer installation abroad after-sales service

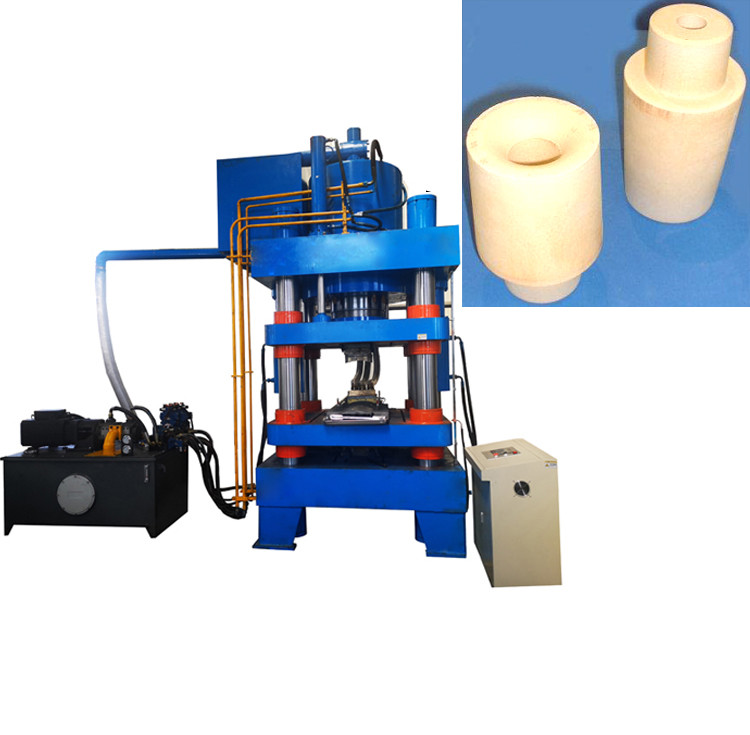

Servo Motor Ceramic Nozzles Powder Forming Machine 1

Company Information

Changzhou Jintan Lishen Machinery Co., Ltd. is a professional manufacturer and supplier of tablet press machinery and equipment in China.

We have a well-experienced team to manufacture tablet press machine and equipment and a professional design institute. With rich experiences in tablet block machinery and equipment field and numbers of professional engineers, we have designed and developed tablet block machinery in different tonnage.


Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
In Lisen, you can get your desired tablet block machine with the best price and good quality. Welcome your inquiries from all over the world.



This hydraulic press machine is designed to make a tablet or block in different shapes from different powder materials.




Servo Motor Ceramic Nozzles Powder Forming Machine 2



FAQ

Q1: Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.

Q2: Is engineer available to serve overseas?

Yes, but the travel fee and daily salary are paid by the customer. So in order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3: How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can come check quality by yourself or your contacts in China.
Q4: How can I know your machine is designed for my product?
If you don't mind, you can send us samples and we will test on our press machines. During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.

Q5: How about warranty and spare parts?

We provide 1-3 years warranty and enough spare parts for the machine, and most of the parts can be found in local market also, you can get easily from us.
Q6: How to contact you?
A: Please send an inquiry and we will contact you within 24 hours.
